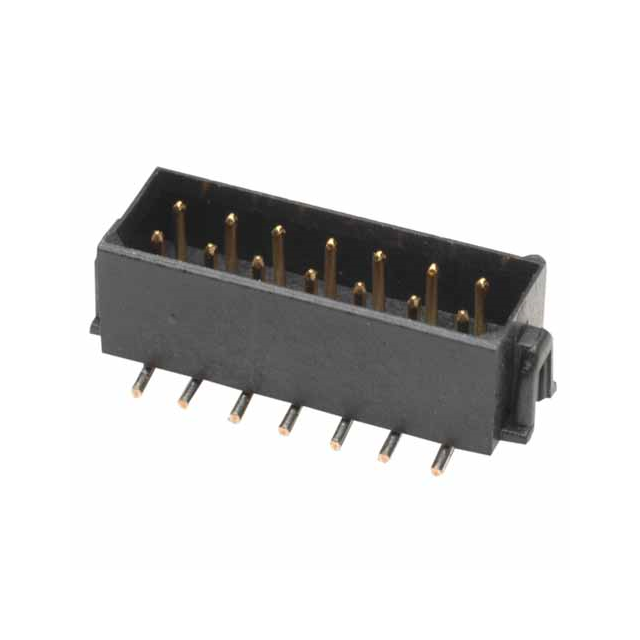

M80-8261042P - M80-8260622

M80-8261042P

Active
Harwin Inc.

5+5 POS. MALE DIL VERTICAL SMT CONN. NO LATCHES (P+P) ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatamate range: signal connectors (HRi)Datasheet+1
M80-8261042P - M80-8260622

M80-8261042P

Active
Harwin Inc.

5+5 POS. MALE DIL VERTICAL SMT CONN. NO LATCHES (P+P) ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatamate range: signal connectors (HRi)Datasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationM80-8261042P
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thickness - Mating29.5 Áin
Contact Finish Thickness - Mating0.75 Ám
Contact Finish Thickness - Post3 µm
Contact Finish Thickness - Post118.1 µin
Contact MaterialPhosphor Bronze
Contact ShapeCircular
Contact TypeMale Pin
Current Rating (Amps)2.2 A
Fastening TypeLatch Holder
FeaturesPick and Place
Insulation ColorBlack
Insulation Height0.205 in
Insulation Height5.2 mm
Insulation MaterialPolyphenylene Sulfide (PPS), Glass Filled
Mated Stacking Heights7.85 mm, 10.5 mm, 8.45 mm, 14.25 mm
Material Flammability RatingUL94 V-0
Mounting TypeSurface Mount
Number of Positions10
Number of Positions LoadedAll
Number of Rows2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pitch - Mating [x]0.079 in
Pitch - Mating [x]2 mm
Row Spacing - Mating0.079 in
Row Spacing - Mating2 mm
ShroudingShrouded - 4 Wall
StyleBoard to Board, Cable
TerminationSolder
Voltage Rating800 V

M80-826 Series

PartContact TypeCurrent Rating (Amps)ShroudingInsulation HeightInsulation HeightMated Stacking HeightsContact MaterialContact Finish - MatingNumber of Positions LoadedFastening TypeInsulation ColorNumber of PositionsPitch - Mating [x]Pitch - Mating [x]Row Spacing - MatingRow Spacing - MatingConnector TypeOperating Temperature [Min]Operating Temperature [Max]Contact Finish Thickness - PostContact Finish Thickness - PostInsulation MaterialMaterial Flammability RatingContact Finish Thickness - MatingContact Finish Thickness - MatingMounting TypeVoltage RatingFeaturesStyleTerminationContact Finish - PostContact ShapeNumber of RowsNumber of PositionsContact Finish Thickness - Post
Harwin Inc.
M80-8261242P
Male Pin
2.2 A
Shrouded - 4 Wall
0.205 in
5.2 mm
7.85 mm
8.45 mm
10.5 mm
14.25 mm
Phosphor Bronze
Gold
All
Latch Holder
Black
12
0.079 in
2 mm
0.079 in
2 mm
Header
-55 °C
125 °C
3 µm
118.1 µin
Polyphenylene Sulfide (PPS)
Glass Filled
UL94 V-0
29.5 Áin
0.75 Ám
Surface Mount
800 V
Pick and Place
Board to Board
Cable
Solder
Tin
Circular
2
Harwin Inc.
M80-8261642
Male Pin
2.2 A
Shrouded - 4 Wall
0.205 in
5.2 mm
7.85 mm
8.45 mm
10.5 mm
14.25 mm
Phosphor Bronze
Gold
All
Latch Holder
Black
0.079 in
2 mm
0.079 in
2 mm
Plug
-55 °C
125 °C
3 µm
118.1 µin
Polyphenylene Sulfide (PPS)
Glass Filled
UL94 V-0
29.5 Áin
0.75 Ám
Surface Mount
800 V
Board to Board
Cable
Solder
Tin
Circular
2
16
Harwin Inc.
M80-8261445
Male Pin
2.2 A
Shrouded - 4 Wall
0.205 in
5.2 mm
7.85 mm
8.45 mm
10.5 mm
14.25 mm
Phosphor Bronze
Gold
All
Latch Holder
Black
14
0.079 in
2 mm
0.079 in
2 mm
Header
-55 °C
125 °C
Polyphenylene Sulfide (PPS)
Glass Filled
UL94 V-0
29.5 Áin
0.75 Ám
Surface Mount
800 V
Board to Board
Cable
Solder
Gold
Circular
2
Harwin Inc.
M80-8261042P
Male Pin
2.2 A
Shrouded - 4 Wall
0.205 in
5.2 mm
7.85 mm
8.45 mm
10.5 mm
14.25 mm
Phosphor Bronze
Gold
All
Latch Holder
Black
10
0.079 in
2 mm
0.079 in
2 mm
Header
-55 °C
125 °C
3 µm
118.1 µin
Polyphenylene Sulfide (PPS)
Glass Filled
UL94 V-0
29.5 Áin
0.75 Ám
Surface Mount
800 V
Pick and Place
Board to Board
Cable
Solder
Tin
Circular
2
Harwin Inc.
M80-8260642
Male Pin
2.2 A
Shrouded - 4 Wall
0.205 in
5.2 mm
7.85 mm
8.45 mm
10.5 mm
14.25 mm
Phosphor Bronze
Gold
All
Latch Holder
Black
6
0.079 in
2 mm
0.079 in
2 mm
Plug
-55 °C
125 °C
3 µm
118.1 µin
Polyphenylene Sulfide (PPS)
Glass Filled
UL94 V-0
29.5 Áin
0.75 Ám
Surface Mount
800 V
Board to Board
Cable
Solder
Tin
Circular
2
Harwin Inc.
M80-8260622P
Male Pin
2.2 A
Shrouded - 4 Wall
0.205 in
5.2 mm
7.93 mm
8.53 mm
Phosphor Bronze
Gold
All
Latch Holder
Black
6
0.079 in
2 mm
0.079 in
2 mm
Header
-55 °C
125 °C
0.3 µm
12 µin
Polyphenylene Sulfide (PPS)
Glass Filled
UL94 V-0
29.5 Áin
0.75 Ám
Surface Mount
800 VAC
Board to Board
Cable
Solder
Tin-Lead
Circular
2
Harwin Inc.
M80-8260442P
Male Pin
2.2 A
Shrouded - 4 Wall
0.205 in
5.2 mm
7.85 mm
8.45 mm
10.5 mm
14.25 mm
Phosphor Bronze
Gold
All
Latch Holder
Black
4
0.079 in
2 mm
0.079 in
2 mm
Header
-55 °C
125 °C
3 µm
118.1 µin
Polyphenylene Sulfide (PPS)
Glass Filled
UL94 V-0
29.5 Áin
0.75 Ám
Surface Mount
800 V
Pick and Place
Board to Board
Cable
Solder
Tin
Circular
2
Harwin Inc.
M80-8262042P
Male Pin
2.2 A
Shrouded - 4 Wall
0.205 in
5.2 mm
7.85 mm
8.45 mm
10.5 mm
14.25 mm
Phosphor Bronze
Gold
All
Latch Holder
Black
20
0.079 in
2 mm
0.079 in
2 mm
Header
-55 °C
125 °C
3 µm
118.1 µin
Polyphenylene Sulfide (PPS)
Glass Filled
UL94 V-0
29.5 Áin
0.75 Ám
Surface Mount
800 V
Pick and Place
Board to Board
Cable
Solder
Tin
Circular
2
Harwin Inc.
M80-8262642
Male Pin
2.2 A
Shrouded - 4 Wall
0.205 in
5.2 mm
7.85 mm
8.45 mm
10.5 mm
14.25 mm
Phosphor Bronze
Gold
All
Latch Holder
Black
26
0.079 in
2 mm
0.079 in
2 mm
Plug
-55 °C
125 °C
3 µm
118.1 µin
Polyphenylene Sulfide (PPS)
Glass Filled
UL94 V-0
29.5 Áin
0.75 Ám
Surface Mount
800 V
Board to Board
Cable
Solder
Tin
Circular
2
Harwin Inc.
M80-8261845
Male Pin
2.2 A
Shrouded - 4 Wall
0.205 in
5.2 mm
7.85 mm
8.45 mm
10.5 mm
14.25 mm
Phosphor Bronze
Gold
All
Latch Holder
Black
18
0.079 in
2 mm
0.079 in
2 mm
Plug
-55 °C
125 °C
0.75 µm
Polyphenylene Sulfide (PPS)
Glass Filled
UL94 V-0
29.5 Áin
0.75 Ám
Surface Mount
800 V
Board to Board
Cable
Solder
Gold
Circular
2
29.5 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 504$ 3.38
NewarkEach 50$ 5.21
100$ 4.86
250$ 4.49
500$ 4.15
1000$ 3.80
2500$ 3.43

Description

General part information

M80-826 Series

Connector Header Surface Mount 10 position 0.079" (2.00mm)
