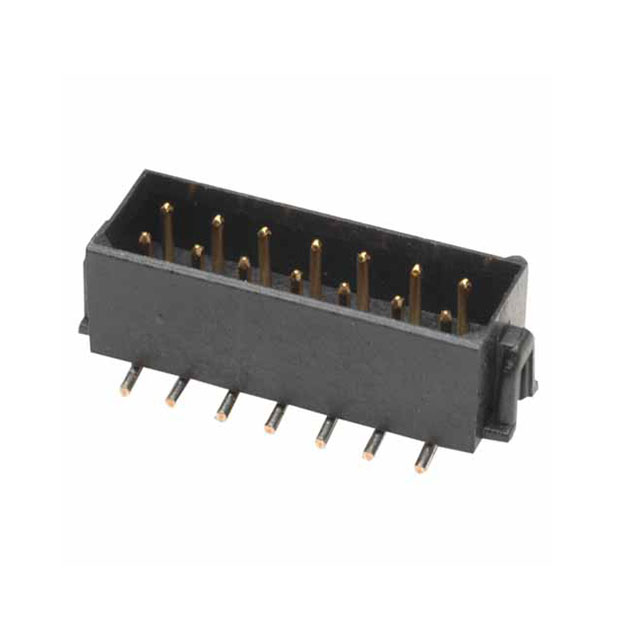

M80-8262642

Active

Harwin Inc.

HEADER CONNECTOR,PCB MOUNT,RECEPT,26 CONTACTS,PIN,0.079 PITCH,SURFACE MOUNT TERMINAL,GUIDE SLOT ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80, M83 Series Spec Sheet Datasheet +2

M80-8262642

Active

Harwin Inc.

HEADER CONNECTOR,PCB MOUNT,RECEPT,26 CONTACTS,PIN,0.079 PITCH,SURFACE MOUNT TERMINAL,GUIDE SLOT ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM80, M83 Series Spec Sheet Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-8262642

Connector Type	Plug
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Finish Thickness - Post	3 µm
Contact Finish Thickness - Post	118.1 µin
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.2 A
Fastening Type	Latch Holder
Insulation Color	Black
Insulation Height	0.205 in
Insulation Height	5.2 mm
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mated Stacking Heights	7.85 mm, 10.5 mm, 8.45 mm, 14.25 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	800 V

M80-826 Series

Part	Contact Type	Current Rating (Amps)	Shrouding	Insulation Height	Insulation Height	Mated Stacking Heights	Contact Material	Contact Finish - Mating	Number of Positions Loaded	Fastening Type	Insulation Color	Number of Positions	Pitch - Mating [x]	Pitch - Mating [x]	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Voltage Rating	Features	Style	Termination	Contact Finish - Post	Contact Shape	Number of Rows	Number of Positions	Contact Finish Thickness - Post
Harwin Inc. M80-8261242P	Male Pin	2.2 A	Shrouded - 4 Wall	0.205 in	5.2 mm	7.85 mm 8.45 mm 10.5 mm 14.25 mm	Phosphor Bronze	Gold	All	Latch Holder	Black	12	0.079 in	2 mm	0.079 in	2 mm	Header	-55 °C	125 °C	3 µm	118.1 µin	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	29.5 Áin	0.75 Ám	Surface Mount	800 V	Pick and Place	Board to Board Cable	Solder	Tin	Circular	2
Harwin Inc. M80-8261642	Male Pin	2.2 A	Shrouded - 4 Wall	0.205 in	5.2 mm	7.85 mm 8.45 mm 10.5 mm 14.25 mm	Phosphor Bronze	Gold	All	Latch Holder	Black		0.079 in	2 mm	0.079 in	2 mm	Plug	-55 °C	125 °C	3 µm	118.1 µin	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	29.5 Áin	0.75 Ám	Surface Mount	800 V		Board to Board Cable	Solder	Tin	Circular	2	16
Harwin Inc. M80-8261445	Male Pin	2.2 A	Shrouded - 4 Wall	0.205 in	5.2 mm	7.85 mm 8.45 mm 10.5 mm 14.25 mm	Phosphor Bronze	Gold	All	Latch Holder	Black	14	0.079 in	2 mm	0.079 in	2 mm	Header	-55 °C	125 °C			Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	29.5 Áin	0.75 Ám	Surface Mount	800 V		Board to Board Cable	Solder	Gold	Circular	2
Harwin Inc. M80-8261042P	Male Pin	2.2 A	Shrouded - 4 Wall	0.205 in	5.2 mm	7.85 mm 8.45 mm 10.5 mm 14.25 mm	Phosphor Bronze	Gold	All	Latch Holder	Black	10	0.079 in	2 mm	0.079 in	2 mm	Header	-55 °C	125 °C	3 µm	118.1 µin	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	29.5 Áin	0.75 Ám	Surface Mount	800 V	Pick and Place	Board to Board Cable	Solder	Tin	Circular	2
Harwin Inc. M80-8260642	Male Pin	2.2 A	Shrouded - 4 Wall	0.205 in	5.2 mm	7.85 mm 8.45 mm 10.5 mm 14.25 mm	Phosphor Bronze	Gold	All	Latch Holder	Black	6	0.079 in	2 mm	0.079 in	2 mm	Plug	-55 °C	125 °C	3 µm	118.1 µin	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	29.5 Áin	0.75 Ám	Surface Mount	800 V		Board to Board Cable	Solder	Tin	Circular	2
Harwin Inc. M80-8260622P	Male Pin	2.2 A	Shrouded - 4 Wall	0.205 in	5.2 mm	7.93 mm 8.53 mm	Phosphor Bronze	Gold	All	Latch Holder	Black	6	0.079 in	2 mm	0.079 in	2 mm	Header	-55 °C	125 °C	0.3 µm	12 µin	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	29.5 Áin	0.75 Ám	Surface Mount	800 VAC		Board to Board Cable	Solder	Tin-Lead	Circular	2
Harwin Inc. M80-8260442P	Male Pin	2.2 A	Shrouded - 4 Wall	0.205 in	5.2 mm	7.85 mm 8.45 mm 10.5 mm 14.25 mm	Phosphor Bronze	Gold	All	Latch Holder	Black	4	0.079 in	2 mm	0.079 in	2 mm	Header	-55 °C	125 °C	3 µm	118.1 µin	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	29.5 Áin	0.75 Ám	Surface Mount	800 V	Pick and Place	Board to Board Cable	Solder	Tin	Circular	2
Harwin Inc. M80-8262042P	Male Pin	2.2 A	Shrouded - 4 Wall	0.205 in	5.2 mm	7.85 mm 8.45 mm 10.5 mm 14.25 mm	Phosphor Bronze	Gold	All	Latch Holder	Black	20	0.079 in	2 mm	0.079 in	2 mm	Header	-55 °C	125 °C	3 µm	118.1 µin	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	29.5 Áin	0.75 Ám	Surface Mount	800 V	Pick and Place	Board to Board Cable	Solder	Tin	Circular	2
Harwin Inc. M80-8262642	Male Pin	2.2 A	Shrouded - 4 Wall	0.205 in	5.2 mm	7.85 mm 8.45 mm 10.5 mm 14.25 mm	Phosphor Bronze	Gold	All	Latch Holder	Black	26	0.079 in	2 mm	0.079 in	2 mm	Plug	-55 °C	125 °C	3 µm	118.1 µin	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	29.5 Áin	0.75 Ám	Surface Mount	800 V		Board to Board Cable	Solder	Tin	Circular	2
Harwin Inc. M80-8261845	Male Pin	2.2 A	Shrouded - 4 Wall	0.205 in	5.2 mm	7.85 mm 8.45 mm 10.5 mm 14.25 mm	Phosphor Bronze	Gold	All	Latch Holder	Black	18	0.079 in	2 mm	0.079 in	2 mm	Plug	-55 °C	125 °C	0.75 µm		Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	29.5 Áin	0.75 Ám	Surface Mount	800 V		Board to Board Cable	Solder	Gold	Circular	2		29.5 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 7.25
		16	$ 6.55
		104	$ 5.74
		504	$ 4.83
		1000	$ 4.23
Newark	Each	100	$ 6.28
		250	$ 5.80
		500	$ 5.36
		1000	$ 4.91
		2500	$ 4.43

Description

General part information

M80-826 Series

Connector Header Surface Mount 26 position 0.079" (2.00mm)
