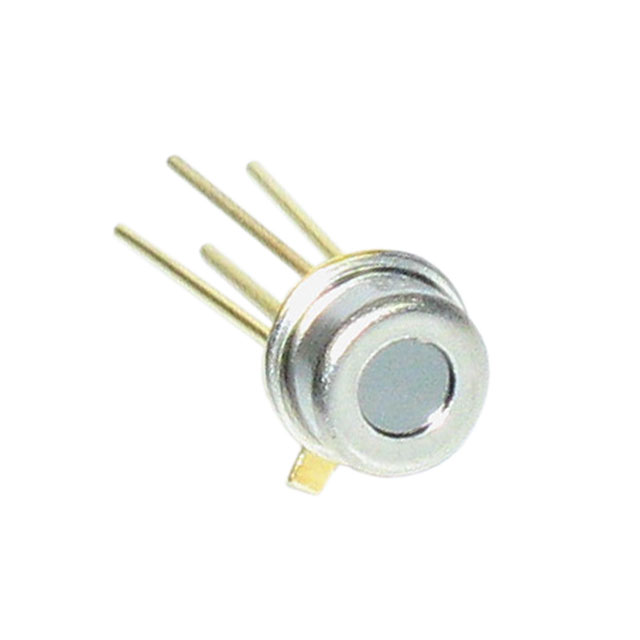

G-TPCO-031

Obsolete

TE Connectivity Measurement Specialties

SENSOR ANALOG REMOTE TO18

Search across all available documentation for this part.

Obsolete

TE Connectivity Measurement Specialties

SENSOR ANALOG REMOTE TO18

Technical Specifications

Parameters and characteristics for this part

Specification	G-TPCO-031

Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Output Type	Analog Voltage
Package / Case	TO-18 small
Sensing Temperature - Remote [Max]	100 °C
Sensing Temperature - Remote [Min]	0 °C
Sensor Type	Remote, Analog
Supplier Device Package	TO-18

Part	Mounting Type	Sensing Temperature - Local [Min]	Sensing Temperature - Local [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Sensing Temperature - Remote [Min]	Sensing Temperature - Remote [Max]	Output Type	Package / Case	Accuracy - Highest (Lowest)	Test Condition [Min]	Test Condition [Max]	Test Condition	Resolution	Supplier Device Package	Sensor Type
TE Connectivity Measurement Specialties G-TPMO-022	Through Hole	0 °C	85 °C	3.6 V	2.6 V	0 °C	85 °C	0 °C	300 °C	SPI	Module	2 °C 4 °C	15 °C	35 °C
TE Connectivity Measurement Specialties G-TPMO-014	Through Hole	0 °C	85 °C	6 V	4 V	-10 °C	85 °C	-20 °C	120 °C	SPI	Module	2 °C 4 °C			±5°C (25°C)	8 b	Module
TE Connectivity Measurement Specialties G-TPMO-101	Through Hole	-20 °C	85 °C	3.6 V	1.68 V	-20 C	85 °C	0 °C	100 °C	I2C	TO-205AA TO-5-4 Metal Can Variant	1 °C	15 °C	35 °C		16 b	TO-5
TE Connectivity Measurement Specialties G-TPCO-032	Through Hole					-20 C	85 °C	0 °C	100 °C	Analog Voltage	TO-18 small						TO-5	Analog Remote
TE Connectivity Measurement Specialties G-TPCO-031	Through Hole					-20 C	85 °C	0 °C	100 °C	Analog Voltage	TO-18 small						TO-18	Analog Remote

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Temperature Sensor Analog, Remote TO-18
