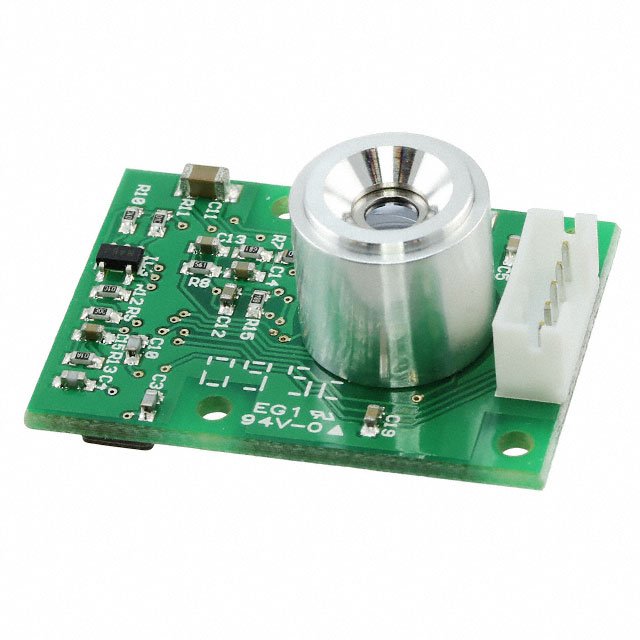

G-TPMO-014

Obsolete

TE Connectivity Measurement Specialties

SENSOR DIGITAL 0C-85C MODULE

Search across all available documentation for this part.

Obsolete

TE Connectivity Measurement Specialties

SENSOR DIGITAL 0C-85C MODULE

Technical Specifications

Parameters and characteristics for this part

Specification	G-TPMO-014

Accuracy - Highest (Lowest)	4 °C, 2 °C
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-10 °C
Output Type	SPI
Package / Case	Module
Resolution	8 b
Sensing Temperature - Local [Max]	85 °C
Sensing Temperature - Local [Min]	0 °C
Sensing Temperature - Remote [Max]	120 °C
Sensing Temperature - Remote [Min]	-20 °C
Supplier Device Package	Module
Test Condition	±5°C (25°C)
Voltage - Supply [Max]	6 V
Voltage - Supply [Min]	4 V

Part	Mounting Type	Sensing Temperature - Local [Min]	Sensing Temperature - Local [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Sensing Temperature - Remote [Min]	Sensing Temperature - Remote [Max]	Output Type	Package / Case	Accuracy - Highest (Lowest)	Test Condition [Min]	Test Condition [Max]	Test Condition	Resolution	Supplier Device Package	Sensor Type
TE Connectivity Measurement Specialties G-TPMO-022	Through Hole	0 °C	85 °C	3.6 V	2.6 V	0 °C	85 °C	0 °C	300 °C	SPI	Module	2 °C 4 °C	15 °C	35 °C
TE Connectivity Measurement Specialties G-TPMO-014	Through Hole	0 °C	85 °C	6 V	4 V	-10 °C	85 °C	-20 °C	120 °C	SPI	Module	2 °C 4 °C			±5°C (25°C)	8 b	Module
TE Connectivity Measurement Specialties G-TPMO-101	Through Hole	-20 °C	85 °C	3.6 V	1.68 V	-20 C	85 °C	0 °C	100 °C	I2C	TO-205AA TO-5-4 Metal Can Variant	1 °C	15 °C	35 °C		16 b	TO-5
TE Connectivity Measurement Specialties G-TPCO-032	Through Hole					-20 C	85 °C	0 °C	100 °C	Analog Voltage	TO-18 small						TO-5	Analog Remote
TE Connectivity Measurement Specialties G-TPCO-031	Through Hole					-20 C	85 °C	0 °C	100 °C	Analog Voltage	TO-18 small						TO-18	Analog Remote

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Temperature Sensor Digital, Local/Remote 0°C ~ 85°C 8 b Module
