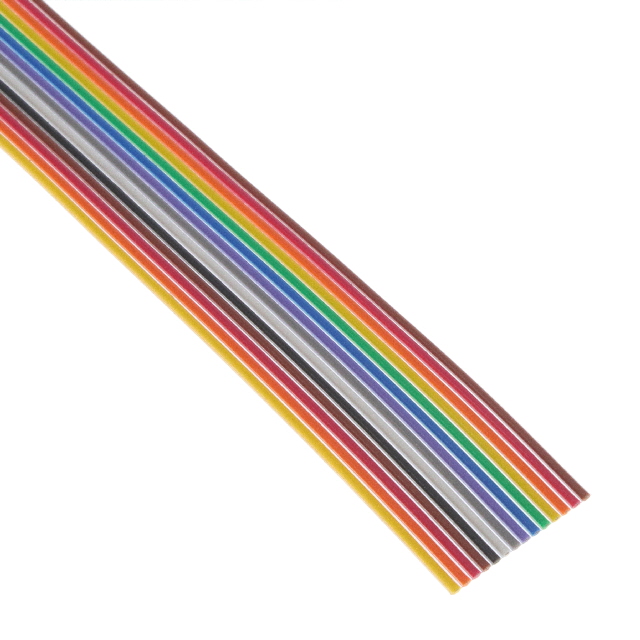

3811/14 300

Active

3M (TC)

CBL RIBN 14COND 0.05 MULTIPLE 1'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCables & Accessories Selection Guide Datasheet

3811/14 300

Active

3M (TC)

CBL RIBN 14COND 0.05 MULTIPLE 1'

Deep-Dive with AI

DocumentsCables & Accessories Selection Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3811/14 300

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand	34 AWG, 7 Strands
Features	Zippable
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Multiple
Length	91.44 m, 7.62 m, 304.8 mm
Length	300 ft, 25 ft, 1 ft
Length [x]	100 ft
Length [x]	30.48 m
Number of Conductors	14
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 20462
Ribbon Thickness	0.042 in
Ribbon Thickness	1.07 mm
Ribbon Width [x]	0.7 in
Ribbon Width [x]	17.78 mm
Shielding	Unshielded
Voltage	300 V
Wire Gauge	26 AWG

3811 Series

Part	Length	Length	Wire Gauge	Ribbon Width	Ribbon Width	Number of Conductors	Insulation Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	Ribbon Thickness	Ribbon Thickness	Conductor Material	Length [x]	Length [x]	Cable Type	Features	Conductor Strand	Ratings	Pitch [x]	Pitch [x]	Shielding	Jacket (Insulation) Material	Jacket Color	Ribbon Width [y]	Ribbon Width [y]	Ribbon Width [custom]	Ribbon Width [custom]	Ribbon Width [x]	Ribbon Width [x]
3M (TC) 3811/26 100	1 ft 50 ft	15.24 m 304.8 mm	26 AWG	1.3 "	33.02 mm	26	10 GOhm	-20 C	105 ░C	300 V	0.042 in	1.07 mm	Copper Tinned	3.05 m	10 ft	Flat Cable	Zippable	7 Strands 34 AWG	UL Style 20462	0.05 in	1.27 mm	Unshielded	Poly-Vinyl Chloride (PVC)	Multiple
3M (TC) 3811/37 300'	300 ft	91.44 m	26 AWG	1.85 in	46.99 mm	37	10 GOhm	-20 C	105 ░C	300 V	0.042 in	1.07 mm	Copper Tinned			Flat Cable	Zippable	7 Strands 34 AWG	UL Style 20462	0.05 in	1.27 mm	Unshielded	Poly-Vinyl Chloride (PVC)	Multiple
3M (TC) 3811/50 100	25 ft 50 ft	7.62 m 15.24 m	26 AWG	2.5 "	63.5 mm	50	10 GOhm	-20 C	105 ░C	300 V	0.042 in	1.07 mm	Copper Tinned	3.05 m 30.48 m	10 ft 100 ft	Flat Cable	Zippable	7 Strands 34 AWG	UL Style 20462	0.05 in	1.27 mm	Unshielded	Poly-Vinyl Chloride (PVC)	Multiple
3M (TC) 3811/64	300 ft	91.44 m	26 AWG			64	10 GOhm	-20 C	105 ░C	300 V	0.042 in	1.07 mm	Copper Tinned			Flat Cable	Zippable	7 Strands 34 AWG	UL Style 20462	0.05 in	1.27 mm	Unshielded	Poly-Vinyl Chloride (PVC)	Multiple	81.28 mm	3.2 in
3M (TC) 3811/24 300	300 ft	91.44 m	26 AWG			24	10 GOhm	-20 C	105 ░C	300 V	0.042 in	1.07 mm	Copper Tinned			Flat Cable	Zippable	7 Strands 34 AWG	UL Style 20462	0.05 in	1.27 mm	Unshielded	Poly-Vinyl Chloride (PVC)	Multiple	30.48 mm	1.2 in
3M (TC) 3811/37 100	25 ft	7.62 m	26 AWG	1.85 in	46.99 mm	37	10 GOhm	-20 C	105 ░C	300 V	0.042 in	1.07 mm	Copper Tinned			Flat Cable	Zippable	7 Strands 34 AWG	UL Style 20462	0.05 in	1.27 mm	Unshielded	Poly-Vinyl Chloride (PVC)	Multiple
3M (TC) 3811/10 300	25 ft 50 ft	7.62 m 15.24 m	26 AWG			10	10 GOhm	-20 C	105 ░C	300 V	0.042 in	1.07 mm	Copper Tinned	3.05 m 30.48 m	10 ft 100 ft	Flat Cable	Zippable	7 Strands 34 AWG	UL Style 20462	0.05 in	1.27 mm	Unshielded	Poly-Vinyl Chloride (PVC)	Multiple			0.5 "	12.7 mm
3M (TC) 3811/15 100			26 AWG	0.75 "	19.05 mm	15	10 GOhm	-20 C	105 ░C	300 V	0.042 in	1.07 mm	Copper Tinned	30.48 m	100 ft	Flat Cable	Zippable	7 Strands 34 AWG	UL Style 20462	0.05 in	1.27 mm	Unshielded	Poly-Vinyl Chloride (PVC)	Multiple
3M (TC) 3811/18 100			26 AWG	0.9 in	22.86 mm	18	10 GOhm	-20 C	105 ░C	300 V	0.042 in	1.07 mm	Copper Tinned	30.48 m	100 ft	Flat Cable	Zippable	7 Strands 34 AWG	UL Style 20462	0.05 in	1.27 mm	Unshielded	Poly-Vinyl Chloride (PVC)	Multiple
3M (TC) 3811/14 300	1 ft 25 ft 300 ft	7.62 m 91.44 m 304.8 mm	26 AWG			14	10 GOhm	-20 C	105 ░C	300 V	0.042 in	1.07 mm	Copper Tinned	30.48 m	100 ft	Flat Cable	Zippable	7 Strands 34 AWG	UL Style 20462	0.05 in	1.27 mm	Unshielded	Poly-Vinyl Chloride (PVC)	Multiple					0.7 in	17.78 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.16
		1	$ 118.92
		1	$ 1.69
		2	$ 1.53
		3	$ 1.45
		5	$ 94.88
		5	$ 1.35
		5	$ 25.57
		7	$ 1.29
		10	$ 23.20
		10	$ 1.23
		10	$ 85.87
		25	$ 20.39
		25	$ 75.56
		25	$ 1.08
		50	$ 0.97
		50	$ 68.26
		50	$ 18.45
		100	$ 16.73
		100	$ 0.88
		100	$ 62.25
	Spool	1	$ 308.37
		5	$ 245.21
		10	$ 222.92
		25	$ 195.67
		50	$ 161.00

Description

General part information

3811 Series

Flat Ribbon Cable Multiple 14 Conductors 0.050" (1.27mm) Flat Cable 1.00' (304.80mm)

Documents

Technical documentation and resources

Cables & Accessories Selection Guide

Datasheet
