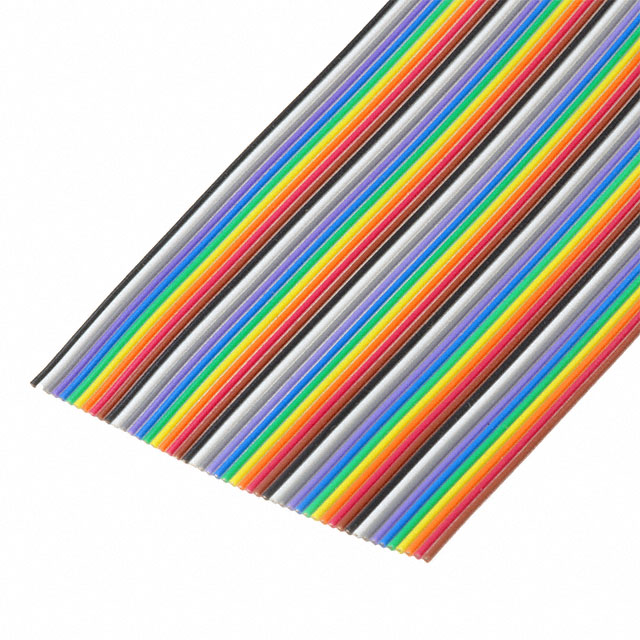

3811/50 100
Active3M (TC)
CBL RIBN 50COND 0.05 MULT 100'
Deep-Dive with AI
Search across all available documentation for this part.
3811/50 100
Active3M (TC)
CBL RIBN 50COND 0.05 MULT 100'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3811/50 100 |
|---|---|
| Cable Type | Flat Cable |
| Conductor Material | Copper, Tinned |
| Conductor Strand | 34 AWG, 7 Strands |
| Features | Zippable |
| Insulation Resistance | 10 GOhm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Multiple |
| Length | 25 ft, 50 ft |
| Length | 7.62 m, 15.24 m |
| Length [x] | 100 ft, 10 ft |
| Length [x] | 30.48 m, 3.05 m |
| Number of Conductors | 50 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
| Ratings | UL Style 20462 |
| Ribbon Thickness | 0.042 in |
| Ribbon Thickness | 1.07 mm |
| Ribbon Width | 63.5 mm |
| Ribbon Width | 2.5 " |
| Shielding | Unshielded |
| Voltage | 300 V |
| Wire Gauge | 26 AWG |
3811 Series
| Part | Length | Length | Wire Gauge | Ribbon Width | Ribbon Width | Number of Conductors | Insulation Resistance | Operating Temperature [Min] | Operating Temperature [Max] | Voltage | Ribbon Thickness | Ribbon Thickness | Conductor Material | Length [x] | Length [x] | Cable Type | Features | Conductor Strand | Ratings | Pitch [x] | Pitch [x] | Shielding | Jacket (Insulation) Material | Jacket Color | Ribbon Width [y] | Ribbon Width [y] | Ribbon Width [custom] | Ribbon Width [custom] | Ribbon Width [x] | Ribbon Width [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | 1 ft 50 ft | 15.24 m 304.8 mm | 26 AWG | 1.3 " | 33.02 mm | 26 | 10 GOhm | -20 C | 105 ░C | 300 V | 0.042 in | 1.07 mm | Copper Tinned | 3.05 m | 10 ft | Flat Cable | Zippable | 7 Strands 34 AWG | UL Style 20462 | 0.05 in | 1.27 mm | Unshielded | Poly-Vinyl Chloride (PVC) | Multiple | ||||||
3M (TC) | 300 ft | 91.44 m | 26 AWG | 1.85 in | 46.99 mm | 37 | 10 GOhm | -20 C | 105 ░C | 300 V | 0.042 in | 1.07 mm | Copper Tinned | Flat Cable | Zippable | 7 Strands 34 AWG | UL Style 20462 | 0.05 in | 1.27 mm | Unshielded | Poly-Vinyl Chloride (PVC) | Multiple | ||||||||
3M (TC) | 25 ft 50 ft | 7.62 m 15.24 m | 26 AWG | 2.5 " | 63.5 mm | 50 | 10 GOhm | -20 C | 105 ░C | 300 V | 0.042 in | 1.07 mm | Copper Tinned | 3.05 m 30.48 m | 10 ft 100 ft | Flat Cable | Zippable | 7 Strands 34 AWG | UL Style 20462 | 0.05 in | 1.27 mm | Unshielded | Poly-Vinyl Chloride (PVC) | Multiple | ||||||
3M (TC) | 300 ft | 91.44 m | 26 AWG | 64 | 10 GOhm | -20 C | 105 ░C | 300 V | 0.042 in | 1.07 mm | Copper Tinned | Flat Cable | Zippable | 7 Strands 34 AWG | UL Style 20462 | 0.05 in | 1.27 mm | Unshielded | Poly-Vinyl Chloride (PVC) | Multiple | 81.28 mm | 3.2 in | ||||||||
3M (TC) | 300 ft | 91.44 m | 26 AWG | 24 | 10 GOhm | -20 C | 105 ░C | 300 V | 0.042 in | 1.07 mm | Copper Tinned | Flat Cable | Zippable | 7 Strands 34 AWG | UL Style 20462 | 0.05 in | 1.27 mm | Unshielded | Poly-Vinyl Chloride (PVC) | Multiple | 30.48 mm | 1.2 in | ||||||||
3M (TC) | 25 ft | 7.62 m | 26 AWG | 1.85 in | 46.99 mm | 37 | 10 GOhm | -20 C | 105 ░C | 300 V | 0.042 in | 1.07 mm | Copper Tinned | Flat Cable | Zippable | 7 Strands 34 AWG | UL Style 20462 | 0.05 in | 1.27 mm | Unshielded | Poly-Vinyl Chloride (PVC) | Multiple | ||||||||
3M (TC) | 25 ft 50 ft | 7.62 m 15.24 m | 26 AWG | 10 | 10 GOhm | -20 C | 105 ░C | 300 V | 0.042 in | 1.07 mm | Copper Tinned | 3.05 m 30.48 m | 10 ft 100 ft | Flat Cable | Zippable | 7 Strands 34 AWG | UL Style 20462 | 0.05 in | 1.27 mm | Unshielded | Poly-Vinyl Chloride (PVC) | Multiple | 0.5 " | 12.7 mm | ||||||
3M (TC) | 26 AWG | 0.75 " | 19.05 mm | 15 | 10 GOhm | -20 C | 105 ░C | 300 V | 0.042 in | 1.07 mm | Copper Tinned | 30.48 m | 100 ft | Flat Cable | Zippable | 7 Strands 34 AWG | UL Style 20462 | 0.05 in | 1.27 mm | Unshielded | Poly-Vinyl Chloride (PVC) | Multiple | ||||||||
3M (TC) | 26 AWG | 0.9 in | 22.86 mm | 18 | 10 GOhm | -20 C | 105 ░C | 300 V | 0.042 in | 1.07 mm | Copper Tinned | 30.48 m | 100 ft | Flat Cable | Zippable | 7 Strands 34 AWG | UL Style 20462 | 0.05 in | 1.27 mm | Unshielded | Poly-Vinyl Chloride (PVC) | Multiple | ||||||||
3M (TC) | 1 ft 25 ft 300 ft | 7.62 m 91.44 m 304.8 mm | 26 AWG | 14 | 10 GOhm | -20 C | 105 ░C | 300 V | 0.042 in | 1.07 mm | Copper Tinned | 30.48 m | 100 ft | Flat Cable | Zippable | 7 Strands 34 AWG | UL Style 20462 | 0.05 in | 1.27 mm | Unshielded | Poly-Vinyl Chloride (PVC) | Multiple | 0.7 in | 17.78 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 120.84 | |
| 1 | $ 229.35 | |||
| 1 | $ 52.01 | |||
| 5 | $ 182.26 | |||
| 5 | $ 41.37 | |||
| 5 | $ 96.41 | |||
| 10 | $ 165.69 | |||
| 10 | $ 37.53 | |||
| 10 | $ 87.25 | |||
| 25 | $ 145.63 | |||
| 25 | $ 76.78 | |||
| 25 | $ 32.99 | |||
| 50 | $ 69.36 | |||
| 50 | $ 131.68 | |||
| 50 | $ 29.85 | |||
| 100 | $ 63.25 | |||
| 100 | $ 27.05 | |||
| Spool | 1 | $ 429.80 | ||
| 5 | $ 341.77 | |||
| 10 | $ 310.70 | |||
| 25 | $ 272.73 | |||
Description
General part information
3811 Series
Flat Ribbon Cable Multiple 50 Conductors 0.050" (1.27mm) Flat Cable 100.0' (30.48m)
