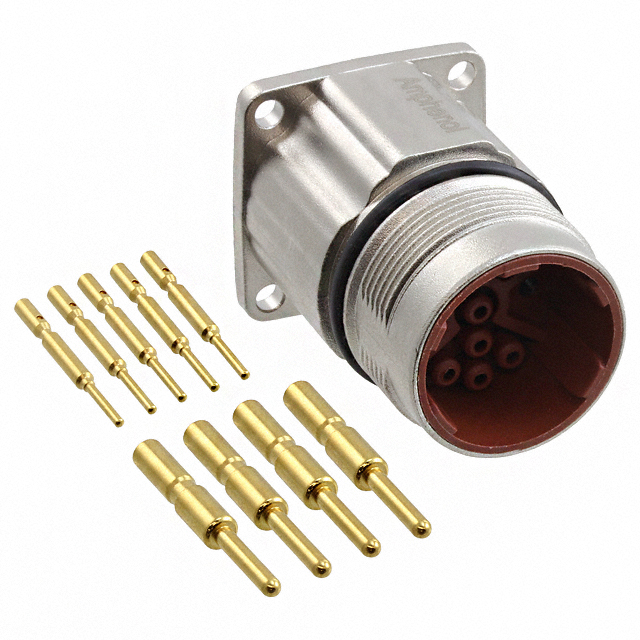

MB1LLN0900-KIT

Active

Amphenol Sine Systems Corp

CONN RCPT MALE 9POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN RCPT MALE 9POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Current Rating (Amps)	Ingress Protection	Shielding	Voltage Rating	Mounting Feature	Orientation	Shell Material	Color	Shell Finish	Termination	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions	Primary Material	Contact Finish - Mating	Number of Positions	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Shell Size - Insert	Type	Contact Size	Housing Color	Contact Type	Material Flammability Rating	Contact Shape	Insert Material	Note
Amphenol Sine Systems Corp MB1LLN0800-KIT	-20 C	130 °C	Male Pins Receptacle	10 A 30 A	IP67 - Dust Tight Waterproof	Shielded	250 VAC	Flange	Keyed	Zinc Die Cast	Silver	Nickel	Crimp	3	8	4	PE	Metal	Gold
Amphenol Sine Systems Corp MB1LLN0600-KIT	-20 C	130 °C	Male Pins Receptacle	28 A	IP67 - Dust Tight Waterproof	Shielded	630 VAC/DC	Flange	Keyed	Zinc Die Cast	Silver	Nickel	Crimp					Metal	Gold	6
Amphenol Sine Systems Corp MB1LLN0900-KIT	-20 C	130 °C	Male Pins Receptacle	10 A 30 A	IP67 - Dust Tight Waterproof	Shielded	250 VAC	Flange	Keyed	Zinc Die Cast	Silver	Nickel	Crimp				PE	Metal	Gold		3	5	9
Amphenol Sine Systems Corp MB1LLN0600	-20 C	130 °C	Receptacle Housing		IP67 - Dust Tight Waterproof	Shielded		Flange	Keyed	Zinc Die Cast		Nickel								6				M23-6	For Male Pins	2 mm	Silver	Crimp	UL94 V-0	Circular	Polyamide (PA66) Nylon 6/6	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 27.12

General part information

9 (5 + 3 Power + PE) Position Circular Connector Receptacle, Male Pins Crimp
