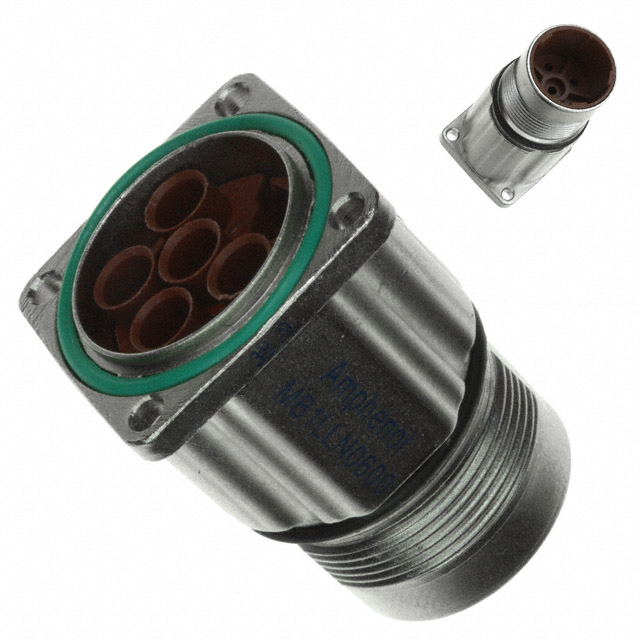

MB1LLN0600

Active

Amphenol Sine Systems Corp

CONN RCPT HSNG MALE 6POS PNL MT

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN RCPT HSNG MALE 6POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	MB1LLN0600

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	2 mm
Contact Type	Crimp
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	6
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-6
Shielding	Shielded
Type	For Male Pins

Part	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Current Rating (Amps)	Ingress Protection	Shielding	Voltage Rating	Mounting Feature	Orientation	Shell Material	Color	Shell Finish	Termination	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions	Primary Material	Contact Finish - Mating	Number of Positions	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Shell Size - Insert	Type	Contact Size	Housing Color	Contact Type	Material Flammability Rating	Contact Shape	Insert Material	Note
Amphenol Sine Systems Corp MB1LLN0800-KIT	-20 C	130 °C	Male Pins Receptacle	10 A 30 A	IP67 - Dust Tight Waterproof	Shielded	250 VAC	Flange	Keyed	Zinc Die Cast	Silver	Nickel	Crimp	3	8	4	PE	Metal	Gold
Amphenol Sine Systems Corp MB1LLN0600-KIT	-20 C	130 °C	Male Pins Receptacle	28 A	IP67 - Dust Tight Waterproof	Shielded	630 VAC/DC	Flange	Keyed	Zinc Die Cast	Silver	Nickel	Crimp					Metal	Gold	6
Amphenol Sine Systems Corp MB1LLN0900-KIT	-20 C	130 °C	Male Pins Receptacle	10 A 30 A	IP67 - Dust Tight Waterproof	Shielded	250 VAC	Flange	Keyed	Zinc Die Cast	Silver	Nickel	Crimp				PE	Metal	Gold		3	5	9
Amphenol Sine Systems Corp MB1LLN0600	-20 C	130 °C	Receptacle Housing		IP67 - Dust Tight Waterproof	Shielded		Flange	Keyed	Zinc Die Cast		Nickel								6				M23-6	For Male Pins	2 mm	Silver	Crimp	UL94 V-0	Circular	Polyamide (PA66) Nylon 6/6	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 (5 Power + PE) Position Circular Connector Receptacle Housing Panel Mount
