EP20K1000CB652C9

Obsolete

Altera

IC FPGA 488 I/O 652BGA

Search across all available documentation for this part.

Obsolete

Altera

IC FPGA 488 I/O 652BGA

Technical Specifications

Parameters and characteristics for this part

Specification	EP20K1000CB652C9

Mounting Type	Surface Mount
Number of Gates [custom]	1772000
Number of I/O	488
Number of LABs/CLBs	3840
Number of Logic Elements/Cells	38400
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C

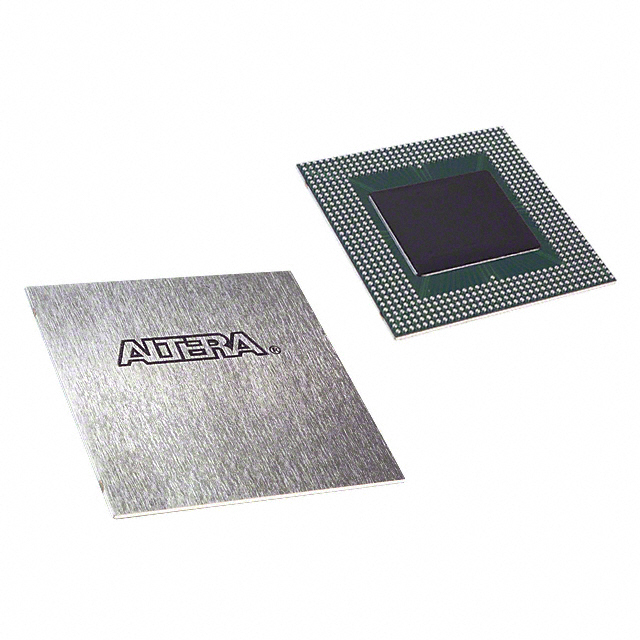

Package / Case	652-BGA
Supplier Device Package	652-BGA (45x45)
Total RAM Bits	327680 Bits
Voltage - Supply [Max]	1.89 V
Voltage - Supply [Min]	1.71 V

Part	Total RAM Bits	Package / Case	Number of Gates [custom]	Number of LABs/CLBs	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of I/O	Supplier Device Package	Operating Temperature [Max]	Number of Logic Elements/Cells
Altera EP20K1000CB652C9	327680 Bits	652-BGA	1772000	3840	Surface Mount	1.89 V	1.71 V	488	652-BGA (45x45)	85 °C	38400
Altera EP20K1000EFC672-2X	327680 Bits	672-BBGA	1772000	3840	Surface Mount	1.89 V	1.71 V	508		85 °C	38400
Altera EP20K1000EFC672-1		672-BBGA			Surface Mount	1.89 V	1.71 V	508		85 °C
Altera EP20K1000CF672C7N		672-BBGA FCBGA			Surface Mount	1.89 V	1.71 V	508		85 °C
Altera EP20K1000CF672C9	327680 Bits	672-BBGA	1772000	3840	Surface Mount	1.89 V	1.71 V	508		85 °C	38400
Altera EP20K1000CF672C8	327680 Bits	672-BBGA	1772000	3840	Surface Mount	1.89 V	1.71 V	508		85 °C	38400
Altera EP20K1000CF33C8		1020-BBGA			Surface Mount	1.89 V	1.71 V	708	1020-FBGA (33x33)	85 °C
Altera EP20K1000EFC672-3	327680 Bits	672-BBGA	1772000	3840	Surface Mount	1.89 V	1.71 V	508		85 °C	38400
Altera EP20K1000EFC33-2X		1020-BBGA			Surface Mount	1.89 V	1.71 V	708	1020-FBGA (33x33)	85 °C
Altera EP20K1000CB652C9					Surface Mount	1.89 V	1.71 V	488	652-BGA (45x45)	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

APEX-20KC® Field Programmable Gate Array (FPGA) IC 488 327680 38400 652-BGA
