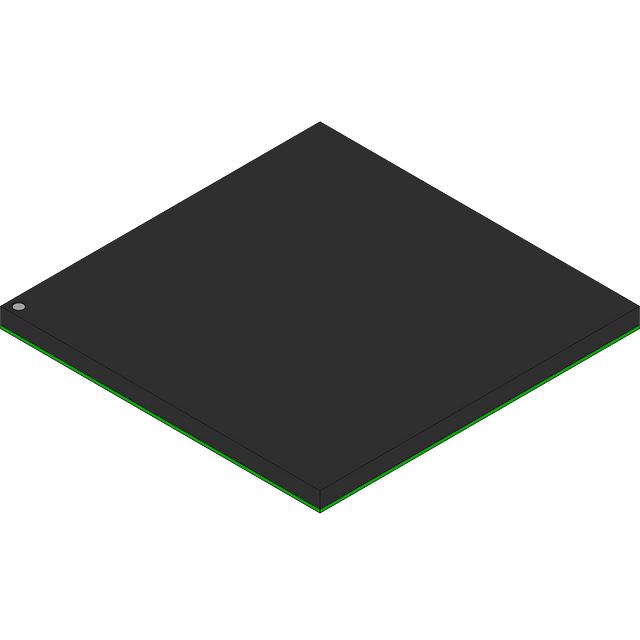

EP20K1000EFC672-1

Active

Altera

IC FPGA 508 I/O 672FBGA

Search across all available documentation for this part.

Active

Altera

IC FPGA 508 I/O 672FBGA

Technical Specifications

Parameters and characteristics for this part

Part	Total RAM Bits	Package / Case	Number of Gates [custom]	Number of LABs/CLBs	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of I/O	Supplier Device Package	Operating Temperature [Max]	Number of Logic Elements/Cells
Altera EP20K1000CB652C9	327680 Bits	652-BGA	1772000	3840	Surface Mount	1.89 V	1.71 V	488	652-BGA (45x45)	85 °C	38400
Altera EP20K1000EFC672-2X	327680 Bits	672-BBGA	1772000	3840	Surface Mount	1.89 V	1.71 V	508		85 °C	38400
Altera EP20K1000EFC672-1		672-BBGA			Surface Mount	1.89 V	1.71 V	508		85 °C
Altera EP20K1000CF672C7N		672-BBGA FCBGA			Surface Mount	1.89 V	1.71 V	508		85 °C
Altera EP20K1000CF672C9	327680 Bits	672-BBGA	1772000	3840	Surface Mount	1.89 V	1.71 V	508		85 °C	38400
Altera EP20K1000CF672C8	327680 Bits	672-BBGA	1772000	3840	Surface Mount	1.89 V	1.71 V	508		85 °C	38400
Altera EP20K1000CF33C8		1020-BBGA			Surface Mount	1.89 V	1.71 V	708	1020-FBGA (33x33)	85 °C
Altera EP20K1000EFC672-3	327680 Bits	672-BBGA	1772000	3840	Surface Mount	1.89 V	1.71 V	508		85 °C	38400
Altera EP20K1000EFC33-2X		1020-BBGA			Surface Mount	1.89 V	1.71 V	708	1020-FBGA (33x33)	85 °C
Altera EP20K1000CB652C9					Surface Mount	1.89 V	1.71 V	488	652-BGA (45x45)	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3408.64

General part information

APEX-20KE® Field Programmable Gate Array (FPGA) IC 508 672-BBGA
