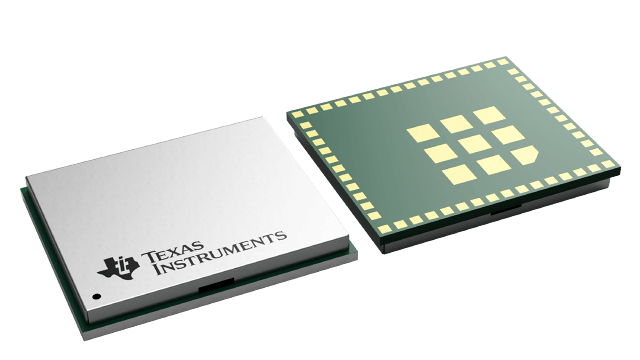

CC3235MODSF12MOBR

Active

Texas Instruments

SIMPLELINK™ 32-BIT ARM CORTEX-M4 DUAL-BAND WI-FI CERTIFIED™ WIRELESS MODULE WITH 1MB FLASH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSimpleLink™ Wi-Fi® CC3x20 and CC3x3x Provisioning for Mobile Applications (Rev. B)A primer to Wi-Fi® provisioning for IoT applications (Rev. A)+33

CC3235MODSF12MOBR

Active

Texas Instruments

SIMPLELINK™ 32-BIT ARM CORTEX-M4 DUAL-BAND WI-FI CERTIFIED™ WIRELESS MODULE WITH 1MB FLASH

Deep-Dive with AI

DocumentsSimpleLink™ Wi-Fi® CC3x20 and CC3x3x Provisioning for Mobile Applications (Rev. B)A primer to Wi-Fi® provisioning for IoT applications (Rev. A)+33

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CC3235MODSF12MOBR

Antenna Type	Integrated, Chip
Current - Receiving [Max]	80 mA
Current - Receiving [Min]	53 mA
Current - Transmitting [Max]	329 mA
Current - Transmitting [Min]	154 mA
Data Rate	54 Mbps
Frequency [Max]	5.825 GHz, 2.472 GHz
Frequency [Min]	5.18 GHz, 2.412 GHz
Memory Size	1 MB, 256 kB
Modulation	DSSS, OFDM, CCK
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	63-SMD Module
Power - Output	16.3 dBm
Protocol	802.11a/b/g/n
RF Family/Standard	WiFi
Serial Interfaces	SPI, I2C, I2S, UART
Utilized IC / Part	CC3235SF
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.3 V

CC3235MODSF Series

SimpleLink™ 32-bit Arm Cortex-M4 dual-band Wi-Fi CERTIFIED™ wireless module with 1MB Flash

Part	Antenna Type	Current - Receiving [Max]	Current - Receiving [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Power - Output	Protocol	Modulation	RF Family/Standard	Frequency [Min]	Frequency [Max]	Package / Case	Current - Transmitting [Max]	Current - Transmitting [Min]	Data Rate	Utilized IC / Part	Memory Size	Mounting Type	Serial Interfaces	Voltage - Supply [Min]	Voltage - Supply [Max]
Texas Instruments CC3235MODSF12MOBR	Integrated, Chip	80 mA	53 mA	85 °C	-40 °C	16.3 dBm	802.11a/b/g/n	CCK, DSSS, OFDM	WiFi	2.412 GHz, 5.18 GHz	2.472 GHz, 5.825 GHz	63-SMD Module	329 mA	154 mA	54 Mbps	CC3235SF	1 MB, 256 kB	Surface Mount	I2C, I2S, SPI, UART	2.3 V	3.6 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 22.31
		10	$ 19.45
		25	$ 18.46
		100	$ 17.11
		250	$ 16.58
	Digi-Reel®	1	$ 22.31
		10	$ 19.45
		25	$ 18.46
		100	$ 17.11
		250	$ 16.58
	Tape & Reel (TR)	750	$ 13.54
Texas Instruments	LARGE T&R	1	$ 17.99
		100	$ 15.71
		250	$ 12.11
		1000	$ 10.84

Description

General part information

CC3235MODSF Series

Start your design with the fully programmable FCC, IC/ISED, ETSI/CE, MIC, and SRRC certified wireless microcontroller (MCU) module with built-in dual-band Wi-Fi connectivity. The modules integrate the 40MHz crystal, 32.768kHz RTC clock, 32Mb SPI serial flash, RF filters, diplexer, and passive components.

The SimpleLink™ CC3235MODx module is available in two variants:

The SimpleLink™ CC3235MODAx module is available in two variants:

Documents

Technical documentation and resources

SimpleLink™ Wi-Fi® CC3x20 and CC3x3x Provisioning for Mobile Applications (Rev. B)

User guide

A primer to Wi-Fi® provisioning for IoT applications (Rev. A)

White paper

SimpleLink™ WiFi Certificates Handling (Rev. A)

CC3235MODSF12MOBR

Deep-Dive with AI

CC3235MODSF12MOBR

Deep-Dive with AI

Technical Specifications

CC3235MODSF Series

Pricing

Description

CC3235MODSF Series

Documents

SimpleLink™ Wi-Fi® CC3x20 and CC3x3x Provisioning for Mobile Applications (Rev. B)

A primer to Wi-Fi® provisioning for IoT applications (Rev. A)

SimpleLink™ WiFi Certificates Handling (Rev. A)

SimpleLink™ Wi-Fi® CC3x20, CC3x3x Radio Tool User Guide (Rev. B)

CE Compliance Test Procedure for TI’s WiFi Devices

SimpleLink™ Wi-Fi® CC3x3x Serial Flash (Rev. B)

Module Reliability for CC2xxxMODx, CC3xxxMODx, CC3xxxMODAx, and WL18xxMOD (Rev. A)

Enabling Secure and Reliable Wi-Fi® Connectivity in Medical Equipment (Rev. A)

CC3235MOD Production Line Guide

CC3235MODSF12MOB EC Declaration of Conformity (DoC) (Rev. A)

CE Regulations for SRDs Operating in License-Free 2.4GHz/5GHz Bands-WiFi Devices (Rev. A)

Wireless Connectivity Technology Selection Guide (Rev. B)

Leitfaden zur Auswahl drahtloser Kommunikationstechnologie (Rev. B)

CC3235MODx and CC3235MODAx SimpleLink™ Wi-Fi CERTIFIED™ Dual-Band Wireless MCU Modules datasheet (Rev. C)

TI-RTOS 2.16 for CC32xx SimpleLink Wireless MCUs Getting Started Guide (Rev. F)

SimpleLink™ Wi-Fi® CC323x Technical Reference Manual (Rev. A)

SimpleLink™ Wi-Fi® CC3x20, CC3x3x Over-the-Air Update (Rev. B)

FIPS Compliant vs. FIPS Validated (Rev. A)

Transfer of TI Wi-Fi® Alliance Certifications to Products Using WFA Cert Policy (Rev. F)

SimpleLink™ Wi-Fi® CC3x3x Networking Subsystem Power Management (Rev. A)

SimpleLink™ Wi-Fi® CC3x20, CC3x3x Network Processor (Rev. M)

UniFlash CC3x20, CC3x3x SimpleLink™ Wi-Fi® and IoC™ Solution ImageCreator (Rev. H)

Low-Power Internet Connectivity Over Wi-Fi (Rev. A)

Vendor Device Authentication With SimpleLink™ Wi-Fi® Devices (Rev. A)

SimpleLink™ Wi-Fi® CC3x20, CC3x3x Device Provisioning (Rev. C)

無線連線技術選擇指南 (Rev. B)

Antenna Impedance Measurement and Matching

무선 연결 기술 선택 가이드 (Rev. B)

TI Wi-Fi Test Strategy Overview (Rev. A)

CC313x and CC323x Simplelink™ Wi-Fi® Embedded Programming User's Guide

Top 3 design challenges that the new generation of SimpleLink Wi-Fi devices will

Wi-Fi® Enabled Electronic Smart Lock Security Application Brief (Rev. A)

CC3235MODSF LaunchPad Development Kit (LAUNCHCC3235MOD) User’s Guide (Rev. C)

SimpleLink™ Wi-Fi® CC313x, CC323x BLE Coexistence (Rev. A)

CC3x20, CC3x35 SimpleLink™ Wi-Fi® Internet-on-a chip™ Solution Built-In Security (Rev. C)
