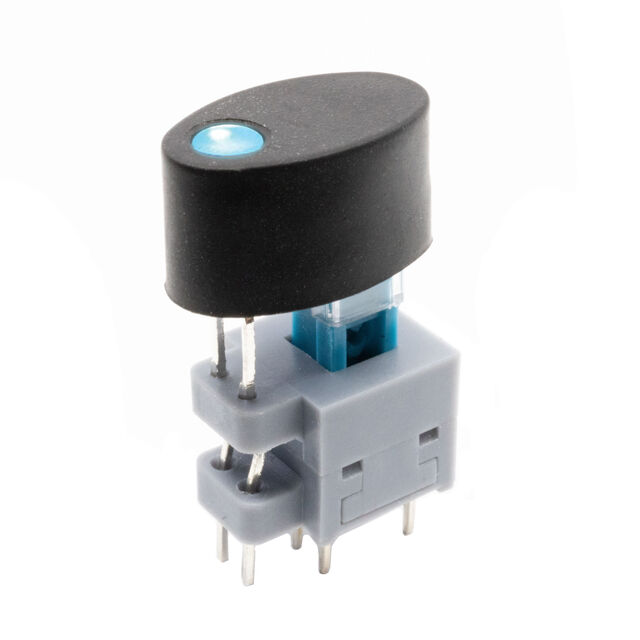

TL2205EEBPBB

Active

E-Switch

SWITCH PUSH DPDT 0.1A 30V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PUSH DPDT 0.1A 30V

Technical Specifications

Parameters and characteristics for this part

Specification	TL2205EEBPBB

Actuator Marking	No Marking
Actuator Type	Oval, Button
Circuit	DPDT
Color - Actuator/Cap [custom]	Black
Color - Actuator/Cap [custom]	White
Current Rating (Amps)	100 mA
Illumination Type, Color	LED, Blue
Illumination Voltage (Nominal)	3.5 VDC
Mechanical Life	10000 Steps
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Switch Function	On-On
Termination Style	PC Pin
Type	Illuminated, Standard
Voltage Rating - DC	30 V

Part	Current Rating (Amps)	Illumination Type, Color	Actuator Type	Actuator Marking	Termination Style	Voltage Rating - DC	Illumination Voltage (Nominal)	Circuit	Mechanical Life	Type	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Color - Actuator/Cap [custom]	Color - Actuator/Cap [custom]
E-Switch TL2205OACPBA	100 mA	Blue LED	Oval Button	No Marking	PC Pin	30 V	3.5 VDC	DPDT	10000 Steps	Illuminated Standard	On-Mom	-20 C	70 °C	Through Hole
E-Switch TL2205OABPBB	100 mA	Blue LED	Button Oval	No Marking	PC Pin	30 V	3.5 VDC	DPDT	10000 Steps	Illuminated Standard	On-Mom	-20 C	70 °C	Through Hole	Black	White
E-Switch TL2205EEBPBB	100 mA	Blue LED	Button Oval	No Marking	PC Pin	30 V	3.5 VDC	DPDT	10000 Steps	Illuminated Standard	On-On	-20 C	70 °C	Through Hole	Black	White
E-Switch TL2205EEBPRA	100 mA	LED Red	Oval Button	No Marking	PC Pin	30 V	1.7 VDC	DPDT	10000 Steps	Illuminated Standard	On-On	-20 C	70 °C	Through Hole
E-Switch TL2205EECPBA	100 mA	Blue LED	Oval Button	No Marking	PC Pin	30 V	3.5 VDC	DPDT	10000 Steps	Illuminated Standard	On-On	-20 C	70 °C	Through Hole
E-Switch TL2205EEBPYB	100 mA	LED Yellow	Oval Button		PC Pin	30 V	1.7 VDC	DPDT	10000 Steps	Illuminated Standard	On-On	-20 C	70 °C	Through Hole
E-Switch TL2205EEBPBA	100 mA	Blue LED	Oval Button	No Marking	PC Pin	30 V	3.5 VDC	DPDT	10000 Steps	Illuminated Standard	On-On	-20 C	70 °C	Through Hole
E-Switch TL2205EEBPRB	100 mA	LED Red	Button Oval	No Marking	PC Pin	30 V	1.7 VDC	DPDT	10000 Steps	Illuminated Standard	On-On	-20 C	70 °C	Through Hole	Black	White

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPDT Standard, Illuminated Through Hole
