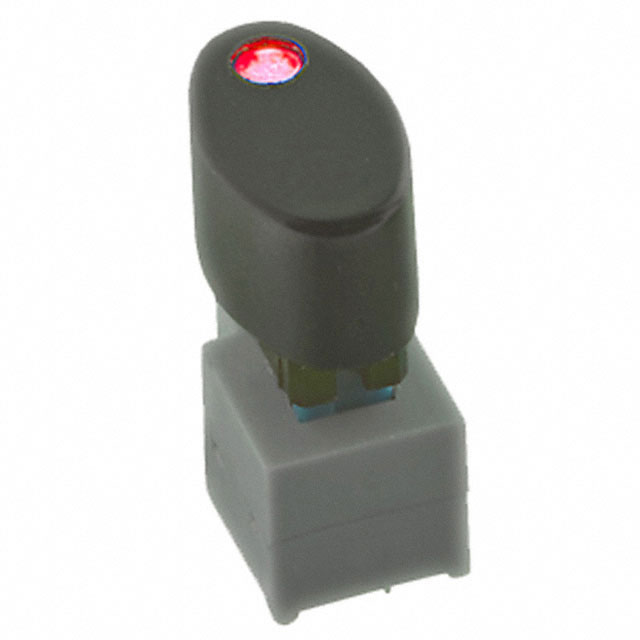

TL2205EEBPRB

Active

E-Switch

SWITCH PUSH DPDT 0.1A 30V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PUSH DPDT 0.1A 30V

Technical Specifications

Parameters and characteristics for this part

Specification	TL2205EEBPRB

Actuator Marking	No Marking
Actuator Type	Oval, Button
Circuit	DPDT
Color - Actuator/Cap [custom]	Black
Color - Actuator/Cap [custom]	White
Current Rating (Amps)	100 mA
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	1.7 VDC
Mechanical Life	10000 Steps
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Switch Function	On-On
Termination Style	PC Pin
Type	Illuminated, Standard
Voltage Rating - DC	30 V

Part	Current Rating (Amps)	Illumination Type, Color	Actuator Type	Actuator Marking	Termination Style	Voltage Rating - DC	Illumination Voltage (Nominal)	Circuit	Mechanical Life	Type	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Color - Actuator/Cap [custom]	Color - Actuator/Cap [custom]
E-Switch TL2205OACPBA	100 mA	Blue LED	Oval Button	No Marking	PC Pin	30 V	3.5 VDC	DPDT	10000 Steps	Illuminated Standard	On-Mom	-20 C	70 °C	Through Hole
E-Switch TL2205OABPBB	100 mA	Blue LED	Button Oval	No Marking	PC Pin	30 V	3.5 VDC	DPDT	10000 Steps	Illuminated Standard	On-Mom	-20 C	70 °C	Through Hole	Black	White
E-Switch TL2205EEBPBB	100 mA	Blue LED	Button Oval	No Marking	PC Pin	30 V	3.5 VDC	DPDT	10000 Steps	Illuminated Standard	On-On	-20 C	70 °C	Through Hole	Black	White
E-Switch TL2205EEBPRA	100 mA	LED Red	Oval Button	No Marking	PC Pin	30 V	1.7 VDC	DPDT	10000 Steps	Illuminated Standard	On-On	-20 C	70 °C	Through Hole
E-Switch TL2205EECPBA	100 mA	Blue LED	Oval Button	No Marking	PC Pin	30 V	3.5 VDC	DPDT	10000 Steps	Illuminated Standard	On-On	-20 C	70 °C	Through Hole
E-Switch TL2205EEBPYB	100 mA	LED Yellow	Oval Button		PC Pin	30 V	1.7 VDC	DPDT	10000 Steps	Illuminated Standard	On-On	-20 C	70 °C	Through Hole
E-Switch TL2205EEBPBA	100 mA	Blue LED	Oval Button	No Marking	PC Pin	30 V	3.5 VDC	DPDT	10000 Steps	Illuminated Standard	On-On	-20 C	70 °C	Through Hole
E-Switch TL2205EEBPRB	100 mA	LED Red	Button Oval	No Marking	PC Pin	30 V	1.7 VDC	DPDT	10000 Steps	Illuminated Standard	On-On	-20 C	70 °C	Through Hole	Black	White

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 1.80

General part information

Pushbutton Switch DPDT Standard, Illuminated Through Hole
