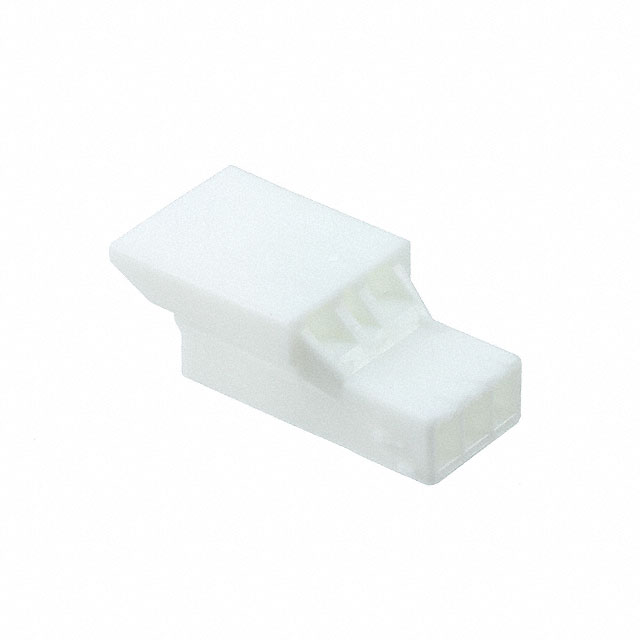

5-1565086-1
ActiveTE Connectivity Raychem Cable Protection
GRACE INERTIA CONNECTOR 3.5W 3POS CAP
Deep-Dive with AI
Search across all available documentation for this part.
5-1565086-1
ActiveTE Connectivity Raychem Cable Protection
GRACE INERTIA CONNECTOR 3.5W 3POS CAP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5-1565086-1 |
|---|---|
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Rows | 1 |
| Operating Temperature [Max] | 110 °C |
| Operating Temperature [Min] | -30 ░C |
| Pitch [x] | 3.5 mm |
| Pitch [x] | 0.138 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 4000 | $ 0.20 | |
Description
General part information
GRACE INERTIA 3.5 Series
3 Position, Receptacle, Housing, Crimp, Wire-to-Wire, UL 94V-0, 3.5 mm [.138 in] Centerline, 1 Row, 300 VAC, Wire & Cable, GRACE INERTIA 3.5
