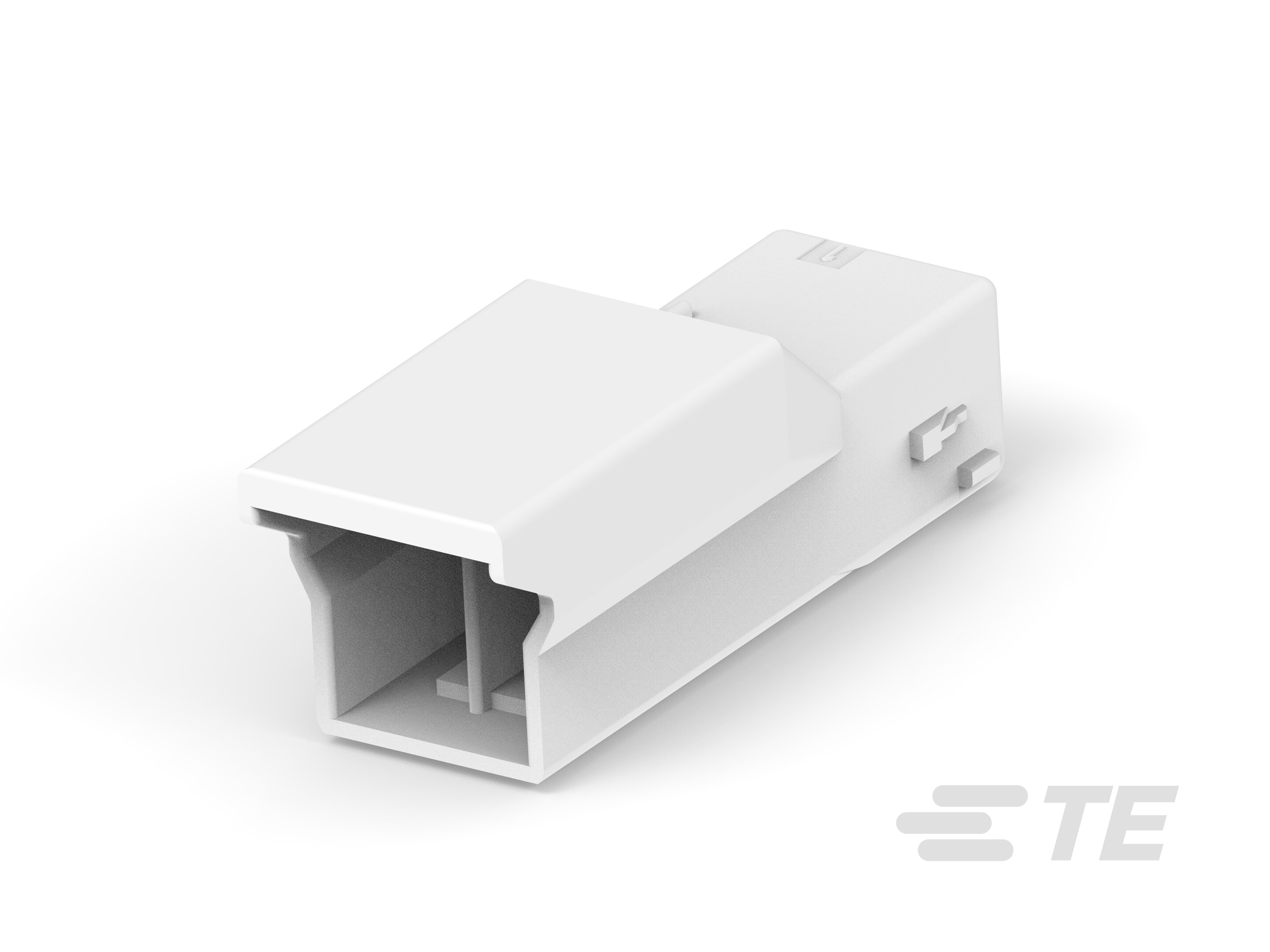

1-1565085-1

Active

TE Connectivity Raychem Cable Protection

COMBINATION LINE CONNECTOR

Deep-Dive with AI

Search across all available documentation for this part.

1-1565085-1

Active

TE Connectivity Raychem Cable Protection

COMBINATION LINE CONNECTOR

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1-1565085-1

null

GRACE INERTIA 3.5 Series

Part	Number of Rows	Pitch [x]	Pitch [x]	Connector Type	Color	Contact Type	Insulation Material	Row Spacing	Row Spacing	Number of Positions	Fastening Type	Contact Termination	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Note
TE Connectivity Raychem Cable Protection 3-1565087-4	2	3.5 mm	0.138 in	Receptacle	Yellow	Tab	Polyamide (PA66) Nylon 6/6	0.189 in	4.8 mm	4	Latch Holder	Crimp	Free Hanging (In-Line)	-30 ░C	105 ░C	Contacts Not Included
TE Connectivity Raychem Cable Protection 2-1565085-3	1	3.5 mm	0.138 in	Receptacle	Blue	Tab	Polyamide (PA66) Nylon 6/6			2	Locking Ramp	Crimp	Free Hanging (In-Line)	-30 ░C	105 ░C	Contacts Not Included
TE Connectivity Raychem Cable Protection 3-1565085-4	1	3.5 mm	0.138 in	Receptacle	Yellow	Tab	Polyamide (PA66) Nylon 6/6			2	Locking Ramp	Crimp	Free Hanging (In-Line)	-30 ░C	105 ░C	Contacts Not Included
TE Connectivity Raychem Cable Protection 1-1565081-2	1	3.5 mm	0.138 in	Plug	Red	Female Socket	Polyamide (PA66) Nylon 6/6			2	Latch Holder	Crimp	Free Hanging (In-Line)	-30 ░C	105 ░C	Contacts Not Included
TE Connectivity Raychem Cable Protection 1565086-5	1	3.5 mm	0.138 in	Receptacle	Green	Tab	Polyamide (PA66) Nylon 6/6					Crimp	Free Hanging (In-Line)	-30 ░C	105 ░C	Contacts Not Included
TE Connectivity Raychem Cable Protection 1-1565081-1
TE Connectivity Raychem Cable Protection 3-1565081-4	1	3.5 mm	0.138 in	Plug	Yellow	Female Socket	Polyamide (PA66) Nylon 6/6			2	Latch Holder	Crimp	Free Hanging (In-Line)	-30 ░C	105 ░C	Contacts Not Included
TE Connectivity Raychem Cable Protection 5-1565086-1	1	3.5 mm	0.138 in	Receptacle		Tab	Polyamide (PA66) Nylon 6/6					Crimp	Free Hanging (In-Line)	-30 ░C	110 °C	Contacts Not Included
TE Connectivity Raychem Cable Protection 1-1565085-1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	8000	$ 0.16

Description

General part information

GRACE INERTIA 3.5 Series

Rectangular Connectors - Housings
