C14610N0248061

Active

Amphenol Tuchel Industrial

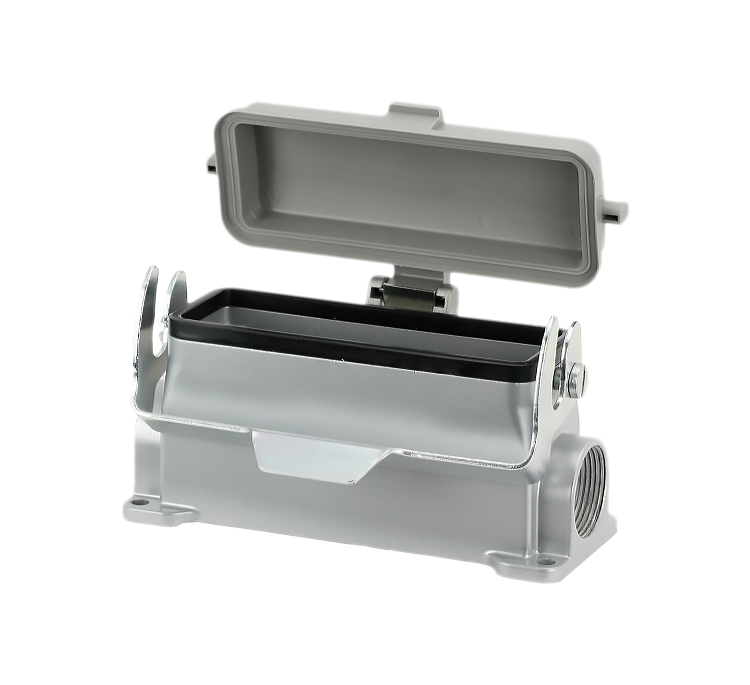

CONN BASE SIDE ENTRY SZE24 M25

Deep-Dive with AI

Search across all available documentation for this part.

C14610N0248061

Active

Amphenol Tuchel Industrial

CONN BASE SIDE ENTRY SZE24 M25

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C14610N0248061

Connector Type	Base - Box Mount
Features	Cover
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	E24
Size / Dimension [x]	143.5 mm
Size / Dimension [x]	5.65 in
Size / Dimension [y]	57 mm
Size / Dimension [y]	2.244 "
Size / Dimension [z]	2.52 "
Size / Dimension [z]	64 mm
Style	Side Entry
Thread Size	M25

C14610N024 Series

Part	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Features	Thread Size	Connector Type	Lock Location	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size	Ingress Protection	Style
Amphenol Tuchel Industrial C14610N0248062	Aluminum Alloy Die Cast	100 °C	-40 °C	Cover	M32	Base - Box Mount	Locking Clip (1) on Base Bottom	57 mm	3.15 "	143.5 mm	5.65 in	80 mm	2.244 "	E24	IP65 - Dust Tight Water Resistant	Side Entry
Amphenol Tuchel Industrial C14610N0246061	Aluminum Alloy Die Cast	100 °C	-40 °C		M25	Base - Box Mount	Locking Clip (1) on Base Bottom	57 mm	2.52 "	143.5 mm	5.65 in	64 mm	2.244 "	E24	IP65 - Dust Tight Water Resistant	Side Entry
Amphenol Tuchel Industrial C14610N0246002	Aluminum Alloy Die Cast	100 °C	-40 °C	Feed Through	M32	Base - Box Mount	Locking Clip (2) on Hood	57 mm	3.15 "	143.5 mm	5.65 in	80 mm	2.244 "	E24	IP65 - Dust Tight Water Resistant	Side Entry
Amphenol Tuchel Industrial C14610N0248061	Aluminum Alloy Die Cast	100 °C	-40 °C	Cover	M25	Base - Box Mount	Locking Clip (1) on Base Bottom	57 mm	2.52 "	143.5 mm	5.65 in	64 mm	2.244 "	E24	IP65 - Dust Tight Water Resistant	Side Entry
Amphenol Tuchel Industrial C14610N0248021	Aluminum Alloy Die Cast	100 °C	-40 °C		M25	Base - Box Mount	Locking Clip (1) on Base Bottom	57 mm	2.52 "	143.5 mm	5.65 in	64 mm	2.244 "	E24	IP65 - Dust Tight Water Resistant	Side Entry
Amphenol Tuchel Industrial C14610N0245001	Aluminum Alloy Die Cast	100 °C	-40 °C		M25	Base - Box Mount	Locking Clip (2) on Base Bottom	57 mm	2.52 "	143.5 mm	5.65 in	64 mm	2.244 "	E24	IP65 - Dust Tight Water Resistant	Side Entry
Amphenol Tuchel Industrial C14610N0246041	Aluminum Alloy Die Cast	100 °C	-40 °C		M25	Base - Box Mount	Locking Clip (2) on Hood	57 mm	2.52 "	143.5 mm	5.65 in	64 mm	2.244 "	E24	IP65 - Dust Tight Water Resistant	Side Entry

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 32.09

Description

General part information

C14610N024 Series

Base - Box Mount Connector Side Entry M25 E24 IP65 - Dust Tight, Water Resistant
