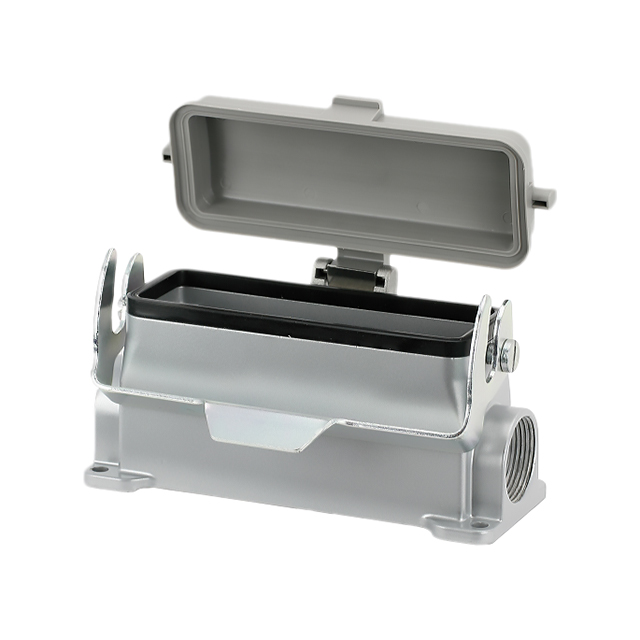

C14610N0246061
ActiveAmphenol Tuchel Industrial
CONN BASE SIDE ENTRY SZE24 M25
Deep-Dive with AI
Search across all available documentation for this part.
C14610N0246061
ActiveAmphenol Tuchel Industrial
CONN BASE SIDE ENTRY SZE24 M25
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C14610N0246061 |
|---|---|
| Connector Type | Base - Box Mount |
| Housing Material | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Size | E24 |
| Size / Dimension [x] | 143.5 mm |
| Size / Dimension [x] | 5.65 in |
| Size / Dimension [y] | 57 mm |
| Size / Dimension [y] | 2.244 " |
| Size / Dimension [z] | 2.52 " |
| Size / Dimension [z] | 64 mm |
| Style | Side Entry |
| Thread Size | M25 |
C14610N024 Series
| Part | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Features | Thread Size | Connector Type | Lock Location | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size | Ingress Protection | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Tuchel Industrial | Aluminum Alloy Die Cast | 100 °C | -40 °C | Cover | M32 | Base - Box Mount | Locking Clip (1) on Base Bottom | 57 mm | 3.15 " | 143.5 mm | 5.65 in | 80 mm | 2.244 " | E24 | IP65 - Dust Tight Water Resistant | Side Entry |
Amphenol Tuchel Industrial | Aluminum Alloy Die Cast | 100 °C | -40 °C | M25 | Base - Box Mount | Locking Clip (1) on Base Bottom | 57 mm | 2.52 " | 143.5 mm | 5.65 in | 64 mm | 2.244 " | E24 | IP65 - Dust Tight Water Resistant | Side Entry | |
Amphenol Tuchel Industrial | Aluminum Alloy Die Cast | 100 °C | -40 °C | Feed Through | M32 | Base - Box Mount | Locking Clip (2) on Hood | 57 mm | 3.15 " | 143.5 mm | 5.65 in | 80 mm | 2.244 " | E24 | IP65 - Dust Tight Water Resistant | Side Entry |
Amphenol Tuchel Industrial | Aluminum Alloy Die Cast | 100 °C | -40 °C | Cover | M25 | Base - Box Mount | Locking Clip (1) on Base Bottom | 57 mm | 2.52 " | 143.5 mm | 5.65 in | 64 mm | 2.244 " | E24 | IP65 - Dust Tight Water Resistant | Side Entry |
Amphenol Tuchel Industrial | Aluminum Alloy Die Cast | 100 °C | -40 °C | M25 | Base - Box Mount | Locking Clip (1) on Base Bottom | 57 mm | 2.52 " | 143.5 mm | 5.65 in | 64 mm | 2.244 " | E24 | IP65 - Dust Tight Water Resistant | Side Entry | |
Amphenol Tuchel Industrial | Aluminum Alloy Die Cast | 100 °C | -40 °C | M25 | Base - Box Mount | Locking Clip (2) on Base Bottom | 57 mm | 2.52 " | 143.5 mm | 5.65 in | 64 mm | 2.244 " | E24 | IP65 - Dust Tight Water Resistant | Side Entry | |
Amphenol Tuchel Industrial | Aluminum Alloy Die Cast | 100 °C | -40 °C | M25 | Base - Box Mount | Locking Clip (2) on Hood | 57 mm | 2.52 " | 143.5 mm | 5.65 in | 64 mm | 2.244 " | E24 | IP65 - Dust Tight Water Resistant | Side Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 30.48 | |
Description
General part information
C14610N024 Series
Base - Box Mount Connector Side Entry M25 E24 IP65 - Dust Tight, Water Resistant
Documents
Technical documentation and resources
No documents available
