EHR-5
ActiveJST Sales America Inc.

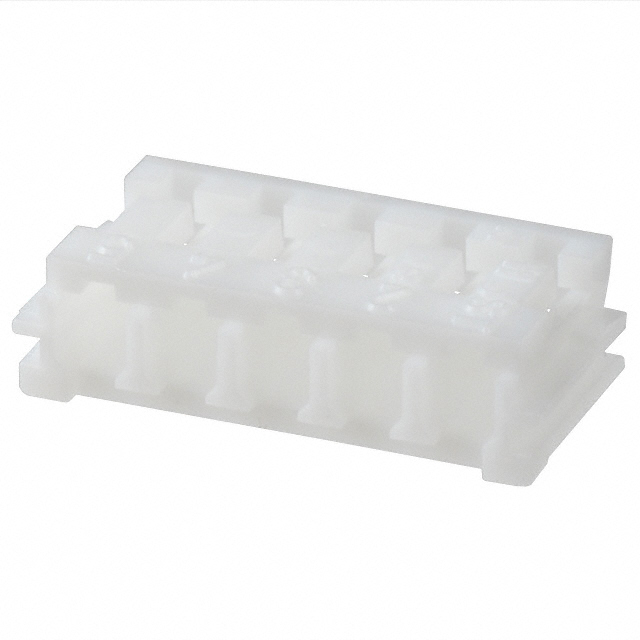

CONN RCPT HSG 5POS 2.50MM
Deep-Dive with AI
Search across all available documentation for this part.
EHR-5
ActiveJST Sales America Inc.
CONN RCPT HSG 5POS 2.50MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EHR-5 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch [x] | 0.098 in |
| Pitch [x] | 2.5 mm |
EHR Series
| Part | Contact Type | Mounting Type | Contact Termination | Number of Rows | Pitch [x] | Pitch [x] | Color | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Note | Number of Positions | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JST Sales America Inc. | Female Socket | Free Hanging (In-Line) | Crimp | 1 | 0.098 in | 2.5 mm | Natural | Polyamide (PA66) Nylon 6/6 | -25 °C | 85 °C | Contacts Not Included | 14 | Receptacle |
JST Sales America Inc. | Female Socket | Free Hanging (In-Line) | Crimp | 1 | 0.098 in | 2.5 mm | Natural | Polyamide (PA66) Nylon 6/6 | -25 °C | 85 °C | Contacts Not Included | 13 | Receptacle |
JST Sales America Inc. | Female Socket | Free Hanging (In-Line) | Crimp | 1 | 0.098 in | 2.5 mm | Natural | Polyamide (PA66) Nylon 6/6 | -25 °C | 85 °C | Contacts Not Included | 9 | Receptacle |
JST Sales America Inc. | Female Socket | Free Hanging (In-Line) | Crimp | 1 | 0.098 in | 2.5 mm | Natural | Polyamide (PA66) Nylon 6/6 | -25 °C | 85 °C | Contacts Not Included | 11 | Receptacle |
JST Sales America Inc. | Female Socket | Free Hanging (In-Line) | Crimp | 1 | 0.098 in | 2.5 mm | Natural | Polyamide (PA66) Nylon 6/6 | -25 °C | 85 °C | Contacts Not Included | 6 | Receptacle |
JST Sales America Inc. | Female Socket | Free Hanging (In-Line) | Crimp | 1 | 0.098 in | 2.5 mm | Natural | Polyamide (PA66) Nylon 6/6 | -25 °C | 85 °C | Contacts Not Included | 8 | Receptacle |
JST Sales America Inc. | Female Socket | Free Hanging (In-Line) | Crimp | 1 | 0.098 in | 2.5 mm | Natural | Polyamide (PA66) Nylon 6/6 | -25 °C | 85 °C | Contacts Not Included | 10 | Receptacle |
JST Sales America Inc. | Female Socket | Free Hanging (In-Line) | Crimp | 1 | 0.098 in | 2.5 mm | Natural | Polyamide (PA66) Nylon 6/6 | -25 °C | 85 °C | Contacts Not Included | Receptacle | |
JST Sales America Inc. | Female Socket | Free Hanging (In-Line) | Crimp | 1 | 0.098 in | 2.5 mm | Natural | Polyamide (PA66) Nylon 6/6 | -25 °C | 85 °C | Contacts Not Included | 4 | Receptacle |
JST Sales America Inc. | Female Socket | Free Hanging (In-Line) | Crimp | 1 | 0.098 in | 2.5 mm | Natural | Polyamide (PA66) Nylon 6/6 | -25 °C | 85 °C | Contacts Not Included | 2 | Receptacle |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.10 | |
| 10 | $ 0.07 | |||
| 25 | $ 0.06 | |||
| 50 | $ 0.05 | |||
| 100 | $ 0.05 | |||
| 250 | $ 0.04 | |||
| 500 | $ 0.04 | |||
| 1000 | $ 0.04 | |||
| 2500 | $ 0.03 | |||
Description
General part information
EHR Series
5 Rectangular Connectors - Housings Receptacle Natural 0.098" (2.50mm)
