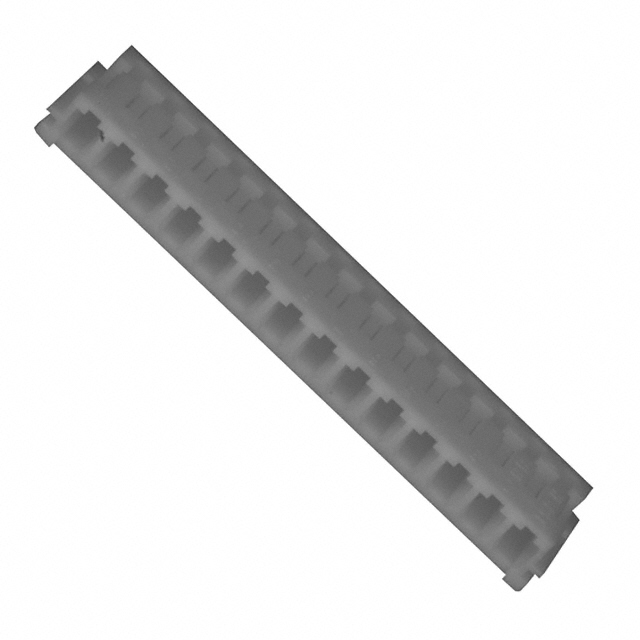

EHR-14

Active

JST Sales America Inc.

CONN RCPT HSG 14POS 2.50MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsJST Prefix Suffix Chart Datasheet

EHR-14

Active

JST Sales America Inc.

CONN RCPT HSG 14POS 2.50MM

Deep-Dive with AI

DocumentsJST Prefix Suffix Chart Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EHR-14

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	14
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.098 in
Pitch [x]	2.5 mm

EHR Series

Part	Contact Type	Mounting Type	Contact Termination	Number of Rows	Pitch [x]	Pitch [x]	Color	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Note	Number of Positions	Connector Type
JST Sales America Inc. EHR-14	Female Socket	Free Hanging (In-Line)	Crimp	1	0.098 in	2.5 mm	Natural	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C	Contacts Not Included	14	Receptacle
JST Sales America Inc. EHR-13	Female Socket	Free Hanging (In-Line)	Crimp	1	0.098 in	2.5 mm	Natural	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C	Contacts Not Included	13	Receptacle
JST Sales America Inc. EHR-9	Female Socket	Free Hanging (In-Line)	Crimp	1	0.098 in	2.5 mm	Natural	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C	Contacts Not Included	9	Receptacle
JST Sales America Inc. EHR-11	Female Socket	Free Hanging (In-Line)	Crimp	1	0.098 in	2.5 mm	Natural	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C	Contacts Not Included	11	Receptacle
JST Sales America Inc. EHR-6	Female Socket	Free Hanging (In-Line)	Crimp	1	0.098 in	2.5 mm	Natural	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C	Contacts Not Included	6	Receptacle
JST Sales America Inc. EHR-8	Female Socket	Free Hanging (In-Line)	Crimp	1	0.098 in	2.5 mm	Natural	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C	Contacts Not Included	8	Receptacle
JST Sales America Inc. EHR-10	Female Socket	Free Hanging (In-Line)	Crimp	1	0.098 in	2.5 mm	Natural	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C	Contacts Not Included	10	Receptacle
JST Sales America Inc. EHR-5	Female Socket	Free Hanging (In-Line)	Crimp	1	0.098 in	2.5 mm	Natural	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C	Contacts Not Included		Receptacle
JST Sales America Inc. EHR-4	Female Socket	Free Hanging (In-Line)	Crimp	1	0.098 in	2.5 mm	Natural	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C	Contacts Not Included	4	Receptacle
JST Sales America Inc. EHR-2	Female Socket	Free Hanging (In-Line)	Crimp	1	0.098 in	2.5 mm	Natural	Polyamide (PA66) Nylon 6/6	-25 °C	85 °C	Contacts Not Included	2	Receptacle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.31
		10	$ 0.26
		100	$ 0.20
		1000	$ 0.14
		5000	$ 0.12
		10000	$ 0.12

Description

General part information

EHR Series

14 Rectangular Connectors - Housings Receptacle Natural 0.098" (2.50mm)

Documents

Technical documentation and resources

JST Prefix Suffix Chart

Datasheet
