DSC04A065FP
ActiveDiodes Inc
SILICON CARBIDE RECTIFIER ITO-22
Deep-Dive with AI
Search across all available documentation for this part.
DSC04A065FP
ActiveDiodes Inc
SILICON CARBIDE RECTIFIER ITO-22
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DSC04A065FP |
|---|---|
| Capacitance @ Vr, F | 191 pF |
| Current - Average Rectified (Io) | 4 A |
| Current - Reverse Leakage @ Vr | 170 µA |
| Mounting Type | Through Hole |
| Operating Temperature - Junction [Max] | 175 ░C |
| Operating Temperature - Junction [Min] | -55 C |

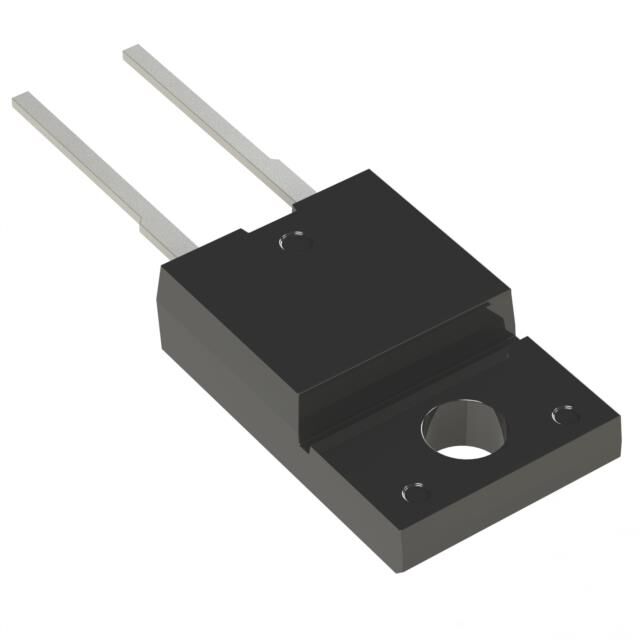

| Package / Case | TO-220-2 Full Pack, Isolated Tab |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | ITO-220AC (Type WX) |
| Technology | SiC (Silicon Carbide) Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 650 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.15 | |
| 50 | $ 0.92 | |||
| 100 | $ 0.76 | |||
| 500 | $ 0.69 | |||
Description
General part information
DSC04C065FP Series
Packaged in the robust industry-standard ITO220AC (Type WX-NC) package, the DSC04C065FP provides excellent reverse leakage stability at high temperatures. It is ideal for use as a rectifier, freewheel diode, or blocking diode in: power factor correction, industrial motor drivers, power inverters, SMPS, and UPS.
