DSC04A065D1-13

Active

Diodes Inc

SILICON CARBIDE RECTIFIER TO252

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Recommended Soldering Techniques +1

DSC04A065D1-13

Active

Diodes Inc

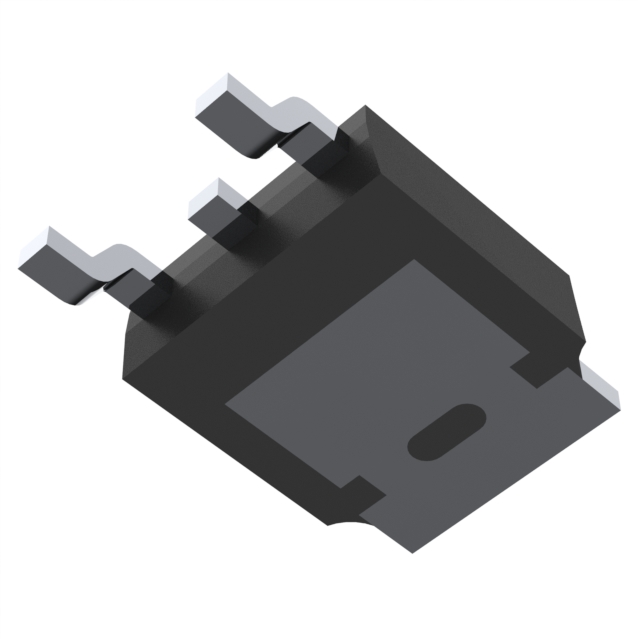

SILICON CARBIDE RECTIFIER TO252

Deep-Dive with AI

DocumentsDatasheet Recommended Soldering Techniques +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DSC04A065D1-13

Capacitance @ Vr, F	184 pF
Current - Average Rectified (Io)	4 A
Current - Reverse Leakage @ Vr	170 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C
Package / Case	SC-63, DPAK (2 Leads + Tab), TO-252-3
Speed	200 mA, 500 ns
Technology	SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	650 V
Voltage - Forward (Vf) (Max) @ If	1.5 V

DSC04C065FP Series

SiC Diode

Part	Speed	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Capacitance @ Vr, F	Technology	Current - Average Rectified (Io)	Supplier Device Package
Diodes Inc DSC04A065D1-13	200 mA 500 ns	170 µA	175 ░C	-55 C	DPAK (2 Leads + Tab) SC-63 TO-252-3	650 V	1.5 V	Surface Mount	184 pF	SiC (Silicon Carbide) Schottky	4 A
Diodes Inc DSC04A065	200 mA 500 ns	170 µA	175 ░C	-55 C	TO-220-2	650 V	1.5 V	Through Hole	187 pF	SiC (Silicon Carbide) Schottky	4 A	TO220AC (Type WX)
Diodes Inc DSC04A065FP	200 mA 500 ns	170 µA	175 ░C	-55 C	TO-220-2 Full Pack Isolated Tab	650 V	1.5 V	Through Hole	191 pF	SiC (Silicon Carbide) Schottky	4 A	ITO-220AC (Type WX)
Diodes Inc DSC04C065FP	200 mA 500 ns	170 µA	175 ░C	-55 C	TO-220-2 Full Pack Isolated Tab	650 V	1.7 V	Through Hole	152 pF	SiC (Silicon Carbide) Schottky	4 A	ITO-220AC (Type WX)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.89
		10	$ 2.40
		100	$ 1.91
		500	$ 1.62
		1000	$ 1.37
	Digi-Reel®	1	$ 2.89
		10	$ 2.40
		100	$ 1.91
		500	$ 1.62
		1000	$ 1.37
	Tape & Reel (TR)	2500	$ 0.64
		5000	$ 0.63

Description

General part information

DSC04C065FP Series

Packaged in the robust industry-standard ITO220AC (Type WX-NC) package, the DSC04C065FP provides excellent reverse leakage stability at high temperatures. It is ideal for use as a rectifier, freewheel diode, or blocking diode in: power factor correction, industrial motor drivers, power inverters, SMPS, and UPS.
