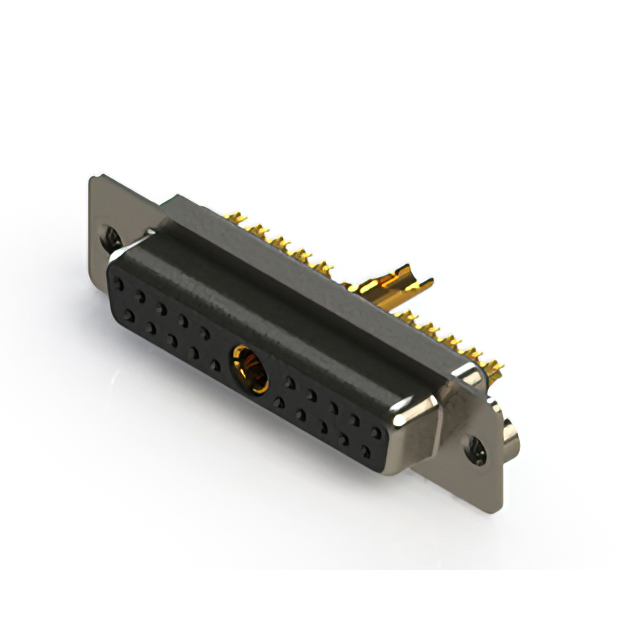

628-21W1622-2TA

Active

EDAC Inc.

CONN D-SUB RCPT 21POS SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

628-21W1622-2TA

Active

EDAC Inc.

CONN D-SUB RCPT 21POS SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628-21W1622-2TA

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5 A, 20 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded
Flange Feature	Board Side (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions [custom]	20
Number of Positions [custom]	21
Number of Positions [custom]	1
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	3 (DB, B) - 21W1
Voltage Rating	125 VDC

628-21W Series

...

Part	Contact Type	Material Flammability Rating	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Contact Material	Voltage Rating	Features	Connector Style	Termination	Shell Material, Finish	Number of Positions [custom]	Number of Positions [custom]	Dielectric Material	Current Rating (Amps)	Number of Rows	Color	Mounting Type	Shell Size, Connector Layout	Number of Positions [custom]	Number of Positions [custom]	Contact Finish Thickness	Flange Feature [custom]	Flange Feature [custom]	Number of Positions
EDAC Inc. 628-21W4624-4NB	Signal and Power	UL94 V-0	Receptacle Female Sockets	0.76 Ám	30 Áin	Board Side (M3)	-55 °C	125 °C	Gold	Copper Alloy	125 VDC	Shielded	Combo D-Sub	Solder	Nickel Plated Steel	17	4	Polyester Thermoplastic	5 A 40 A	2	Black	Through Hole	21WA4 4 (DC C)
EDAC Inc. 628-21W1224-2N2	Signal and Power	UL94 V-0	Receptacle Female Sockets			4-40 Board Side	-55 °C	125 °C	Gold	Copper Alloy	125 VDC	Shielded	Combo D-Sub	Solder	Nickel Plated Steel		1	Polyester Thermoplastic	5 A 20 A	2	Black	Through Hole	3 (DB B) - 21W1	20	21	Flash
EDAC Inc. 628-21W1224-5NC	Coax Signal	UL94 V-0	Receptacle Female Sockets				-55 °C	125 °C	Gold	Copper Alloy	125 VDC	Shielded	Combo D-Sub	Solder	Nickel Plated Steel			Polyester Thermoplastic		2	Black	Through Hole	3 (DB B) - 21W1			Flash	M3	M3	21
EDAC Inc. 628-21W1224-7NB	Coax Signal	UL94 V-0	Receptacle Female Sockets			Board Side (M3)	-55 °C	125 °C	Gold	Copper Alloy	125 VDC	Shielded	Combo D-Sub	Solder	Nickel Plated Steel			Polyester Thermoplastic		2	Black	Through Hole	3 (DB B) - 21W1			Flash			21
EDAC Inc. 628-21W4224-5NA	Coax Signal	UL94 V-0	Receptacle Female Sockets			Board Side (M3)	-55 °C	125 °C	Gold	Copper Alloy	125 VDC	Shielded	Combo D-Sub	Solder	Nickel Plated Steel			Polyester Thermoplastic		2	Black	Through Hole	21WA4 4 (DC C)			Flash			21
EDAC Inc. 628-21W1622-2TA	Signal and Power	UL94 V-0	Receptacle Female Sockets	0.76 Ám	30 Áin	Board Side (M3)	-55 °C	125 °C	Gold	Copper Alloy	125 VDC	Shielded	Combo D-Sub				1	Polyester Thermoplastic	5 A 20 A	2	Black	Free Hanging (In-Line)	3 (DB B) - 21W1	20	21
EDAC Inc. 628-21W4624-7N2	Coax Signal	UL94 V-0	Receptacle Female Sockets	0.76 Ám	30 Áin	4-40 Board Side	-55 °C	125 °C	Gold	Copper Alloy	125 VDC	Shielded	Combo D-Sub	Solder	Nickel Plated Steel			Polyester Thermoplastic		2	Black	Through Hole	21WA4 4 (DC C)						21
EDAC Inc. 628-21W1222-4T2	Signal and Power	UL94 V-0	Receptacle Female Sockets			4-40 Board Side	-55 °C	125 °C	Gold	Copper Alloy	125 VDC	Shielded	Combo D-Sub				1	Polyester Thermoplastic	5 A 40 A	2	Black	Free Hanging (In-Line)	3 (DB B) - 21W1	20	21	Flash
EDAC Inc. 628-21W1624-3NC	Signal and Power	UL94 V-0	Receptacle Female Sockets	0.76 Ám	30 Áin		-55 °C	125 °C	Gold	Copper Alloy	125 VDC	Shielded	Combo D-Sub	Solder	Nickel Plated Steel		1	Polyester Thermoplastic	5 A 30 A	2	Black	Through Hole	3 (DB B) - 21W1	20	21		M3	M3
EDAC Inc. 628-21W4224-7N3	Coax Signal	UL94 V-0	Receptacle Female Sockets			4-40 Board Side	-55 °C	125 °C	Gold	Copper Alloy	125 VDC	Shielded	Combo D-Sub	Solder	Nickel Plated Steel			Polyester Thermoplastic		2	Black	Through Hole	21WA4 4 (DC C)			Flash			21

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	400	$ 18.71

Description

General part information

628-21W Series

21 (20 + 1 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
