628-21W1224-5NC

Active

EDAC Inc.

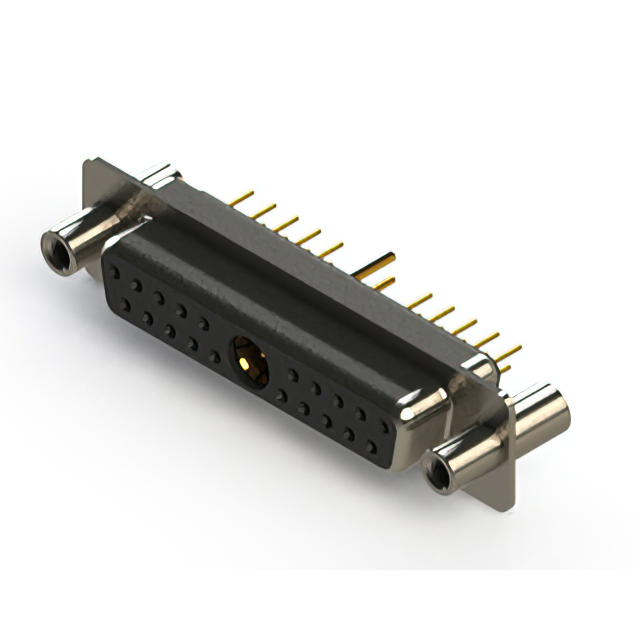

COMBINATION LAYOUT D SUB CONNECTOR, 628C SERIES, DB-21W1, RECEPTACLE, 21 CONTACTS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

628-21W1224-5NC

Active

EDAC Inc.

COMBINATION LAYOUT D SUB CONNECTOR, 628C SERIES, DB-21W1, RECEPTACLE, 21 CONTACTS

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628-21W1224-5NC

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal, Coax
Dielectric Material	Polyester Thermoplastic
Features	Shielded
Flange Feature [custom]	M3
Flange Feature [custom]	M3
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	21
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	3 (DB, B) - 21W1
Termination	Solder
Voltage Rating	125 VDC

628-21W Series

...

Part	Contact Type	Material Flammability Rating	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Contact Material	Voltage Rating	Features	Connector Style	Termination	Shell Material, Finish	Number of Positions [custom]	Number of Positions [custom]	Dielectric Material	Current Rating (Amps)	Number of Rows	Color	Mounting Type	Shell Size, Connector Layout	Number of Positions [custom]	Number of Positions [custom]	Contact Finish Thickness	Flange Feature [custom]	Flange Feature [custom]	Number of Positions
EDAC Inc. 628-21W4624-4NB	Signal and Power	UL94 V-0	Receptacle Female Sockets	0.76 Ám	30 Áin	Board Side (M3)	-55 °C	125 °C	Gold	Copper Alloy	125 VDC	Shielded	Combo D-Sub	Solder	Nickel Plated Steel	17	4	Polyester Thermoplastic	5 A 40 A	2	Black	Through Hole	21WA4 4 (DC C)
EDAC Inc. 628-21W1224-2N2	Signal and Power	UL94 V-0	Receptacle Female Sockets			4-40 Board Side	-55 °C	125 °C	Gold	Copper Alloy	125 VDC	Shielded	Combo D-Sub	Solder	Nickel Plated Steel		1	Polyester Thermoplastic	5 A 20 A	2	Black	Through Hole	3 (DB B) - 21W1	20	21	Flash
EDAC Inc. 628-21W1224-5NC	Coax Signal	UL94 V-0	Receptacle Female Sockets				-55 °C	125 °C	Gold	Copper Alloy	125 VDC	Shielded	Combo D-Sub	Solder	Nickel Plated Steel			Polyester Thermoplastic		2	Black	Through Hole	3 (DB B) - 21W1			Flash	M3	M3	21
EDAC Inc. 628-21W1224-7NB	Coax Signal	UL94 V-0	Receptacle Female Sockets			Board Side (M3)	-55 °C	125 °C	Gold	Copper Alloy	125 VDC	Shielded	Combo D-Sub	Solder	Nickel Plated Steel			Polyester Thermoplastic		2	Black	Through Hole	3 (DB B) - 21W1			Flash			21
EDAC Inc. 628-21W4224-5NA	Coax Signal	UL94 V-0	Receptacle Female Sockets			Board Side (M3)	-55 °C	125 °C	Gold	Copper Alloy	125 VDC	Shielded	Combo D-Sub	Solder	Nickel Plated Steel			Polyester Thermoplastic		2	Black	Through Hole	21WA4 4 (DC C)			Flash			21
EDAC Inc. 628-21W1622-2TA	Signal and Power	UL94 V-0	Receptacle Female Sockets	0.76 Ám	30 Áin	Board Side (M3)	-55 °C	125 °C	Gold	Copper Alloy	125 VDC	Shielded	Combo D-Sub				1	Polyester Thermoplastic	5 A 20 A	2	Black	Free Hanging (In-Line)	3 (DB B) - 21W1	20	21
EDAC Inc. 628-21W4624-7N2	Coax Signal	UL94 V-0	Receptacle Female Sockets	0.76 Ám	30 Áin	4-40 Board Side	-55 °C	125 °C	Gold	Copper Alloy	125 VDC	Shielded	Combo D-Sub	Solder	Nickel Plated Steel			Polyester Thermoplastic		2	Black	Through Hole	21WA4 4 (DC C)						21
EDAC Inc. 628-21W1222-4T2	Signal and Power	UL94 V-0	Receptacle Female Sockets			4-40 Board Side	-55 °C	125 °C	Gold	Copper Alloy	125 VDC	Shielded	Combo D-Sub				1	Polyester Thermoplastic	5 A 40 A	2	Black	Free Hanging (In-Line)	3 (DB B) - 21W1	20	21	Flash
EDAC Inc. 628-21W1624-3NC	Signal and Power	UL94 V-0	Receptacle Female Sockets	0.76 Ám	30 Áin		-55 °C	125 °C	Gold	Copper Alloy	125 VDC	Shielded	Combo D-Sub	Solder	Nickel Plated Steel		1	Polyester Thermoplastic	5 A 30 A	2	Black	Through Hole	3 (DB B) - 21W1	20	21		M3	M3
EDAC Inc. 628-21W4224-7N3	Coax Signal	UL94 V-0	Receptacle Female Sockets			4-40 Board Side	-55 °C	125 °C	Gold	Copper Alloy	125 VDC	Shielded	Combo D-Sub	Solder	Nickel Plated Steel			Polyester Thermoplastic		2	Black	Through Hole	21WA4 4 (DC C)			Flash			21

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 9.19
Newark	Each	100	$ 9.84
		250	$ 9.60
		500	$ 9.25

Description

General part information

628-21W Series

21 (20 + 1 Coax) Position D-Sub, Combo Receptacle, Female Sockets Connector
