HW-04-17-T-S-315-095

Active

Samtec Inc.

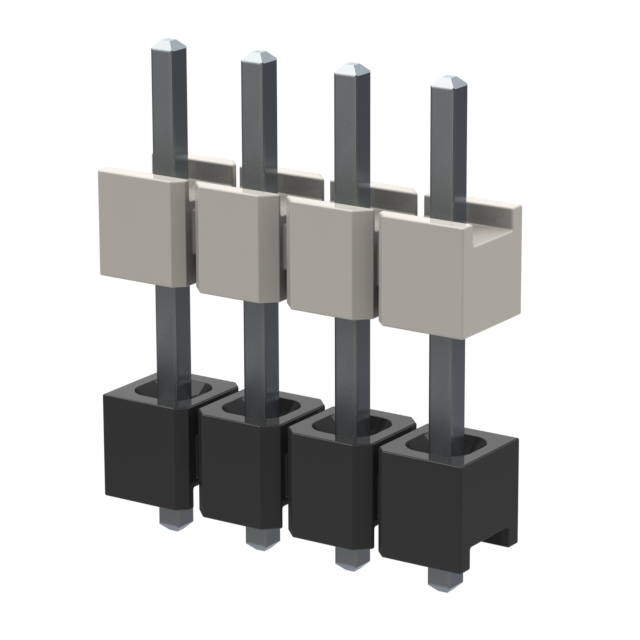

CONN HDR 4POS 0.1 STACK T/H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HW-04-17-T-S-315-095

Active

Samtec Inc.

CONN HDR 4POS 0.1 STACK T/H

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HW-04-17-T-S-315-095

Color	Black
Contact Finish - Post (Mating)	Tin
Length - Overall Pin	12.192 mm
Length - Overall Pin [x]	0.48 in
Length - Post (Mating) [x]	1.778 mm
Length - Post (Mating) [x]	0.07 in
Length - Stack Height [x]	0.315 in
Length - Stack Height [x]	8 mm
Length - Tail	2.413 mm
Length - Tail	0.095 in
Mounting Type	Through Hole
Number of Positions	4
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

HW-04-17 Series

Part	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Color	Contact Finish - Post (Mating)	Number of Positions	Length - Overall Pin [x]	Length - Overall Pin [x]	Pitch [x]	Pitch [x]	Number of Rows	Row Spacing [x]	Row Spacing	Length - Stack Height [x]	Length - Stack Height [x]	Mounting Type	Termination	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Length - Stack Height [z]	Length - Stack Height [z]	Length - Tail	Length - Tail	Length - Overall Pin
Samtec Inc. HW-04-17-F-D-272-SM	0.143 in	3.632 mm	Black	Gold	8	0.415 in	10.541 mm	2.54 mm	0.1 in	2	0.1 in	2.54 mm	0.272 in	6.909 mm	Surface Mount	Solder	3 Áin	0.076 Ám
Samtec Inc. HW-04-17-T-D-285-SM	0.13 in	3.302 mm	Black	Tin	8	0.415 in	10.541 mm	2.54 mm	0.1 in	2	0.1 in	2.54 mm			Surface Mount	Solder			7.239 mm	0.285 in
Samtec Inc. HW-04-17-L-S-250-SM	0.165 in	4.191 mm	Black	Gold	4	0.415 in	10.541 mm	2.54 mm	0.1 in	1			0.25 in	6.35 mm	Surface Mount	Solder	10 Áin	0.25 Ám
Samtec Inc. HW-04-17-G-S-250-SM	0.165 in	4.191 mm	Black	Gold	4	0.415 in	10.541 mm	2.54 mm	0.1 in	1			0.25 in	6.35 mm	Surface Mount	Solder	10 Áin	0.25 Ám
Samtec Inc. HW-04-17-T-D-313-SM	0.102 in	2.591 mm	Black	Tin	8	0.415 in	10.541 mm	2.54 mm	0.1 in	2	0.1 in	2.54 mm			Surface Mount	Solder			7.95 mm	0.313 in
Samtec Inc. HW-04-17-F-D-270-SM	0.145 in	3.683 mm	Black	Gold	8	0.415 in	10.541 mm	2.54 mm	0.1 in	2	0.1 in	2.54 mm	0.27 in	6.858 mm	Surface Mount	Solder	3 Áin	0.076 Ám
Samtec Inc. HW-04-17-G-D-250-SM	0.165 in	4.191 mm	Black	Gold	8	0.415 in	10.541 mm	2.54 mm	0.1 in	2	0.1 in	2.54 mm	0.25 in	6.35 mm	Surface Mount	Solder	10 Áin	0.25 Ám
Samtec Inc. HW-04-17-T-S-315-095	0.07 in	1.778 mm	Black	Tin	4	0.48 in		2.54 mm	0.1 in	1			0.315 in	8 mm	Through Hole	Solder					2.413 mm	0.095 in	12.192 mm
Samtec Inc. HW-04-17-F-S-250-SM-A	0.165 in	4.191 mm	Black	Gold	4	0.415 in	10.541 mm	2.54 mm	0.1 in	1			0.25 in	6.35 mm	Surface Mount	Solder	3 Áin	0.076 Ám
Samtec Inc. HW-04-17-L-S-314-SM-A	0.101 in	2.565 mm	Black	Gold	4	0.415 in	10.541 mm	2.54 mm	0.1 in	1			0.314 in	7.976 mm	Surface Mount	Solder	10 Áin	0.25 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.59

Description

General part information

HW-04-17 Series

4 Position Header Spacer Connector 0.100" (2.54mm) Tin Through Hole
