HW-04-17 Series

Catalog

CONN HDR 8POS 0.1 STACK SMD GOLD

Part	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Color	Contact Finish - Post (Mating)	Number of Positions	Length - Overall Pin [x]	Length - Overall Pin [x]	Pitch [x]	Pitch [x]	Number of Rows	Row Spacing [x]	Row Spacing	Length - Stack Height [x]	Length - Stack Height [x]	Mounting Type	Termination	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Length - Stack Height [z]	Length - Stack Height [z]	Length - Tail	Length - Tail	Length - Overall Pin
Samtec Inc. HW-04-17-F-D-272-SM	0.143 in	3.632 mm	Black	Gold	8	0.415 in	10.541 mm	2.54 mm	0.1 in	2	0.1 in	2.54 mm	0.272 in	6.909 mm	Surface Mount	Solder	3 Áin	0.076 Ám
Samtec Inc. HW-04-17-T-D-285-SM	0.13 in	3.302 mm	Black	Tin	8	0.415 in	10.541 mm	2.54 mm	0.1 in	2	0.1 in	2.54 mm			Surface Mount	Solder			7.239 mm	0.285 in
Samtec Inc. HW-04-17-L-S-250-SM	0.165 in	4.191 mm	Black	Gold	4	0.415 in	10.541 mm	2.54 mm	0.1 in	1			0.25 in	6.35 mm	Surface Mount	Solder	10 Áin	0.25 Ám
Samtec Inc. HW-04-17-G-S-250-SM	0.165 in	4.191 mm	Black	Gold	4	0.415 in	10.541 mm	2.54 mm	0.1 in	1			0.25 in	6.35 mm	Surface Mount	Solder	10 Áin	0.25 Ám
Samtec Inc. HW-04-17-T-D-313-SM	0.102 in	2.591 mm	Black	Tin	8	0.415 in	10.541 mm	2.54 mm	0.1 in	2	0.1 in	2.54 mm			Surface Mount	Solder			7.95 mm	0.313 in
Samtec Inc. HW-04-17-F-D-270-SM	0.145 in	3.683 mm	Black	Gold	8	0.415 in	10.541 mm	2.54 mm	0.1 in	2	0.1 in	2.54 mm	0.27 in	6.858 mm	Surface Mount	Solder	3 Áin	0.076 Ám
Samtec Inc. HW-04-17-G-D-250-SM	0.165 in	4.191 mm	Black	Gold	8	0.415 in	10.541 mm	2.54 mm	0.1 in	2	0.1 in	2.54 mm	0.25 in	6.35 mm	Surface Mount	Solder	10 Áin	0.25 Ám
Samtec Inc. HW-04-17-T-S-315-095	0.07 in	1.778 mm	Black	Tin	4	0.48 in		2.54 mm	0.1 in	1			0.315 in	8 mm	Through Hole	Solder					2.413 mm	0.095 in	12.192 mm
Samtec Inc. HW-04-17-F-S-250-SM-A	0.165 in	4.191 mm	Black	Gold	4	0.415 in	10.541 mm	2.54 mm	0.1 in	1			0.25 in	6.35 mm	Surface Mount	Solder	3 Áin	0.076 Ám

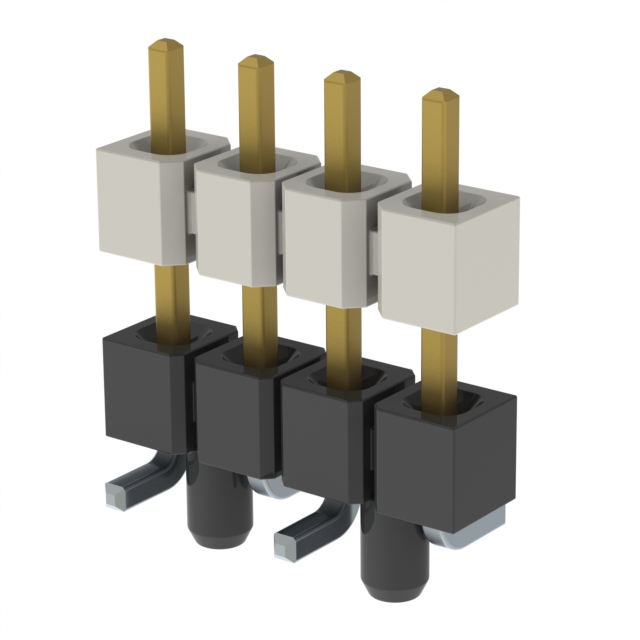

Samtec Inc. HW-04-17-L-S-314-SM-A	0.101 in	2.565 mm	Black	Gold	4	0.415 in	10.541 mm	2.54 mm	0.1 in	1			0.314 in	7.976 mm	Surface Mount	Solder	10 Áin	0.25 Ám
