Specification	LM5575BLDT/NOPB

Board Type	Partially Populated - Main IC Only
Contents	Partially Populated Board(s) - Main IC/Module/Part Not Included
Frequency - Switching	500 kHz
Main Purpose	DC/DC, Step Down
Regulator Topology	Buck
Supplied Contents	Board(s)
Utilized IC / Part	LM5575

LM5575 Series

Part	Output Configuration	Current - Output	Voltage - Output (Min/Fixed)	Synchronous Rectifier	Topology	Voltage - Output (Max)	Qualification	Package Name	Grade	Mounting Type	Frequency - Switching (Min)	Frequency - Switching (Max)	Function	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Input (Min)	Output Type	Number of Outputs	Voltage - Input (Max)	Package Length	Package Width	Total Output Count	Non-Isolated Output Count	Supplied Contents	Board Type	Utilized IC / Part	Regulator Topology	Main Purpose	Voltage - Input (Maximum)	Voltage - Input (Minimum)	Voltage - Output (Min)	Contents	Voltage - Output	Frequency - Switching
Texas Instruments LM5575Q0MHX/NOPB	Positive	1.5 A	1.225 V	No	Buck	70 V	AEC-Q100	16-HTSSOP 16-PowerTSSOP	Automotive	Surface Mount	50 kHz	500 kHz	Step-Down	-40 °C	150 °C	6 V	Adjustable	1	75 V	0.173 in	4.4 mm
Texas Instruments LM5575BLDT		1.5 A				70 V											Non-Isolated					1	1 count	Board(s)	Partially Populated - Main IC Only	LM5575	Buck	DC/DC Step Down	75 V	6 V	1.23 V	Partially Populated Board(s) - Main IC/Module/Part Not Included
Texas Instruments LM5575MH/NOPB	Positive	1.5 A	1.225 V	No	Buck	70 V		16-HTSSOP 16-PowerTSSOP		Surface Mount	50 kHz	500 kHz	Step-Down	-40 °C	125 °C	6 V	Adjustable	1	75 V	0.173 in	4.4 mm
Texas Instruments LM5575MHX/NOPB	Positive	1.5 A	1.225 V	No	Buck	70 V		16-HTSSOP 16-PowerTSSOP		Surface Mount	50 kHz	500 kHz	Step-Down	-40 °C	125 °C	6 V	Adjustable	1	75 V	0.173 in	4.4 mm
Texas Instruments LM5575QMH/NOPB	Positive	1.5 A	1.225 V	No	Buck	70 V	AEC-Q100	16-HTSSOP 16-PowerTSSOP	Automotive	Surface Mount	50 kHz	500 kHz	Step-Down	-40 °C	125 °C	6 V	Adjustable	1	75 V	0.173 in	4.4 mm
Texas Instruments LM5575MH/NOPB	Positive	1.5 A	1.225 V	No	Buck	70 V		16-HTSSOP 16-PowerTSSOP		Surface Mount	50 kHz	500 kHz	Step-Down	-40 °C	125 °C	6 V	Adjustable	1	75 V	0.173 in	4.4 mm
Texas Instruments LM5575MH	Positive	1.5 A	1.225 V	No	Buck	70 V		16-HTSSOP 16-PowerTSSOP		Surface Mount	50 kHz	500 kHz	Step-Down	-40 °C	125 °C	6 V	Adjustable	1	75 V	0.173 in	4.4 mm

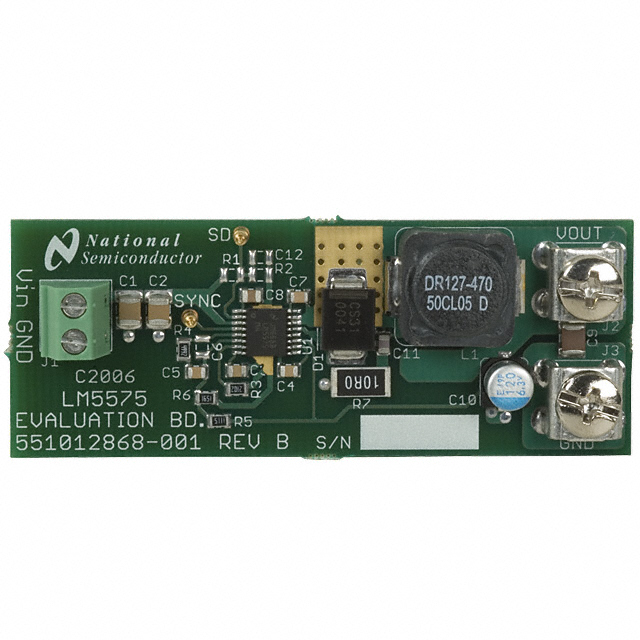

Texas Instruments LM5575EVAL		1.5 A															Non-Isolated					1	1 count	Board(s)	Fully Populated	LM5575	Buck	DC/DC Step Down	75 V	7 V		Board	5 VDC	300 kHz

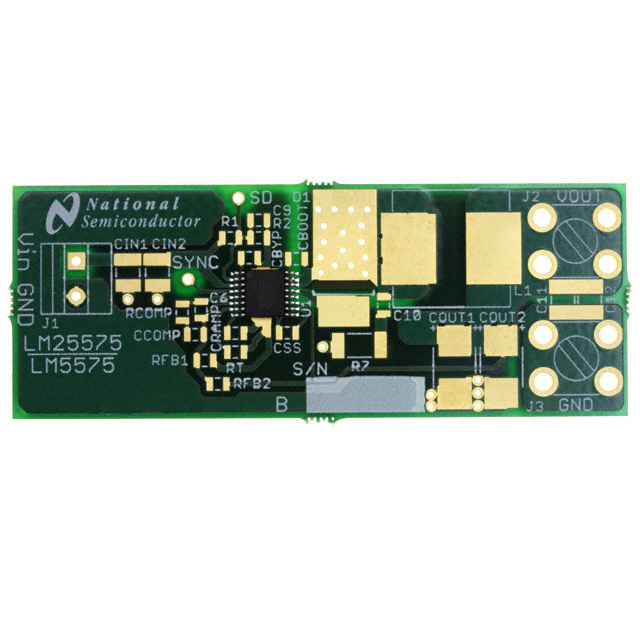

Texas Instruments LM5575BLDT/NOPB																								Board(s)	Partially Populated - Main IC Only	LM5575	Buck	DC/DC Step Down				Partially Populated Board(s) - Main IC/Module/Part Not Included		500 kHz
Texas Instruments LM5575BLDT/NOPB																								Board(s)	Partially Populated - Main IC Only	LM5575	Buck	DC/DC Step Down				Partially Populated Board(s) - Main IC/Module/Part Not Included		500 kHz
