09120033016

Active

HARTING Technology Group

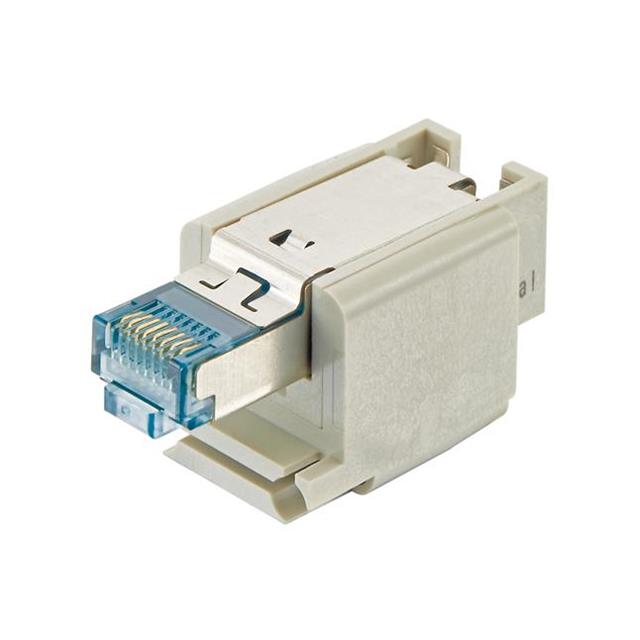

HAN-BRID RJ45 C (CAT6A RJ45 GIGALINK-PIERCING 24-27AWG, 8WIRE) + 2 10AMP CONTACTS (NOT INCLUDED)

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN-BRID RJ45 C (CAT6A RJ45 GIGALINK-PIERCING 24-27AWG, 8WIRE) + 2 10AMP CONTACTS (NOT INCLUDED)

Technical Specifications

Parameters and characteristics for this part

Specification	09120033016

Color	Gray
Connector Type	Insert, RJ45
Current Rating (Amps)	10 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	8p8c
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	3 A
Termination Style	IDC
Voltage Rating	24 VDC

Part	Color	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Termination Style	Connector Type	Voltage Rating	Material Flammability Rating	Housing Material	Number of Positions	Contact Type	Size	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
HARTING Technology Group 09120033031	Gray	Male	125 °C	-40 °C	10 A	IDC	Insert RJ45	25 V	UL94 V-0	Polycarbonate (PC)	8p8c
HARTING Technology Group 09120033051	Gray	Male	125 °C	-40 °C	40 A	Crimp	Insert without Contacts	400 V	UL94 V-0	Polycarbonate (PC)		Han® C	3 A	Ground	3	0
HARTING Technology Group 09120033021	Gray	Male	125 °C	-40 °C	10 A	IDC	Insert RJ45	25 V	UL94 V-0	Polycarbonate (PC)	8p8c
HARTING Technology Group 09120033015	Gray	Male	125 °C	-40 °C	10 A	IDC	Insert RJ45	24 VDC	UL94 V-0	Polycarbonate (PC)	8p8c		3 A
HARTING Technology Group 09120033016	Gray	Male	125 °C	-40 °C	10 A	IDC	Insert RJ45	24 VDC	UL94 V-0	Polycarbonate (PC)	8p8c		3 A
HARTING Technology Group 09120033151	Gray	Female	125 °C	-40 °C	40 A	Crimp	Insert without Contacts	400 V	UL94 V-0	Polycarbonate (PC)		Han® C	3 A	Ground	3	0
HARTING Technology Group 09120033013
HARTING Technology Group 09120033011	Gray	Male	70 °C	-40 °C	10 A	IDC	Insert RJ45	25 V	UL94 V-0	Polycarbonate (PC)	8p8c

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert, RJ45 Gray 8p8c Position IDC
