09120033051

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN Q SERIES, INSERT, 3+PE CONTACTS, 3A, PLUG

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN Q SERIES, INSERT, 3+PE CONTACTS, 3A, PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	09120033051

Color	Gray
Connector Type	Insert without Contacts
Contact Type	Han® C
Current Rating (Amps)	40 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions [custom]	Ground
Number of Positions [custom]	3
Number of Positions [custom]	0
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	3 A
Termination Style	Crimp
Voltage Rating	400 V

Part	Color	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Termination Style	Connector Type	Voltage Rating	Material Flammability Rating	Housing Material	Number of Positions	Contact Type	Size	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
HARTING Technology Group 09120033031	Gray	Male	125 °C	-40 °C	10 A	IDC	Insert RJ45	25 V	UL94 V-0	Polycarbonate (PC)	8p8c
HARTING Technology Group 09120033051	Gray	Male	125 °C	-40 °C	40 A	Crimp	Insert without Contacts	400 V	UL94 V-0	Polycarbonate (PC)		Han® C	3 A	Ground	3	0
HARTING Technology Group 09120033021	Gray	Male	125 °C	-40 °C	10 A	IDC	Insert RJ45	25 V	UL94 V-0	Polycarbonate (PC)	8p8c
HARTING Technology Group 09120033015	Gray	Male	125 °C	-40 °C	10 A	IDC	Insert RJ45	24 VDC	UL94 V-0	Polycarbonate (PC)	8p8c		3 A
HARTING Technology Group 09120033016	Gray	Male	125 °C	-40 °C	10 A	IDC	Insert RJ45	24 VDC	UL94 V-0	Polycarbonate (PC)	8p8c		3 A
HARTING Technology Group 09120033151	Gray	Female	125 °C	-40 °C	40 A	Crimp	Insert without Contacts	400 V	UL94 V-0	Polycarbonate (PC)		Han® C	3 A	Ground	3	0
HARTING Technology Group 09120033013
HARTING Technology Group 09120033011	Gray	Male	70 °C	-40 °C	10 A	IDC	Insert RJ45	25 V	UL94 V-0	Polycarbonate (PC)	8p8c

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

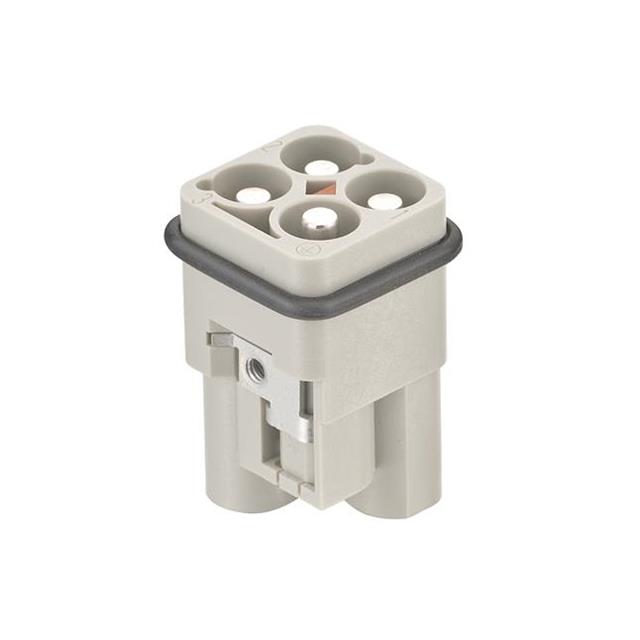

The 09120033051 from Harting is a Han®Q male insert. It is suitable for Han® C crimp contacts.
