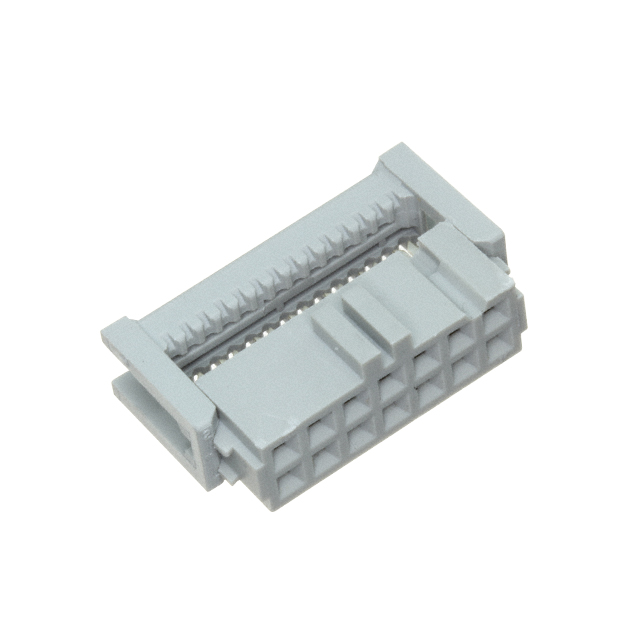

D89114-0101HK

Active

3M (TC)

80001204041 D89114-0101HK =14/SKT/PRASB/CB/NO SR/15AVG/ROHS

Search across all available documentation for this part.

Active

3M (TC)

80001204041 D89114-0101HK =14/SKT/PRASB/CB/NO SR/15AVG/ROHS

Technical Specifications

Parameters and characteristics for this part

Part	Pitch - Connector	Pitch - Connector	Contact Finish Thickness	Contact Finish Thickness	Pitch - Cable	Pitch - Cable	Number of Rows	Cable Termination	Shielding	Number of Positions	Connector Type	Length	Length	Length	Contact Finish	Features	Color	Pitch [x]	Pitch [x]	Mounting Type	Contact Type	Wire Type	Row Spacing [x]	Row Spacing
3M (TC) D89114-0031HK-3365/14-D-3	0.1 in	2.54 mm	15 µin	0.38 µm	0.05 "	1.27 mm	2	IDC	Unshielded	14	Socket to Socket	3 "	76.2 mm	0.25 ft	Gold
3M (TC) D89114-0101HK			15 µin	0.38 µm			2	IDC		14	Receptacle				Gold	Feed Through Polarizing Key	Gray	2.54 mm	0.1 in	Free Hanging (In-Line)	Female Socket	Ribbon Cable	0.1 in	2.54 mm
3M (TC) D89114-0001HK			15 µin	0.38 µm			2	IDC		14	Receptacle				Gold	Feed Through	Gray	2.54 mm	0.1 in	Free Hanging (In-Line)	Female Socket	Ribbon Cable	0.1 in	2.54 mm
3M (TC) D89114-0131HK-3365/14-D-3	0.1 in	2.54 mm	15 µin	0.38 µm	0.05 "	1.27 mm	2	IDC	Unshielded	14	Socket to Socket	3 "	76.2 mm	0.25 ft	Gold
3M (TC) D89114-0031HK			15 µin	0.38 µm			2	IDC		14	Receptacle				Gold	Feed Through	Gray	2.54 mm	0.1 in	Free Hanging (In-Line)	Female Socket	Ribbon Cable	0.1 in	2.54 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 Position Rectangular Receptacle Connector IDC Gold 26-28 AWG
