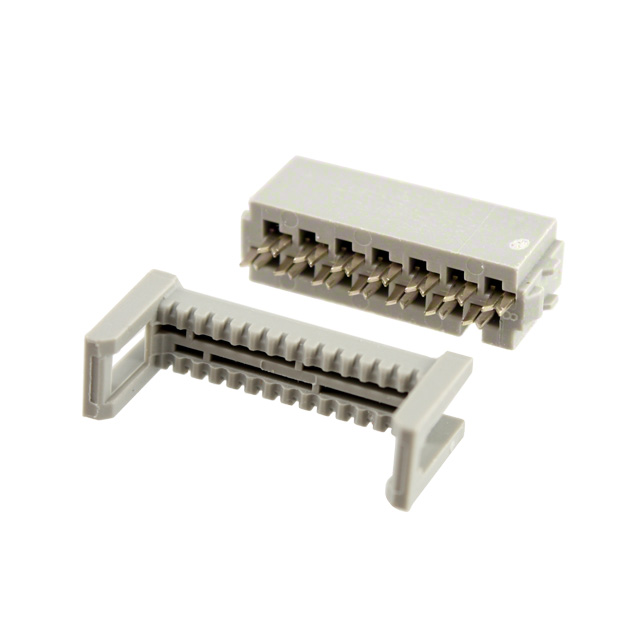

D89114-0031HK

Active

3M (TC)

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 14 CONTACTS, CABLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog

D89114-0031HK

Active

3M (TC)

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 14 CONTACTS, CABLE MOUNT

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D89114-0031HK

Cable Termination	IDC
Color	Gray
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Type	Female Socket
Features	Feed Through
Mounting Type	Free Hanging (In-Line)
Number of Positions	14
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Type	Ribbon Cable

D89114 Series

Part	Pitch - Connector	Pitch - Connector	Contact Finish Thickness	Contact Finish Thickness	Pitch - Cable	Pitch - Cable	Number of Rows	Cable Termination	Shielding	Number of Positions	Connector Type	Length	Length	Length	Contact Finish	Features	Color	Pitch [x]	Pitch [x]	Mounting Type	Contact Type	Wire Type	Row Spacing [x]	Row Spacing
3M (TC) D89114-0031HK-3365/14-D-3	0.1 in	2.54 mm	15 µin	0.38 µm	0.05 "	1.27 mm	2	IDC	Unshielded	14	Socket to Socket	3 "	76.2 mm	0.25 ft	Gold
3M (TC) D89114-0101HK			15 µin	0.38 µm			2	IDC		14	Receptacle				Gold	Feed Through Polarizing Key	Gray	2.54 mm	0.1 in	Free Hanging (In-Line)	Female Socket	Ribbon Cable	0.1 in	2.54 mm
3M (TC) D89114-0001HK			15 µin	0.38 µm			2	IDC		14	Receptacle				Gold	Feed Through	Gray	2.54 mm	0.1 in	Free Hanging (In-Line)	Female Socket	Ribbon Cable	0.1 in	2.54 mm
3M (TC) D89114-0131HK-3365/14-D-3	0.1 in	2.54 mm	15 µin	0.38 µm	0.05 "	1.27 mm	2	IDC	Unshielded	14	Socket to Socket	3 "	76.2 mm	0.25 ft	Gold
3M (TC) D89114-0031HK			15 µin	0.38 µm			2	IDC		14	Receptacle				Gold	Feed Through	Gray	2.54 mm	0.1 in	Free Hanging (In-Line)	Female Socket	Ribbon Cable	0.1 in	2.54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.58
		10	$ 1.38
		25	$ 1.32
		50	$ 1.29
		100	$ 1.23
		250	$ 1.11
		500	$ 1.02
		1000	$ 0.88
		3000	$ 0.82
Newark	Each	1000	$ 0.97

Description

General part information

D89114 Series

The D89 series IDC Ribbon Cable Socket with phosphor bronze contacts and a glass-filled polyester insulator. The double recessed cover for cable terminating from either side virtually eliminating the need for single recessed cover connectors.
