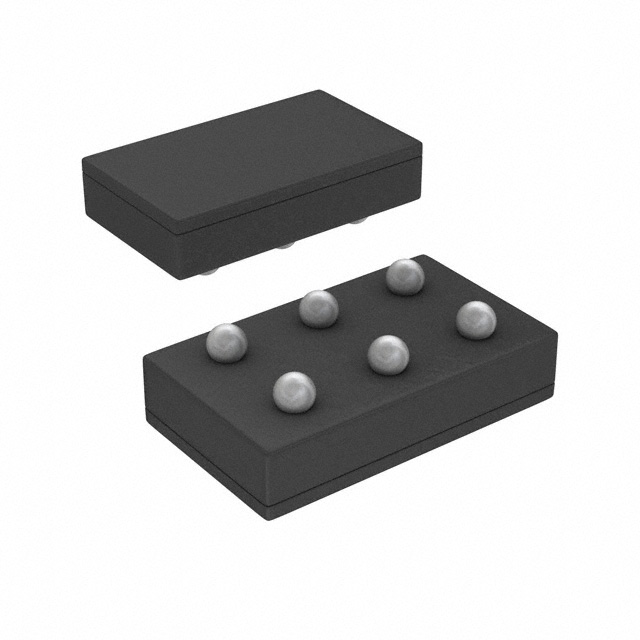

LM317LITPX/NOPB

Active

Texas Instruments

100-MA, 40-V, HIGH-PSRR, ADJUSTABLE LINEAR VOLTAGE REGULATOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAN-182 Improving Power Supply Reliability with IC Power Regulators (Rev. B)LM317L-N Wide VIN 100-mA Adjustable Voltage Regulator datasheet (Rev. L)+5

LM317LITPX/NOPB

Active

Texas Instruments

100-MA, 40-V, HIGH-PSRR, ADJUSTABLE LINEAR VOLTAGE REGULATOR

Deep-Dive with AI

DocumentsAN-182 Improving Power Supply Reliability with IC Power Regulators (Rev. B)LM317L-N Wide VIN 100-mA Adjustable Voltage Regulator datasheet (Rev. L)+5

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LM317LITPX/NOPB	LM317 Series

Board Type	-	Fully Populated
Channels per IC	-	1
Current - Output	100 mA	1.5 - 500 A
Current - Quiescent (Iq)	5 mA	2.5 - 12 mA
Mounting Type	Surface Mount	Through Hole, Surface Mount
Number of Regulators	1	1
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 - 0 °C
Output Configuration	Positive	Positive
Output Type	Adjustable	Adjustable
Package / Case	6-UFBGA, DSBGA	TO-39-3 Metal Can, TO-205AD, TO-243AA, 8-SOIC, TO-220-3, 6-UFBGA, DSBGA, TO-92-3, TO-3, TO-204AA, TO-261AA, TO-261-4, 8-TSSOP (0.173", 4.40mm Width), DPAK (2 Leads + Tab), SC-63, TO-252-3, TO-226-3, TO-92-3 (TO-226AA) Formed Leads, TO-263-4, D2PAK (3 Leads + Tab), TO-263AA, TO-220-3, Formed Leads, 6-VFBGA
Package / Case	-	3.9 mm
Package / Case	-	TO-226-3, TO-226AA
Protection Features	Over Current, Short Circuit, Over Temperature	Over Current, Short Circuit, Over Temperature
PSRR	-	64 dB
PSRR [Max]	80 dB	64 - 80 dB
PSRR [Min]	65 dB	57 - 65 dB
Regulator Type	-	Positive and Negative Adjustable
Supplied Contents	-	Board(s)
Supplier Device Package	6-DSBGA	SOT-89-3, 8-SOIC, TO-220-3, 6-DSBGA, TO-92-3, TO-3-2, SOT-223-4, 8-TSSOP, TO-252-3, TO-263 (DDPAK-3), LF01
Utilized IC / Part	-	LM337-N, LM317A
Voltage - Input (Max)	-	37 - 60 V
Voltage - Output	-	-5 V
Voltage - Output	-	5 V
Voltage - Output (Max) [Max]	37 V	32 - 57 V
Voltage - Output (Min/Fixed)	1.2 V	1.2 - 1.25 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.92
		10	$ 0.82
		25	$ 0.78
		100	$ 0.64
		250	$ 0.60
		500	$ 0.53
		1000	$ 0.42
	Digi-Reel®	1	$ 0.92
		10	$ 0.82
		25	$ 0.78
		100	$ 0.64
		250	$ 0.60
		500	$ 0.53
		1000	$ 0.42
	Tape & Reel (TR)	3000	$ 0.34
Texas Instruments	LARGE T&R	1	$ 0.68
		100	$ 0.52
		250	$ 0.39
		1000	$ 0.28

LM317 Series

EVAL BOARD FOR LM317A LM337-N

Part	Regulator Type	Voltage - Output [Min]	Voltage - Output [Max]	Channels per IC	Current - Output	Board Type	Utilized IC / Part	Supplied Contents	Number of Regulators	Operating Temperature [Min]	Operating Temperature [Max]	Current - Quiescent (Iq)	Output Type	Output Configuration	Mounting Type	Voltage - Output (Max) [Max]	Package / Case	PSRR [Min]	PSRR [Max]	Voltage - Output (Min/Fixed)	Protection Features	Voltage - Input (Max) [Max]	Supplier Device Package	Package / Case	PSRR	Package / Case
Texas Instruments LM317A-337N-EVM	Positive and Negative Adjustable	-5 V	5 V	1	1.5 A	Fully Populated	LM317A, LM337-N	Board(s)
Texas Instruments LM317H					1.5 A				1	0 °C	125 °C	10 mA	Adjustable	Positive	Through Hole	37 V	TO-205AD, TO-39-3 Metal Can	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit
Texas Instruments LM317H/NOPB					1.5 A				1	0 °C	125 °C	10 mA	Adjustable	Positive	Through Hole	37 V	TO-205AD, TO-39-3 Metal Can	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit
Texas Instruments LM317LCPK					100 mA				1	0 °C	125 °C	2.5 mA	Adjustable	Positive	Surface Mount	32 V	TO-243AA	65 dB	80 dB	1.2 V	Over Current, Over Temperature, Short Circuit	38 V	SOT-89-3
Texas Instruments LM317LID					100 mA				1	-40 °C	125 °C	2.5 mA	Adjustable	Positive	Surface Mount	32 V	8-SOIC	65 dB	80 dB	1.2 V	Over Current, Over Temperature, Short Circuit	38 V	8-SOIC	3.9 mm
Texas Instruments LM317T/NOPB					1.5 A				1	0 °C	125 °C	10 mA	Adjustable	Positive	Through Hole	37 V	TO-220-3			1.25 V	Over Current, Over Temperature, Short Circuit	37 V	TO-220-3		64 dB
Texas Instruments LM317LITP/NOPB					100 mA				1	-40 °C	125 °C	5 mA	Adjustable	Positive	Surface Mount	37 V	6-UFBGA, DSBGA	65 dB	80 dB	1.2 V	Over Current, Over Temperature, Short Circuit		6-DSBGA
Texas Instruments LM317LZ/LFT7					100 mA				1	-40 °C	125 °C	5 mA	Adjustable	Positive	Through Hole	37 V	TO-92-3	65 dB	80 dB	1.2 V	Over Current, Over Temperature, Short Circuit		TO-92-3			TO-226-3, TO-226AA
Texas Instruments LM317HVK STEEL/NOPB					1.5 A				1	0 °C	125 °C	12 mA	Adjustable	Positive	Through Hole	57 V	TO-204AA, TO-3	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit	60 V	TO-3-2
Texas Instruments LM317LZ/LFT1					100 mA				1	-40 °C	125 °C	5 mA	Adjustable	Positive	Through Hole	37 V	TO-92-3	65 dB	80 dB	1.2 V	Over Current, Over Temperature, Short Circuit		TO-92-3			TO-226-3, TO-226AA
Texas Instruments LM317AT					1.5 A				1	-40 °C	125 °C	10 mA	Adjustable	Positive	Through Hole	37 V	TO-220-3	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit		TO-220-3
Texas Instruments LM317MDCYG3					500 mA				1	-40 °C	125 ¯C	10 mA	Adjustable	Positive	Surface Mount	37 V	TO-261-4, TO-261AA	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit		SOT-223-4
Texas Instruments LM317MDCYRG3					500 mA				1	-40 °C	125 ¯C	10 mA	Adjustable	Positive	Surface Mount	37 V	TO-261-4, TO-261AA	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit		SOT-223-4
Texas Instruments LM317LCDR					100 mA				1	0 °C	125 °C	2.5 mA	Adjustable	Positive	Surface Mount	32 V	8-SOIC	65 dB	80 dB	1.2 V	Over Current, Over Temperature, Short Circuit	38 V	8-SOIC	3.9 mm
Texas Instruments LM317LIPKG3					100 mA				1	-40 °C	125 °C	2.5 mA	Adjustable	Positive	Surface Mount	32 V	TO-243AA	65 dB	80 dB	1.2 V	Over Current, Over Temperature, Short Circuit	38 V	SOT-89-3
Texas Instruments LM317LCDRG4					100 mA				1	0 °C	125 °C	2.5 mA	Adjustable	Positive	Surface Mount	32 V	8-SOIC	65 dB	80 dB	1.2 V	Over Current, Over Temperature, Short Circuit	38 V	8-SOIC	3.9 mm
Texas Instruments LM317LIPWR					100 mA				1	-40 °C	125 °C	2.5 mA	Adjustable	Positive	Surface Mount	32 V	8-TSSOP (0.173", 4.40mm Width)	65 dB	80 dB	1.2 V	Over Current, Over Temperature, Short Circuit	38 V	8-TSSOP
Texas Instruments LM317AMDTX					1.5 A				1	-40 °C	125 °C	10 mA	Adjustable	Positive	Surface Mount	37 V	DPAK (2 Leads + Tab), SC-63, TO-252-3	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit		TO-252-3
Texas Instruments LM317MKTPRG3					500 mA				1	0 °C	125 ¯C	10 mA	Adjustable	Positive	Surface Mount	37 V	DPAK (2 Leads + Tab), SC-63, TO-252-3	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit		TO-252-3
Texas Instruments LM317LZ/LFT4					100 mA				1	-40 °C	125 °C	5 mA	Adjustable	Positive	Through Hole	37 V	TO-92-3	65 dB	80 dB	1.2 V	Over Current, Over Temperature, Short Circuit		TO-92-3			TO-226-3, TO-226AA
Texas Instruments LM317LILPR					100 mA				1	-40 °C	125 °C	2.5 mA	Adjustable	Positive	Through Hole	32 V	TO-226-3, TO-92-3 (TO-226AA) Formed Leads	65 dB	80 dB	1.2 V	Over Current, Over Temperature, Short Circuit	38 V	TO-92-3
Texas Instruments LM317AEMPX					1.5 A				1	-40 °C	125 °C	10 mA	Adjustable	Positive	Surface Mount	37 V	TO-261-4, TO-261AA	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit		SOT-223-4
Texas Instruments LM317AH/NOPB					1.5 A				1	-40 °C	125 °C	10 mA	Adjustable	Positive	Through Hole	37 V	TO-205AD, TO-39-3 Metal Can	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit
Texas Instruments LM317KCT					1.5 A				1	0 °C	125 °C	10 mA	Adjustable	Positive	Through Hole	37 V	TO-220-3	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit		TO-220-3
Texas Instruments LM317LCLP					100 mA				1	0 °C	125 °C	2.5 mA	Adjustable	Positive	Through Hole	32 V	TO-92-3	65 dB	80 dB	1.2 V	Over Current, Over Temperature, Short Circuit	38 V	TO-92-3			TO-226-3, TO-226AA
Texas Instruments LM317LCD					100 mA				1	0 °C	125 °C	2.5 mA	Adjustable	Positive	Surface Mount	32 V	8-SOIC	65 dB	80 dB	1.2 V	Over Current, Over Temperature, Short Circuit	38 V	8-SOIC	3.9 mm
Texas Instruments LM317MQKTPR					500 mA				1	-40 °C	125 ¯C	10 mA	Adjustable	Positive	Surface Mount	37 V	DPAK (2 Leads + Tab), SC-63, TO-252-3	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit		TO-252-3
Texas Instruments LM317KTTRG3					1.5 A				1	0 °C	125 °C	10 mA	Adjustable	Positive	Surface Mount	37 V	D2PAK (3 Leads + Tab), TO-263-4, TO-263AA	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit		TO-263 (DDPAK-3)
Texas Instruments LM317HVH/NOPB					1.5 A				1	0 °C	125 °C	12 mA	Adjustable	Positive	Through Hole	57 V	TO-205AD, TO-39-3 Metal Can	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit	60 V
Texas Instruments LM317AT/NOPB					1.5 A				1	-40 °C	125 °C	10 mA	Adjustable	Positive	Through Hole	37 V	TO-220-3	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit		TO-220-3
Texas Instruments LM317DCYR					1.5 A				1	0 °C	125 °C	10 mA	Adjustable	Positive	Surface Mount	37 V	TO-261-4, TO-261AA	57 dB	64 dB	1.25 V	Over Current, Over Temperature, Short Circuit		SOT-223-4
Texas Instruments LM317AMDTX/NOPB					1.5 A				1	-40 °C	125 °C	10 mA	Adjustable	Positive	Surface Mount	37 V	DPAK (2 Leads + Tab), SC-63, TO-252-3	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit		TO-252-3
Texas Instruments LM317LIDRG4					100 mA				1	-40 °C	125 °C	2.5 mA	Adjustable	Positive	Surface Mount	32 V	8-SOIC	65 dB	80 dB	1.2 V	Over Current, Over Temperature, Short Circuit	38 V	8-SOIC	3.9 mm
Texas Instruments LM317LIPW					100 mA				1	-40 °C	125 °C	2.5 mA	Adjustable	Positive	Surface Mount	32 V	8-TSSOP (0.173", 4.40mm Width)	65 dB	80 dB	1.2 V	Over Current, Over Temperature, Short Circuit	38 V	8-TSSOP
Texas Instruments LM317LMX					100 mA				1	-40 °C	125 °C	5 mA	Adjustable	Positive	Surface Mount	37 V	8-SOIC	65 dB	80 dB	1.2 V	Over Current, Over Temperature, Short Circuit		8-SOIC	3.9 mm
Texas Instruments LM317LIDR					100 mA				1	-40 °C	125 °C	2.5 mA	Adjustable	Positive	Surface Mount	32 V	8-SOIC	65 dB	80 dB	1.2 V	Over Current, Over Temperature, Short Circuit	38 V	8-SOIC	3.9 mm
Texas Instruments LM317MDTX/NOPB					500 mA				1	0 °C	125 ¯C	10 mA	Adjustable	Positive	Surface Mount	37 V	DPAK (2 Leads + Tab), SC-63, TO-252-3	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit	37 V	TO-252-3
Texas Instruments LM317LILP					100 mA				1	-40 °C	125 °C	2.5 mA	Adjustable	Positive	Through Hole	32 V	TO-92-3	65 dB	80 dB	1.2 V	Over Current, Over Temperature, Short Circuit	38 V	TO-92-3			TO-226-3, TO-226AA
Texas Instruments LM317EMPX/NOPB					1.5 A				1	0 °C	125 °C	10 mA	Adjustable	Positive	Surface Mount	37 V	TO-261-4, TO-261AA	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit	37 V	SOT-223-4
Texas Instruments LM317HVK STEEL					1.5 A				1	0 °C	125 °C	12 mA	Adjustable	Positive	Through Hole	57 V	TO-204AA, TO-3	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit	60 V	TO-3-2
Texas Instruments LM317KCSE3					1.5 A				1	0 °C	125 °C	10 mA	Adjustable	Positive	Through Hole	37 V	TO-220-3	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit		TO-220-3
Texas Instruments LM317AEMPX/NOPB					1.5 A				1	-40 °C	125 °C	10 mA	Adjustable	Positive	Surface Mount	37 V	TO-261-4, TO-261AA	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit		SOT-223-4
Texas Instruments LM317KC					1.5 A				1	0 °C	125 °C	10 mA	Adjustable	Positive	Through Hole	37 V	TO-220-3	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit		TO-220-3
Texas Instruments LM317AH					1.5 A				1	-40 °C	125 °C	10 mA	Adjustable	Positive	Through Hole	37 V	TO-205AD, TO-39-3 Metal Can	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit
Texas Instruments LM317DCYRG3					1.5 A				1	0 °C	125 °C	10 mA	Adjustable	Positive	Surface Mount	37 V	TO-261-4, TO-261AA	57 dB	64 dB	1.25 V	Over Current, Over Temperature, Short Circuit		SOT-223-4
Texas Instruments LM317LCPW					100 mA				1	0 °C	125 °C	2.5 mA	Adjustable	Positive	Surface Mount	32 V	8-TSSOP (0.173", 4.40mm Width)	65 dB	80 dB	1.2 V	Over Current, Over Temperature, Short Circuit	38 V	8-TSSOP
Texas Instruments LM317MQDCYRG3					500 mA				1	-40 °C	125 ¯C	10 mA	Adjustable	Positive	Surface Mount	37 V	TO-261-4, TO-261AA	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit		SOT-223-4
Texas Instruments LM317KTTR					1.5 A				1	0 °C	125 °C	10 mA	Adjustable	Positive	Surface Mount	37 V	D2PAK (3 Leads + Tab), TO-263-4, TO-263AA	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit		TO-263 (DDPAK-3)
Texas Instruments LM317LCLPRE3					100 mA				1	0 °C	125 °C	2.5 mA	Adjustable	Positive	Through Hole	32 V	TO-226-3, TO-92-3 (TO-226AA) Formed Leads	65 dB	80 dB	1.2 V	Over Current, Over Temperature, Short Circuit	38 V	TO-92-3
Texas Instruments LM317AMDT					1.5 A				1	-40 °C	125 °C	10 mA	Adjustable	Positive	Surface Mount	37 V	DPAK (2 Leads + Tab), SC-63, TO-252-3	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit		TO-252-3
Texas Instruments LM317EMP					1.5 A				1	0 °C	125 °C	10 mA	Adjustable	Positive	Surface Mount	37 V	TO-261-4, TO-261AA	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit	37 V	SOT-223-4
Texas Instruments LM317LZ/LFT3					100 mA				1	-40 °C	125 °C	5 mA	Adjustable	Positive	Through Hole	37 V	TO-92-3	65 dB	80 dB	1.2 V	Over Current, Over Temperature, Short Circuit		TO-92-3			TO-226-3, TO-226AA
Texas Instruments LM317MQDCYR					500 mA				1	-40 °C	125 ¯C	10 mA	Adjustable	Positive	Surface Mount	37 V	TO-261-4, TO-261AA	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit		SOT-223-4
Texas Instruments LM317EMP/NOPB					1.5 A				1	0 °C	125 °C	10 mA	Adjustable	Positive	Surface Mount	37 V	TO-261-4, TO-261AA	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit	37 V	SOT-223-4
Texas Instruments LM317AEMP/NOPB					1.5 A				1	-40 °C	125 °C	10 mA	Adjustable	Positive	Surface Mount	37 V	TO-261-4, TO-261AA	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit		SOT-223-4
Texas Instruments LM317MDT/NOPB					500 mA				1	0 °C	125 ¯C	10 mA	Adjustable	Positive	Surface Mount	37 V	DPAK (2 Leads + Tab), SC-63, TO-252-3	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit	37 V	TO-252-3
Texas Instruments LM317MDCYR					500 mA				1	-40 °C	125 ¯C	10 mA	Adjustable	Positive	Surface Mount	37 V	TO-261-4, TO-261AA	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit		SOT-223-4
Texas Instruments LM317S/NOPB					1.5 A				1	0 °C	125 °C	10 mA	Adjustable	Positive	Surface Mount	37 V	D2PAK (3 Leads + Tab), TO-263-4, TO-263AA			1.25 V	Over Current, Over Temperature, Short Circuit	37 V	TO-263 (DDPAK-3)		64 dB
Texas Instruments LM317LCPWRG4					100 mA				1	0 °C	125 °C	2.5 mA	Adjustable	Positive	Surface Mount	32 V	8-TSSOP (0.173", 4.40mm Width)	65 dB	80 dB	1.2 V	Over Current, Over Temperature, Short Circuit	38 V	8-TSSOP
Texas Instruments LM317K STEEL					1.5 A				1	0 °C	125 °C	10 mA	Adjustable	Positive	Through Hole	37 V	TO-204AA, TO-3	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit	37 V	TO-3-2
Texas Instruments LM317LMX/NOPB					100 mA				1	-40 °C	125 °C	5 mA	Adjustable	Positive	Surface Mount	37 V	8-SOIC	65 dB	80 dB	1.2 V	Over Current, Over Temperature, Short Circuit		8-SOIC	3.9 mm
Texas Instruments LM317K STEEL/NOPB					1.5 A				1	0 °C	125 °C	10 mA	Adjustable	Positive	Through Hole	37 V	TO-204AA, TO-3	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit	37 V	TO-3-2
Texas Instruments LM317T/LF01					1.5 A				1	0 °C	125 °C	10 mA	Adjustable	Positive	Surface Mount	37 V	TO-220-3, Formed Leads			1.25 V	Over Current, Over Temperature, Short Circuit	37 V	LF01, TO-220-3		64 dB
Texas Instruments LM317LZ/LFT2					100 mA				1	-40 °C	125 °C	5 mA	Adjustable	Positive	Through Hole	37 V	TO-92-3	65 dB	80 dB	1.2 V	Over Current, Over Temperature, Short Circuit		TO-92-3			TO-226-3, TO-226AA
Texas Instruments LM317LIPK					100 mA				1	-40 °C	125 °C	2.5 mA	Adjustable	Positive	Surface Mount	32 V	TO-243AA	65 dB	80 dB	1.2 V	Over Current, Over Temperature, Short Circuit	38 V	SOT-89-3
Texas Instruments LM317MKVURG3					500 mA				1	-40 °C	125 ¯C	10 mA	Adjustable	Positive	Surface Mount	37 V	DPAK (2 Leads + Tab), SC-63, TO-252-3	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit		TO-252-3
Texas Instruments LM317LITPX/NOPB					100 mA				1	-40 °C	125 °C	5 mA	Adjustable	Positive	Surface Mount	37 V	6-UFBGA, DSBGA	65 dB	80 dB	1.2 V	Over Current, Over Temperature, Short Circuit		6-DSBGA
Texas Instruments LM317KCE3					1.5 A				1	0 °C	125 °C	10 mA	Adjustable	Positive	Through Hole	37 V	TO-220-3	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit		TO-220-3
Texas Instruments LM317LIBP					100 mA				1	-40 °C	125 °C	2.5 mA	Adjustable	Positive	Surface Mount	37 V	6-VFBGA	65 dB	80 dB	1.2 V	Over Current, Over Temperature, Short Circuit		6-DSBGA
Texas Instruments LM317LCLPR					100 mA				1	0 °C	125 °C	2.5 mA	Adjustable	Positive	Through Hole	32 V	TO-226-3, TO-92-3 (TO-226AA) Formed Leads	65 dB	80 dB	1.2 V	Over Current, Over Temperature, Short Circuit	38 V	TO-92-3
Texas Instruments LM317SX/NOPB					1.5 A				1	0 °C	125 °C	10 mA	Adjustable	Positive	Surface Mount	37 V	D2PAK (3 Leads + Tab), TO-263-4, TO-263AA			1.25 V	Over Current, Over Temperature, Short Circuit	37 V	TO-263 (DDPAK-3)		64 dB
Texas Instruments LM317LCPWE4					100 mA				1	0 °C	125 °C	2.5 mA	Adjustable	Positive	Surface Mount	32 V	8-TSSOP (0.173", 4.40mm Width)	65 dB	80 dB	1.2 V	Over Current, Over Temperature, Short Circuit	38 V	8-TSSOP
Texas Instruments LM317HVH					1.5 A				1	0 °C	125 °C	12 mA	Adjustable	Positive	Through Hole	57 V	TO-205AD, TO-39-3 Metal Can	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit	60 V
Texas Instruments LM317MKTPR					500 mA				1	0 °C	125 ¯C	10 mA	Adjustable	Positive	Surface Mount	37 V	DPAK (2 Leads + Tab), SC-63, TO-252-3	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit		TO-252-3
Texas Instruments LM317HVT/NOPB					1.5 A				1	0 °C	125 °C	12 mA	Adjustable	Positive	Through Hole	57 V	TO-220-3	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit	60 V	TO-220-3
Texas Instruments LM317LIBPX					100 mA				1	-40 °C	125 °C	2.5 mA	Adjustable	Positive	Surface Mount	37 V	6-VFBGA	65 dB	80 dB	1.2 V	Over Current, Over Temperature, Short Circuit		6-DSBGA
Texas Instruments LM317MQDCYRG4					500 mA				1	-40 °C	125 ¯C	10 mA	Adjustable	Positive	Surface Mount	37 V	TO-261-4, TO-261AA	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit		SOT-223-4
Texas Instruments LM317KCS					1.5 A				1	0 °C	125 °C	10 mA	Adjustable	Positive	Through Hole	37 V	TO-220-3	65 dB	80 dB	1.25 V	Over Current, Over Temperature, Short Circuit		TO-220-3

Description

General part information

LM317 Series

The LM317L-N is an adjustable positive voltage regulator capable of supplying 100 mA over a 1.2-V to 37-V output range. The LM317L-N is easy to use and requires only two external resistors to set the output voltage. Both line and load regulation are better than standard fixed regulators. The LM317L-N is available packaged in a standard, easy-to-useTO-92 transistor package.

The LM317L-N offers full overload protection. Included on the chip are current limit, thermal overload protection, and safe area protection. Normally, no capacitors are required unless the device is situated more than 6 inches from the input filter capacitors, in which case an input bypass is required.

The LM317L-N usesfloatingtopology and sees only the input-to-output differential voltage, therefore supplies of several hundred volts can be regulated, provided the maximum input-to-output differential is not exceeded. The device makes a simple adjustable switching regulator, a programmable output regulator, or by connecting a fixed resistor between the adjustment and output, the LM317L-N can be used as a precision current regulator.
