929850-01-06-RA
Active3M (TC)

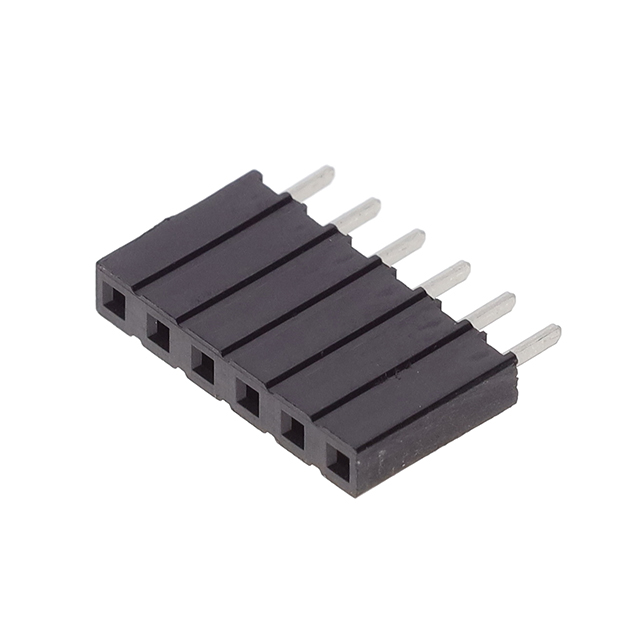

PCB RECEPTACLE, BOARD-TO-BOARD, 2.54 MM, 1 ROWS, 6 CONTACTS, THROUGH HOLE STRAIGHT, 929 SERIES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
929850-01-06-RA
Active3M (TC)
PCB RECEPTACLE, BOARD-TO-BOARD, 2.54 MM, 1 ROWS, 6 CONTACTS, THROUGH HOLE STRAIGHT, 929 SERIES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 929850-01-06-RA |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Length - Post [x] | 3.18 mm |
| Contact Length - Post [x] | 0.125 in |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Forked |
| Current Rating (Amps) | 2 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 8.25 mm |
| Insulation Height | 0.325 in |
| Insulation Material | Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Termination | Solder |
| Voltage Rating | 1500 V |
929850 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Current Rating (Amps) | Insulation Material | Connector Type | Insulation Height | Insulation Height | Voltage Rating | Mounting Type | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Material Flammability Rating | Contact Type | Insulation Color | Contact Finish - Post | Number of Positions Loaded | Termination | Contact Finish - Mating | Contact Length - Post [x] | Contact Length - Post [x] | Number of Rows | Contact Shape | Pitch - Mating | Pitch - Mating | Number of Positions | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | -40 °C | 105 ░C | Push-Pull | 2 A | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Receptacle | 8.25 mm | 0.325 in | 1500 V | Through Hole | Copper Alloy | 30 Áin | 0.76 Ám | UL94 V-0 | Forked | Black | Tin | All | Solder | Gold | 3.18 mm | 0.125 in | 1 | Square | 0.1 in | 2.54 mm | 22 positions | |
3M (TC) | -40 °C | 105 ░C | Push-Pull | 2 A | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Receptacle | 8.25 mm | 0.325 in | 1500 V | Through Hole | Copper Alloy | 10 çin | 0.25 çm | UL94 V-0 | Forked | Black | Tin-Lead | All | Solder | Gold | 3.18 mm | 0.125 in | 1 | Square | 0.1 in | 2.54 mm | 2 | |
3M (TC) | -40 °C | 105 ░C | Push-Pull | 2 A | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Receptacle | 8.25 mm | 0.325 in | 1500 V | Through Hole | Copper Alloy | 10 çin | 0.25 çm | UL94 V-0 | Forked | Black | Tin-Lead | All | Solder | Gold | 3.18 mm | 0.125 in | 1 | Square | 0.1 in | 2.54 mm | 7 | |
3M (TC) | -40 °C | 105 ░C | Push-Pull | 2 A | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Receptacle | 8.25 mm | 0.325 in | 1500 V | Through Hole | Copper Alloy | 30 Áin | 0.76 Ám | UL94 V-0 | Forked | Black | Tin-Lead | All | Solder | Gold | 3.18 mm | 0.125 in | 1 | Square | 0.1 in | 2.54 mm | ||
3M (TC) | -40 °C | 105 ░C | Push-Pull | 2 A | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Receptacle | 8.25 mm | 0.325 in | 1500 V | Through Hole | Copper Alloy | 10 çin | 0.25 çm | UL94 V-0 | Forked | Black | Tin-Lead | All | Solder | Gold | 3.18 mm | 0.125 in | 1 | Square | 0.1 in | 2.54 mm | 24 | |
3M (TC) | -40 °C | 105 ░C | Push-Pull | 2 A | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Receptacle | 8.25 mm | 0.325 in | 1500 V | Through Hole | Copper Alloy | 10 çin | 0.25 çm | UL94 V-0 | Forked | Black | Tin | All | Solder | Gold | 3.18 mm | 0.125 in | 1 | Square | 0.1 in | 2.54 mm | 19 | |
3M (TC) | -40 °C | 105 ░C | Push-Pull | 2 A | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Receptacle | 8.25 mm | 0.325 in | 1500 V | Through Hole | Copper Alloy | 10 çin | 0.25 çm | UL94 V-0 | Forked | Black | Tin | All | Solder | Gold | 3.18 mm | 0.125 in | 1 | Square | 0.1 in | 2.54 mm | 6 | |
3M (TC) | -40 °C | 105 ░C | Push-Pull | 2 A | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Receptacle | 8.25 mm | 0.325 in | 1500 V | Through Hole | Copper Alloy | 30 Áin | 0.76 Ám | UL94 V-0 | Forked | Black | Tin | All | Solder | Gold | 3.18 mm | 0.125 in | 1 | Square | 0.1 in | 2.54 mm | 4 | |
3M (TC) | -40 °C | 105 ░C | Push-Pull | 2 A | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Receptacle | 8.25 mm | 0.325 in | 1500 V | Through Hole | Copper Alloy | 10 çin | 0.25 çm | UL94 V-0 | Forked | Black | Tin | All | Solder | Gold | 3.18 mm | 0.125 in | 1 | Square | 0.1 in | 2.54 mm | 8 | |
3M (TC) | -40 °C | 105 ░C | Push-Pull | 2 A | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Receptacle | 8.25 mm | 0.325 in | 1500 V | Through Hole | Copper Alloy | 10 çin | 0.25 çm | UL94 V-0 | Forked | Black | Tin-Lead | All | Solder | Gold | 3.18 mm | 0.125 in | 1 | Square | 0.1 in | 2.54 mm | 16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
929850 Series
6 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
