929850-01-08-RA

Active

3M (TC)

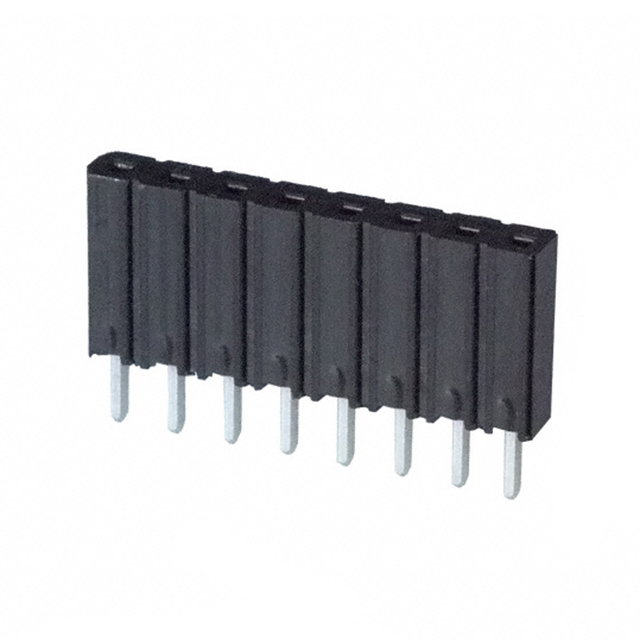

PCB RECEPTACLE, BOARD-TO-BOARD, 2.54 MM, 1 ROWS, 8 CONTACTS, THROUGH HOLE STRAIGHT, 929 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

929850-01-08-RA

Active

3M (TC)

PCB RECEPTACLE, BOARD-TO-BOARD, 2.54 MM, 1 ROWS, 8 CONTACTS, THROUGH HOLE STRAIGHT, 929 SERIES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	929850-01-08-RA

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	8.25 mm
Insulation Height	0.325 in
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder
Voltage Rating	1500 V

929850 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Current Rating (Amps)	Insulation Material	Connector Type	Insulation Height	Insulation Height	Voltage Rating	Mounting Type	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Contact Type	Insulation Color	Contact Finish - Post	Number of Positions Loaded	Termination	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Number of Rows	Contact Shape	Pitch - Mating	Pitch - Mating	Number of Positions	Number of Positions
3M (TC) 929850-01-22-RB	-40 °C	105 ░C	Push-Pull	2 A	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	8.25 mm	0.325 in	1500 V	Through Hole	Copper Alloy	30 Áin	0.76 Ám	UL94 V-0	Forked	Black	Tin	All	Solder	Gold	3.18 mm	0.125 in	1	Square	0.1 in	2.54 mm	22 positions
3M (TC) 929850-01-02-10	-40 °C	105 ░C	Push-Pull	2 A	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	8.25 mm	0.325 in	1500 V	Through Hole	Copper Alloy	10 çin	0.25 çm	UL94 V-0	Forked	Black	Tin-Lead	All	Solder	Gold	3.18 mm	0.125 in	1	Square	0.1 in	2.54 mm	2
3M (TC) 929850-01-07-10	-40 °C	105 ░C	Push-Pull	2 A	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	8.25 mm	0.325 in	1500 V	Through Hole	Copper Alloy	10 çin	0.25 çm	UL94 V-0	Forked	Black	Tin-Lead	All	Solder	Gold	3.18 mm	0.125 in	1	Square	0.1 in	2.54 mm	7
3M (TC) 929850-01-03-30	-40 °C	105 ░C	Push-Pull	2 A	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	8.25 mm	0.325 in	1500 V	Through Hole	Copper Alloy	30 Áin	0.76 Ám	UL94 V-0	Forked	Black	Tin-Lead	All	Solder	Gold	3.18 mm	0.125 in	1	Square	0.1 in	2.54 mm
3M (TC) 929850-01-24-10	-40 °C	105 ░C	Push-Pull	2 A	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	8.25 mm	0.325 in	1500 V	Through Hole	Copper Alloy	10 çin	0.25 çm	UL94 V-0	Forked	Black	Tin-Lead	All	Solder	Gold	3.18 mm	0.125 in	1	Square	0.1 in	2.54 mm	24
3M (TC) 929850-01-19-RA	-40 °C	105 ░C	Push-Pull	2 A	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	8.25 mm	0.325 in	1500 V	Through Hole	Copper Alloy	10 çin	0.25 çm	UL94 V-0	Forked	Black	Tin	All	Solder	Gold	3.18 mm	0.125 in	1	Square	0.1 in	2.54 mm	19
3M (TC) 929850-01-06-RA	-40 °C	105 ░C	Push-Pull	2 A	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	8.25 mm	0.325 in	1500 V	Through Hole	Copper Alloy	10 çin	0.25 çm	UL94 V-0	Forked	Black	Tin	All	Solder	Gold	3.18 mm	0.125 in	1	Square	0.1 in	2.54 mm	6
3M (TC) 929850-01-04-RB	-40 °C	105 ░C	Push-Pull	2 A	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	8.25 mm	0.325 in	1500 V	Through Hole	Copper Alloy	30 Áin	0.76 Ám	UL94 V-0	Forked	Black	Tin	All	Solder	Gold	3.18 mm	0.125 in	1	Square	0.1 in	2.54 mm	4
3M (TC) 929850-01-08-RA	-40 °C	105 ░C	Push-Pull	2 A	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	8.25 mm	0.325 in	1500 V	Through Hole	Copper Alloy	10 çin	0.25 çm	UL94 V-0	Forked	Black	Tin	All	Solder	Gold	3.18 mm	0.125 in	1	Square	0.1 in	2.54 mm	8
3M (TC) 929850-01-16-10	-40 °C	105 ░C	Push-Pull	2 A	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Receptacle	8.25 mm	0.325 in	1500 V	Through Hole	Copper Alloy	10 çin	0.25 çm	UL94 V-0	Forked	Black	Tin-Lead	All	Solder	Gold	3.18 mm	0.125 in	1	Square	0.1 in	2.54 mm		16
