LB25CGW01-H

Active

NKK Switches

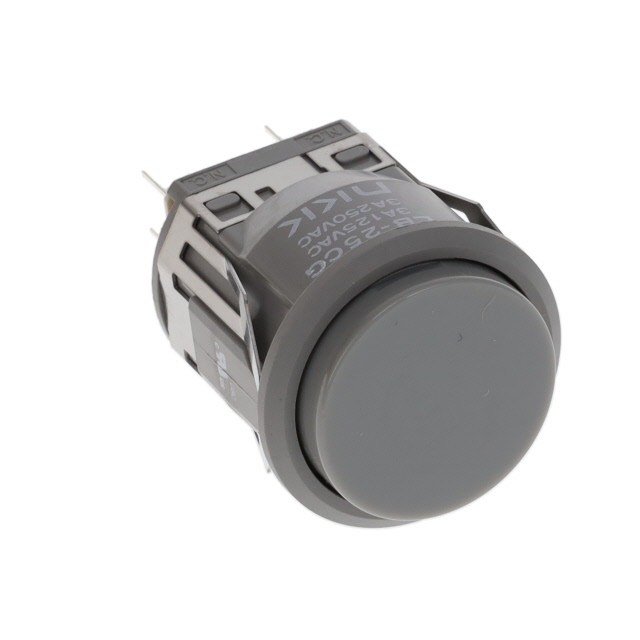

PUSHBUTTON SWITCH, LB SERIES, 22 MM, DPDT, ON-(ON), ROUND, GRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

LB25CGW01-H

Active

NKK Switches

PUSHBUTTON SWITCH, LB SERIES, 22 MM, DPDT, ON-(ON), ROUND, GRAY

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LB25CGW01-H

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	DPDT
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

LB25CGW Series

Part	Illumination Voltage (Nominal)	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Illumination Type, Color	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Actuator Marking	Voltage Rating - AC	Voltage Rating - DC	Mechanical Life	Type	Mounting Type	Actuator Type	Color - Actuator/Cap	Electrical Life	Switch Function	Termination Style	Termination Style	Termination Style
NKK Switches LB25CGW01-5F-JF	2.1 VDC	50 °C	-25 °C	DPDT	Green LED	3 A	22 mm	No Marking	125 V	30 V	1000000 Cycles	Illuminated Standard	Panel Mount Snap-In	Button Round	Clear	100000 Cycles	On-Mom	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches LB25CGW01/UC		70 °C	-25 °C	DPDT		3 A	22 mm	No Marking	125 V	30 V	1000000 Cycles	Standard	Panel Mount Snap-In	Plunger for Cap		100000 Cycles	On-Mom	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches LB25CGW01-01-JC		50 °C	-25 °C	DPDT	Neon Red	3 A	22 mm	No Marking	125 V	30 V	1000000 Cycles	Illuminated Standard	Panel Mount Snap-In	Button Round	Clear (Red Filter/Diffuser)	100000 Cycles	On-Mom	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches LB25CGW01-5F12-JF	12 VDC	50 °C	-25 °C	DPDT	Green LED	3 A	22 mm	No Marking	125 V	30 V	1000000 Cycles	Illuminated Standard	Panel Mount Snap-In	Button Round	Clear	100000 Cycles	On-Mom	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches LB25CGW01-B		70 °C	-25 °C	DPDT		3 A	22 mm	No Marking	125 V	30 V	1000000 Cycles	Standard	Panel Mount Snap-In	Button Round	White	100000 Cycles	On-Mom	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches LB25CGW01-H		70 °C	-25 °C	DPDT		3 A	22 mm	No Marking	125 V	30 V	1000000 Cycles	Standard	Panel Mount Snap-In	Button Round		100000 Cycles	On-Mom	0.11 in	Quick Connect Solder	2.8 mm
NKK Switches LB25CGW01-CF-A	2 VDC 2.2 VDC	50 °C	-25 °C	DPDT	Green/Red LED	3 A	22 mm	No Marking	125 V	30 V	1000000 Cycles	Illuminated Standard	Panel Mount Snap-In	Button Round	Black	100000 Cycles	On-Mom	0.11 in	Quick Connect Solder	2.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.66
		10	$ 13.14
		25	$ 12.57
		50	$ 11.92
		100	$ 11.48
		250	$ 10.76
		500	$ 9.97
		1000	$ 8.94
Newark	Each	1	$ 18.42
		10	$ 15.71

Description

General part information

LB25CGW Series

Pushbutton Switch DPDT Standard Panel Mount, Snap-In
