LB25CGW01/UC
NKK Switches

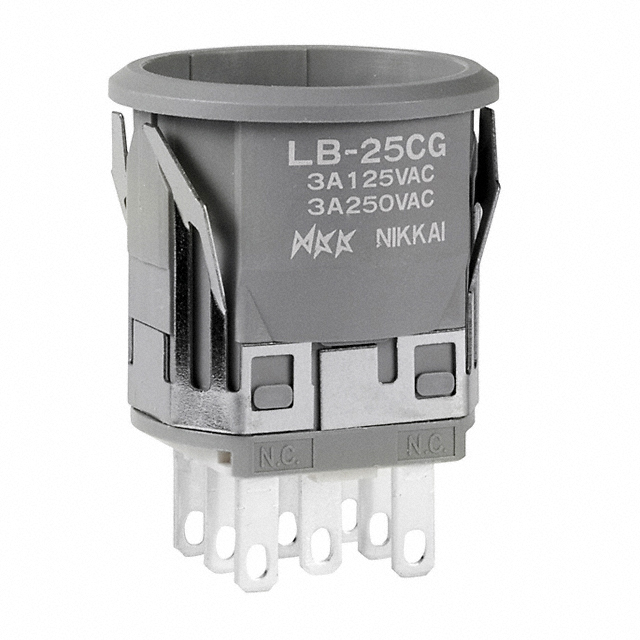

SWITCH PUSHBUTTON DPDT 3A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LB25CGW01/UC
NKK Switches
SWITCH PUSHBUTTON DPDT 3A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LB25CGW01/UC |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Plunger for Cap |
| Circuit | DPDT |
| Current Rating (Amps) | 3 A |
| Electrical Life | 100000 Cycles |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 22 mm |
| Switch Function | On-Mom |
| Termination Style | 0.11 in |
| Termination Style | Quick Connect, Solder |
| Termination Style | 2.8 mm |
| Type | Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
LB25CGW Series
| Part | Illumination Voltage (Nominal) | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Illumination Type, Color | Current Rating (Amps) | Panel Cutout Dimensions [diameter] | Actuator Marking | Voltage Rating - AC | Voltage Rating - DC | Mechanical Life | Type | Mounting Type | Actuator Type | Color - Actuator/Cap | Electrical Life | Switch Function | Termination Style | Termination Style | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | 2.1 VDC | 50 °C | -25 °C | DPDT | Green LED | 3 A | 22 mm | No Marking | 125 V | 30 V | 1000000 Cycles | Illuminated Standard | Panel Mount Snap-In | Button Round | Clear | 100000 Cycles | On-Mom | 0.11 in | Quick Connect Solder | 2.8 mm |
NKK Switches | 70 °C | -25 °C | DPDT | 3 A | 22 mm | No Marking | 125 V | 30 V | 1000000 Cycles | Standard | Panel Mount Snap-In | Plunger for Cap | 100000 Cycles | On-Mom | 0.11 in | Quick Connect Solder | 2.8 mm | |||
NKK Switches | 50 °C | -25 °C | DPDT | Neon Red | 3 A | 22 mm | No Marking | 125 V | 30 V | 1000000 Cycles | Illuminated Standard | Panel Mount Snap-In | Button Round | Clear (Red Filter/Diffuser) | 100000 Cycles | On-Mom | 0.11 in | Quick Connect Solder | 2.8 mm | |
NKK Switches | 12 VDC | 50 °C | -25 °C | DPDT | Green LED | 3 A | 22 mm | No Marking | 125 V | 30 V | 1000000 Cycles | Illuminated Standard | Panel Mount Snap-In | Button Round | Clear | 100000 Cycles | On-Mom | 0.11 in | Quick Connect Solder | 2.8 mm |
NKK Switches | 70 °C | -25 °C | DPDT | 3 A | 22 mm | No Marking | 125 V | 30 V | 1000000 Cycles | Standard | Panel Mount Snap-In | Button Round | White | 100000 Cycles | On-Mom | 0.11 in | Quick Connect Solder | 2.8 mm | ||
NKK Switches | 70 °C | -25 °C | DPDT | 3 A | 22 mm | No Marking | 125 V | 30 V | 1000000 Cycles | Standard | Panel Mount Snap-In | Button Round | 100000 Cycles | On-Mom | 0.11 in | Quick Connect Solder | 2.8 mm | |||
NKK Switches | 2 VDC 2.2 VDC | 50 °C | -25 °C | DPDT | Green/Red LED | 3 A | 22 mm | No Marking | 125 V | 30 V | 1000000 Cycles | Illuminated Standard | Panel Mount Snap-In | Button Round | Black | 100000 Cycles | On-Mom | 0.11 in | Quick Connect Solder | 2.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.49 | |
Description
General part information
LB25CGW Series
Pushbutton Switch DPDT Standard Panel Mount, Snap-In
