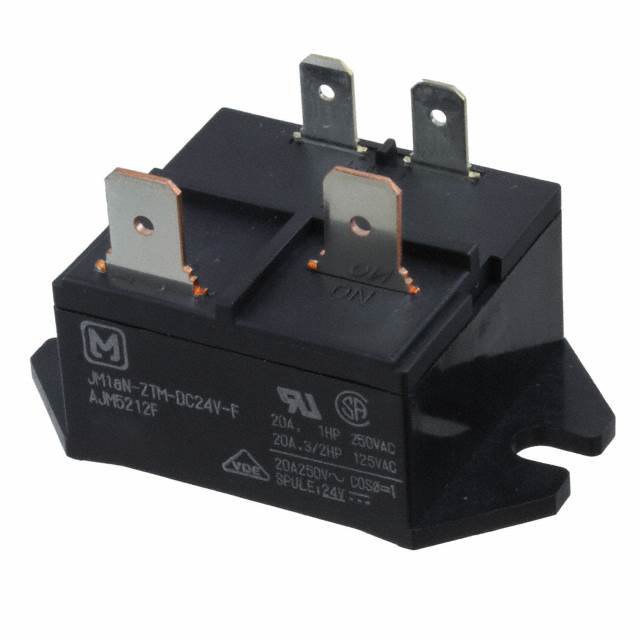

JM1AN-ZTM-DC24V-F
ObsoletePanasonic Electric Works
RELAY GEN PURPOSE SPST 20A 24V
Deep-Dive with AI
Search across all available documentation for this part.
JM1AN-ZTM-DC24V-F
ObsoletePanasonic Electric Works
RELAY GEN PURPOSE SPST 20A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | JM1AN-ZTM-DC24V-F |
|---|---|
| Approval Agency | TUV, VDE, CSA, UR |
| Coil Current | 37.5 mA |
| Coil Resistance | 640 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 20 A |
| Load - Max Switching | 5000 VA |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 20 ms |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Switching Voltage | 250 VAC |
| Termination Style | Quick Connect - 0.187"/0.250" |
JM1AN Series
| Part | Approval Agency | Release Time | Operating Temperature [Min] | Operating Temperature [Max] | Switching Voltage | Contact Form | Load - Max Switching | Termination Style | Termination Style | Coil Current | Coil Resistance | Relay Type | Mounting Type | Contact Material | Must Release Voltage | Must Operate Voltage | Operate Time | Coil Voltage | Contact Rating (Current) | Coil Type | Seal Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Panasonic Electric Works | CSA TUV UR VDE | 10 ms | -40 °C | 60 °C | 250 VAC | SPST-NO (1 Form A) | 5000 VA | PC Pin Quick Connect | 0.25 in | 180 mA | 27.8 Ohms | General Purpose | Through Hole | Silver Tin Oxide (AgSnO) | 0.5 VDC | 3.5 VDC | 20 ms | 5 VDC | 20 A | Non Latching | Sealed - Flux Protection |
Panasonic Electric Works | CSA TUV UR VDE | 10 ms | -40 °C | 60 °C | 250 VAC | SPST-NO (1 Form A) | 5000 VA | Quick Connect - 0.250" (6.3mm) | 100 mA | 90 Ohms | General Purpose | Chassis Mount | Silver Alloy | 0.9 VDC | 6.3 VDC | 20 ms | 9 VDC | 20 A | Non Latching | Sealed - Flux Protection | |
Panasonic Electric Works | CSA TUV UR VDE | 10 ms | -40 °C | 60 °C | 250 VAC | SPST-NO (1 Form A) | 5000 VA | PC Pin Quick Connect | 0.25 in | 18.8 mA | 2560 Ohms | General Purpose | Through Hole | Silver Tin Oxide (AgSnO) | 4.8 VDC | 33.6 VDC | 20 ms | 48 VDC | 20 A | Non Latching | Sealed - Flux Protection |
Panasonic Electric Works | CSA TUV UR VDE | 10 ms | -40 °C | 60 °C | 250 VAC | SPST-NO (1 Form A) | 5000 VA | Quick Connect - 0.250" (6.3mm) | 75 mA | 160 Ohms | General Purpose | Chassis Mount | Silver Alloy | 1.2 VDC | 8.4 VDC | 20 ms | 12 VDC | 20 A | Non Latching | Sealed - Flux Protection | |
Panasonic Electric Works | CSA TUV UR VDE | 10 ms | -40 °C | 60 °C | 250 VAC | SPST-NO (1 Form A) | 5000 VA | Quick Connect - 0.250" (6.3mm) | 100 mA | 90 Ohms | General Purpose | Chassis Mount | Silver Alloy | 0.9 VDC | 6.3 VDC | 20 ms | 9 VDC | 20 A | Non Latching | Sealed - Flux Protection | |
Panasonic Electric Works | CSA TUV UR VDE | 10 ms | -40 °C | 60 °C | 250 VAC | SPST-NO (1 Form A) | 5000 VA | PC Pin Quick Connect | 0.25 in | 75 mA | 160 Ohms | General Purpose | Through Hole | Silver Tin Oxide (AgSnO) | 1.2 VDC | 8.4 VDC | 20 ms | 12 VDC | 20 A | Non Latching | Sealed - Flux Protection |
Panasonic Electric Works | CSA TUV UR VDE | 10 ms | -40 °C | 60 °C | 250 VAC | SPST-NO (1 Form A) | 5000 VA | PC Pin Quick Connect | 0.25 in | 150 mA | 40 Ohms | General Purpose | Through Hole | Silver Alloy | 0.6 VDC | 4.2 VDC | 20 ms | 20 A | Non Latching | Sealed - Flux Protection | |
Panasonic Electric Works | CSA TUV UR VDE | 10 ms | -40 °C | 60 °C | 250 VAC | SPST-NO (1 Form A) | 5000 VA | Quick Connect - 0.187"/0.250" | 37.5 mA | 640 Ohms | General Purpose | Chassis Mount | Silver Tin Oxide (AgSnO) | 2.4 VDC | 16.8 VDC | 20 ms | 24 VDC | 20 A | Non Latching | ||
Panasonic Electric Works | CSA TUV UR VDE | 10 ms | -40 °C | 60 °C | 250 VAC | SPST-NO (1 Form A) | 5000 VA | Quick Connect - 0.187"/0.250" | 75 mA | 160 Ohms | General Purpose | Chassis Mount | Silver Alloy | 1.2 VDC | 8.4 VDC | 20 ms | 12 VDC | 20 A | Non Latching | ||
Panasonic Electric Works | CSA TUV UR VDE | 10 ms | -40 °C | 60 °C | 250 VAC | SPST-NO (1 Form A) | 5000 VA | PC Pin Quick Connect | 0.25 in | 100 mA | 90 Ohms | General Purpose | Through Hole | Silver Alloy | 0.9 VDC | 6.3 VDC | 20 ms | 9 VDC | 20 A | Non Latching | Sealed - Flux Protection |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
JM1AN Series
General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Chassis Mount
