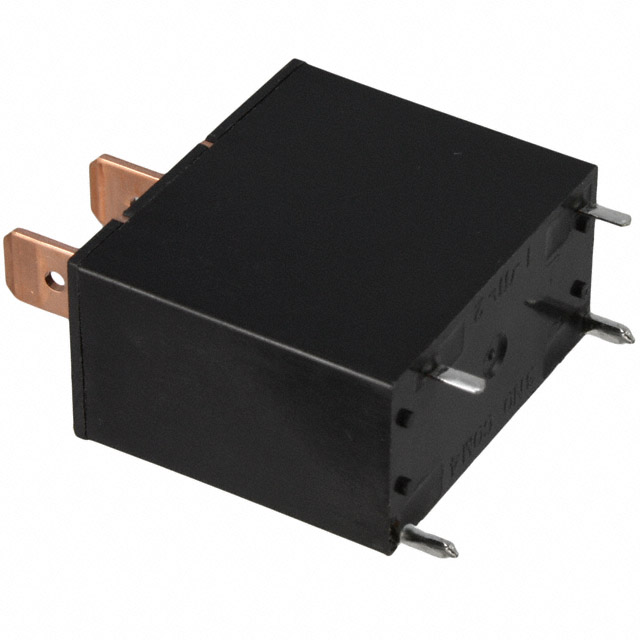

JM1AN-TMP-DC5V-F

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE SPST 20A 5V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsStandards Chart General Appl Guidelines +2

JM1AN-TMP-DC5V-F

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE SPST 20A 5V

Deep-Dive with AI

DocumentsStandards Chart General Appl Guidelines +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JM1AN-TMP-DC5V-F

Approval Agency	TUV, VDE, CSA, UR
Coil Current	180 mA
Coil Resistance	27.8 Ohms
Coil Type	Non Latching
Coil Voltage	5 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	20 A
Load - Max Switching	5000 VA
Mounting Type	Through Hole
Must Operate Voltage	3.5 VDC
Must Release Voltage	0.5 VDC
Operate Time	20 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	10 ms
Seal Rating	Sealed - Flux Protection
Switching Voltage	250 VAC
Termination Style	PC Pin, Quick Connect
Termination Style	0.25 in

JM1AN Series

Part	Approval Agency	Release Time	Operating Temperature [Min]	Operating Temperature [Max]	Switching Voltage	Contact Form	Load - Max Switching	Termination Style	Termination Style	Coil Current	Coil Resistance	Relay Type	Mounting Type	Contact Material	Must Release Voltage	Must Operate Voltage	Operate Time	Coil Voltage	Contact Rating (Current)	Coil Type	Seal Rating
Panasonic Electric Works JM1AN-TMP-DC5V-F	CSA TUV UR VDE	10 ms	-40 °C	60 °C	250 VAC	SPST-NO (1 Form A)	5000 VA	PC Pin Quick Connect	0.25 in	180 mA	27.8 Ohms	General Purpose	Through Hole	Silver Tin Oxide (AgSnO)	0.5 VDC	3.5 VDC	20 ms	5 VDC	20 A	Non Latching	Sealed - Flux Protection
Panasonic Electric Works JM1AN-ZTMP-DC9V-F	CSA TUV UR VDE	10 ms	-40 °C	60 °C	250 VAC	SPST-NO (1 Form A)	5000 VA	Quick Connect - 0.250" (6.3mm)		100 mA	90 Ohms	General Purpose	Chassis Mount	Silver Alloy	0.9 VDC	6.3 VDC	20 ms	9 VDC	20 A	Non Latching	Sealed - Flux Protection
Panasonic Electric Works JM1AN-TMP-DC48V-F	CSA TUV UR VDE	10 ms	-40 °C	60 °C	250 VAC	SPST-NO (1 Form A)	5000 VA	PC Pin Quick Connect	0.25 in	18.8 mA	2560 Ohms	General Purpose	Through Hole	Silver Tin Oxide (AgSnO)	4.8 VDC	33.6 VDC	20 ms	48 VDC	20 A	Non Latching	Sealed - Flux Protection
Panasonic Electric Works JM1AN-ZTMP-DC12V-F	CSA TUV UR VDE	10 ms	-40 °C	60 °C	250 VAC	SPST-NO (1 Form A)	5000 VA	Quick Connect - 0.250" (6.3mm)		75 mA	160 Ohms	General Purpose	Chassis Mount	Silver Alloy	1.2 VDC	8.4 VDC	20 ms	12 VDC	20 A	Non Latching	Sealed - Flux Protection
Panasonic Electric Works JM1AN-ZTM-DC9V-F	CSA TUV UR VDE	10 ms	-40 °C	60 °C	250 VAC	SPST-NO (1 Form A)	5000 VA	Quick Connect - 0.250" (6.3mm)		100 mA	90 Ohms	General Purpose	Chassis Mount	Silver Alloy	0.9 VDC	6.3 VDC	20 ms	9 VDC	20 A	Non Latching	Sealed - Flux Protection
Panasonic Electric Works JM1AN-TMP-DC12V-F	CSA TUV UR VDE	10 ms	-40 °C	60 °C	250 VAC	SPST-NO (1 Form A)	5000 VA	PC Pin Quick Connect	0.25 in	75 mA	160 Ohms	General Purpose	Through Hole	Silver Tin Oxide (AgSnO)	1.2 VDC	8.4 VDC	20 ms	12 VDC	20 A	Non Latching	Sealed - Flux Protection
Panasonic Electric Works JM1AN-TMP-DC6V	CSA TUV UR VDE	10 ms	-40 °C	60 °C	250 VAC	SPST-NO (1 Form A)	5000 VA	PC Pin Quick Connect	0.25 in	150 mA	40 Ohms	General Purpose	Through Hole	Silver Alloy	0.6 VDC	4.2 VDC	20 ms		20 A	Non Latching	Sealed - Flux Protection
Panasonic Electric Works JM1AN-ZTM-DC24V-F	CSA TUV UR VDE	10 ms	-40 °C	60 °C	250 VAC	SPST-NO (1 Form A)	5000 VA	Quick Connect - 0.187"/0.250"		37.5 mA	640 Ohms	General Purpose	Chassis Mount	Silver Tin Oxide (AgSnO)	2.4 VDC	16.8 VDC	20 ms	24 VDC	20 A	Non Latching
Panasonic Electric Works JM1AN-ZTM-DC12V-F	CSA TUV UR VDE	10 ms	-40 °C	60 °C	250 VAC	SPST-NO (1 Form A)	5000 VA	Quick Connect - 0.187"/0.250"		75 mA	160 Ohms	General Purpose	Chassis Mount	Silver Alloy	1.2 VDC	8.4 VDC	20 ms	12 VDC	20 A	Non Latching
Panasonic Electric Works JM1AN-TMP-DC9V-F	CSA TUV UR VDE	10 ms	-40 °C	60 °C	250 VAC	SPST-NO (1 Form A)	5000 VA	PC Pin Quick Connect	0.25 in	100 mA	90 Ohms	General Purpose	Through Hole	Silver Alloy	0.9 VDC	6.3 VDC	20 ms	9 VDC	20 A	Non Latching	Sealed - Flux Protection
