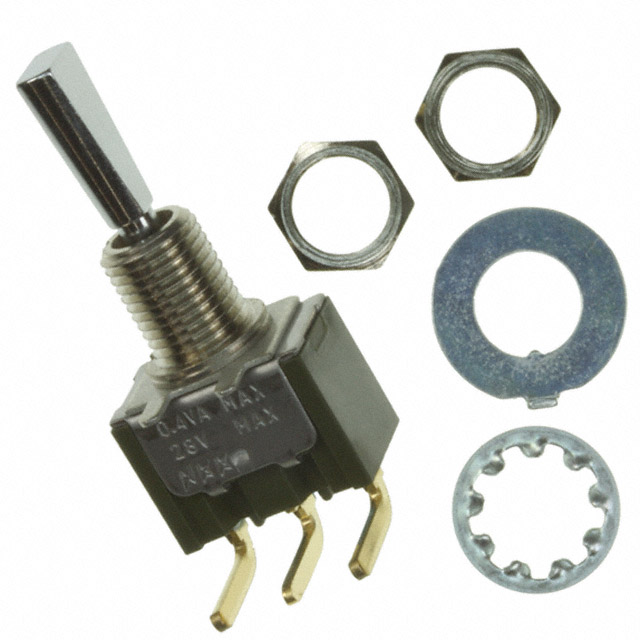

M2018ES1G30

Obsolete

NKK Switches

SWITCH TOGGLE SPDT 0.4VA 28V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH TOGGLE SPDT 0.4VA 28V

Technical Specifications

Parameters and characteristics for this part

Specification	M2018ES1G30

Actuator Length [x]	11.4 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Flatted
Bushing Thread	1/4-40
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	Mom-Off-Mom
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Actuator Material	Panel Cutout Dimensions [diameter]	Electrical Life	Circuit	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Switch Function	Actuator Length [x]	Mounting Type	Current Rating (Amps)	Voltage Rating - DC	Termination Style	Features	Illumination	Bushing Thread
NKK Switches M2018ES1A40	Brass Chrome Plated	6.5 mm	25000 Steps	SPDT	125 V	-30 ░C	85 °C	Flatted	Mom-Off-Mom	11.4 mm	Panel Mount Right Angle Vertical	3 A 6 A	30 V	PC Pin	Epoxy Sealed Terminals	Non-Illuminated	1/4-40
NKK Switches M2018ES2G13	Brass Chrome Plated	6.5 mm	50000 Cycles	SPDT	28 V	-30 ░C	85 °C	Flatted	Mom-Off-Mom	11.4 mm	Through Hole	0.4 VA	28 V	PC Pin	Epoxy Sealed Terminals	Non-Illuminated	Unthreaded
NKK Switches M2018ES1G30	Brass Chrome Plated	6.5 mm	50000 Cycles	SPDT	28 V	-30 ░C	85 °C	Flatted	Mom-Off-Mom	11.4 mm	Through Hole Right Angle	0.4 VA	28 V	PC Pin	Epoxy Sealed Terminals	Non-Illuminated	1/4-40
NKK Switches M2018ES4W01	Brass Chrome Plated	6.5 mm	25000 Steps	SPDT	125 V	-30 ░C	85 °C	Flatted	Mom-Off-Mom	11.4 mm		3 A 6 A	30 V	Solder Lug	Epoxy Sealed Terminals	Non-Illuminated	M6 x 0.75
NKK Switches M2018ES1G03	Brass Chrome Plated	6.5 mm	50000 Cycles	SPDT	28 V	-30 ░C	85 °C	Flatted	Mom-Off-Mom	11.4 mm		0.4 VA	28 V	PC Pin	Epoxy Sealed Terminals	Non-Illuminated	1/4-40
NKK Switches M2018ES1W01	Brass Chrome Plated	6.5 mm	25000 Steps	SPDT	125 V	-30 ░C	85 °C	Flatted	Mom-Off-Mom	11.4 mm		3 A 6 A	30 V	Solder Lug	Epoxy Sealed Terminals	Non-Illuminated	1/4-40

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Through Hole, Right Angle
