M2018ES2G13

Obsolete

NKK Switches

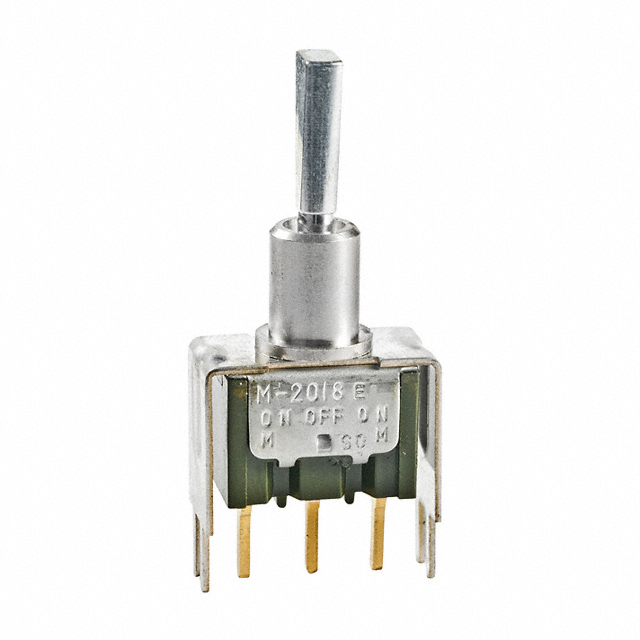

BRACKET PC MOUNT MINIATURE TOGGLE SWITCH; POLES: SPDT; CIRCUITS: MOM-OFF-MOM; CURRENT RATING: 0.4VA (AC/DC); RATING (AC): 28V; RATING (DC): 28V; ACTUATOR TYPE: FLATTED; ACTUATOR LENGTH: 11.40MM; ILLUMINATION: NON-ILLUMINATED; MOUNTING TYPE: THROUGH HOLE; TERMINATION STYLE: PC PIN; BUSHING THREAD: UNTHREADED; FEATURES: EPOXY SEALED TERMINALS; RATING: 0.4

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM Series Mini Toggles Datasheet

M2018ES2G13

Obsolete

NKK Switches

Deep-Dive with AI

DocumentsM Series Mini Toggles Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M2018ES2G13

Actuator Length [x]	11.4 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Flatted
Bushing Thread	Unthreaded
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	Mom-Off-Mom
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

M2018ES Series

Part	Actuator Material	Panel Cutout Dimensions [diameter]	Electrical Life	Circuit	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Switch Function	Actuator Length [x]	Mounting Type	Current Rating (Amps)	Voltage Rating - DC	Termination Style	Features	Illumination	Bushing Thread
NKK Switches M2018ES1A40	Brass Chrome Plated	6.5 mm	25000 Steps	SPDT	125 V	-30 ░C	85 °C	Flatted	Mom-Off-Mom	11.4 mm	Panel Mount Right Angle Vertical	3 A 6 A	30 V	PC Pin	Epoxy Sealed Terminals	Non-Illuminated	1/4-40
NKK Switches M2018ES2G13	Brass Chrome Plated	6.5 mm	50000 Cycles	SPDT	28 V	-30 ░C	85 °C	Flatted	Mom-Off-Mom	11.4 mm	Through Hole	0.4 VA	28 V	PC Pin	Epoxy Sealed Terminals	Non-Illuminated	Unthreaded
NKK Switches M2018ES1G30	Brass Chrome Plated	6.5 mm	50000 Cycles	SPDT	28 V	-30 ░C	85 °C	Flatted	Mom-Off-Mom	11.4 mm	Through Hole Right Angle	0.4 VA	28 V	PC Pin	Epoxy Sealed Terminals	Non-Illuminated	1/4-40
NKK Switches M2018ES4W01	Brass Chrome Plated	6.5 mm	25000 Steps	SPDT	125 V	-30 ░C	85 °C	Flatted	Mom-Off-Mom	11.4 mm		3 A 6 A	30 V	Solder Lug	Epoxy Sealed Terminals	Non-Illuminated	M6 x 0.75
NKK Switches M2018ES1G03	Brass Chrome Plated	6.5 mm	50000 Cycles	SPDT	28 V	-30 ░C	85 °C	Flatted	Mom-Off-Mom	11.4 mm		0.4 VA	28 V	PC Pin	Epoxy Sealed Terminals	Non-Illuminated	1/4-40
NKK Switches M2018ES1W01	Brass Chrome Plated	6.5 mm	25000 Steps	SPDT	125 V	-30 ░C	85 °C	Flatted	Mom-Off-Mom	11.4 mm		3 A 6 A	30 V	Solder Lug	Epoxy Sealed Terminals	Non-Illuminated	1/4-40

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 8.09

Description

General part information

M2018ES Series

Toggle Switch SPDT Through Hole

Documents

Technical documentation and resources

M Series Mini Toggles

Datasheet
