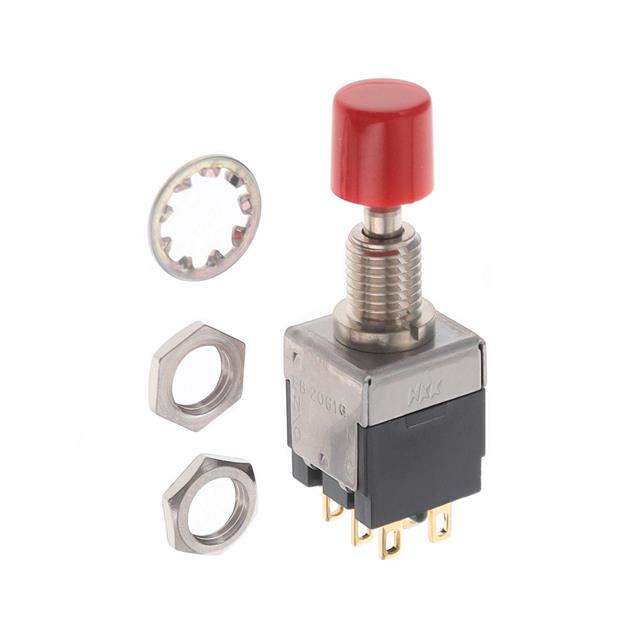

EB2061G-BC

Active

NKK Switches

LIGHT TOUCH MINIATURE PUSHBUTTON

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EB2061G-BC

Active

NKK Switches

LIGHT TOUCH MINIATURE PUSHBUTTON

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EB2061G-BC

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	DPDT
Color - Actuator/Cap	Red
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Rear
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [diameter]	0.25 in
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

EB2061 Series

Part	Circuit	Type	Voltage Rating - AC	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Current Rating (Amps)	Color - Actuator/Cap	Switch Function	Termination Style	Actuator Marking	Mechanical Life	Electrical Life	Panel Cutout Dimensions [diameter]	Actuator Type	Features	Mounting Type	Voltage Rating - DC	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Illumination Type, Color	Illumination Voltage (Nominal)
NKK Switches EB2061-CG	DPDT	Standard	125 V	-10 °C	158 °F	3 A	Blue	On-Mom	Solder Lug	No Marking	100000 Cycles	25000 Steps	0.25 in	Button Round	Epoxy Sealed Terminals	Panel Mount Rear
NKK Switches EB2061G	DPDT	Standard	28 V	-10 °C	158 °F	0.4 VA		On-Mom	Solder Lug	No Marking	100000 Cycles	50000 Cycles	0.25 in	Plunger for Cap	Epoxy Sealed Terminals	Panel Mount Rear	28 V
NKK Switches EB2061-A-J21A	DPDT	Standard	125 V	-10 °C	158 °F	3 A	Black	On-Mom	Solder Lug	No Marking	100000 Cycles	25000 Steps		Button Square	Epoxy Sealed Terminals	Panel Mount Snap-In		15 mm	12.5 mm
NKK Switches EB2061G-A-J20	DPDT	Standard	28 V	-10 °C	158 °F	0.4 VA	Black	On-Mom	Solder Lug	No Marking	100000 Cycles	50000 Cycles		Button Square	Epoxy Sealed Terminals	Panel Mount Snap-In	28 V	15 mm	12.5 mm
NKK Switches EB2061G-A-J21A	DPDT	Standard	28 V	-10 °C	158 °F	0.4 VA	Black	On-Mom	Solder Lug	No Marking	100000 Cycles	50000 Cycles		Button Square	Epoxy Sealed Terminals	Panel Mount Snap-In	28 V	15 mm	12.5 mm
NKK Switches EB2061-B-J22AC	DPDT	Illuminated Standard	125 V	-10 °C	158 °F	3 A	White	On-Mom	Solder Lug	No Marking	100000 Cycles	25000 Steps		Button Square	Epoxy Sealed Terminals	Panel Mount Snap-In		15 mm	12.5 mm	LED Red	2.8 VDC
NKK Switches EB2061G-BC	DPDT	Standard	28 V	-10 °C	158 °F	0.4 VA	Red	On-Mom	Solder Lug	No Marking	100000 Cycles	50000 Cycles	0.25 in	Button Round	Epoxy Sealed Terminals	Panel Mount Rear	28 V
NKK Switches EB2061-B-J23ACF	DPDT	Illuminated Standard	125 V	-10 °C	158 °F	3 A	White	On-Mom	Solder Lug	No Marking	100000 Cycles	25000 Steps		Button Square	Epoxy Sealed Terminals	Panel Mount Snap-In		18.4 mm	15 mm	Green/Red LED	2 VDC 2.25 VDC
NKK Switches EB2061-E-J43AEF	DPDT	Illuminated Standard	125 V	-10 °C	158 °F	3 A	Yellow	On-Mom	Solder Lug	No Marking	100000 Cycles	25000 Steps		Button Square	Epoxy Sealed Terminals	Panel Mount Snap-In		18.4 mm	15 mm	Green LED Yellow	2.1 VDC 2.25 VDC
NKK Switches EB2061-CB	DPDT	Standard	125 V	-10 °C	158 °F	3 A	White	On-Mom	Solder Lug	No Marking	100000 Cycles	25000 Steps	0.25 in	Button Round	Epoxy Sealed Terminals	Panel Mount Rear

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.02
		10	$ 7.21
		25	$ 6.88
		50	$ 6.58
		100	$ 6.32
		250	$ 5.99
		500	$ 5.54
		1000	$ 5.29
Newark	Each	1	$ 15.30
		5	$ 14.27
		10	$ 13.13
		25	$ 11.98
		50	$ 10.83
		100	$ 9.57
		250	$ 8.60

Description

General part information

EB2061 Series

Pushbutton Switch DPDT Standard Panel Mount, Rear
