EB2061G

Active

NKK Switches

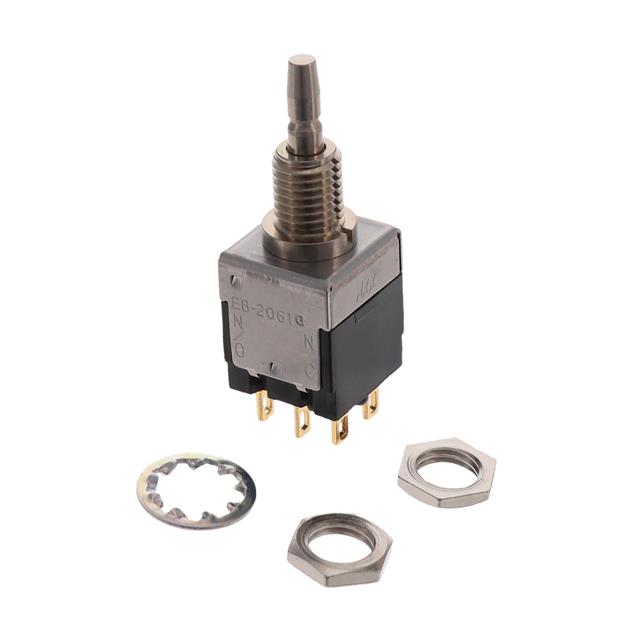

SWITCH PUSHBUTTON DPDT 0.4VA 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

EB2061G

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 0.4VA 28V

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EB2061G

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	DPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Rear
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [diameter]	0.25 in
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

EB2061 Series

Part	Circuit	Type	Voltage Rating - AC	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Current Rating (Amps)	Color - Actuator/Cap	Switch Function	Termination Style	Actuator Marking	Mechanical Life	Electrical Life	Panel Cutout Dimensions [diameter]	Actuator Type	Features	Mounting Type	Voltage Rating - DC	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Illumination Type, Color	Illumination Voltage (Nominal)
NKK Switches EB2061-CG	DPDT	Standard	125 V	-10 °C	158 °F	3 A	Blue	On-Mom	Solder Lug	No Marking	100000 Cycles	25000 Steps	0.25 in	Button Round	Epoxy Sealed Terminals	Panel Mount Rear
NKK Switches EB2061G	DPDT	Standard	28 V	-10 °C	158 °F	0.4 VA		On-Mom	Solder Lug	No Marking	100000 Cycles	50000 Cycles	0.25 in	Plunger for Cap	Epoxy Sealed Terminals	Panel Mount Rear	28 V
NKK Switches EB2061-A-J21A	DPDT	Standard	125 V	-10 °C	158 °F	3 A	Black	On-Mom	Solder Lug	No Marking	100000 Cycles	25000 Steps		Button Square	Epoxy Sealed Terminals	Panel Mount Snap-In		15 mm	12.5 mm
NKK Switches EB2061G-A-J20	DPDT	Standard	28 V	-10 °C	158 °F	0.4 VA	Black	On-Mom	Solder Lug	No Marking	100000 Cycles	50000 Cycles		Button Square	Epoxy Sealed Terminals	Panel Mount Snap-In	28 V	15 mm	12.5 mm
NKK Switches EB2061G-A-J21A	DPDT	Standard	28 V	-10 °C	158 °F	0.4 VA	Black	On-Mom	Solder Lug	No Marking	100000 Cycles	50000 Cycles		Button Square	Epoxy Sealed Terminals	Panel Mount Snap-In	28 V	15 mm	12.5 mm
NKK Switches EB2061-B-J22AC	DPDT	Illuminated Standard	125 V	-10 °C	158 °F	3 A	White	On-Mom	Solder Lug	No Marking	100000 Cycles	25000 Steps		Button Square	Epoxy Sealed Terminals	Panel Mount Snap-In		15 mm	12.5 mm	LED Red	2.8 VDC
NKK Switches EB2061G-BC	DPDT	Standard	28 V	-10 °C	158 °F	0.4 VA	Red	On-Mom	Solder Lug	No Marking	100000 Cycles	50000 Cycles	0.25 in	Button Round	Epoxy Sealed Terminals	Panel Mount Rear	28 V
NKK Switches EB2061-B-J23ACF	DPDT	Illuminated Standard	125 V	-10 °C	158 °F	3 A	White	On-Mom	Solder Lug	No Marking	100000 Cycles	25000 Steps		Button Square	Epoxy Sealed Terminals	Panel Mount Snap-In		18.4 mm	15 mm	Green/Red LED	2 VDC 2.25 VDC
NKK Switches EB2061-E-J43AEF	DPDT	Illuminated Standard	125 V	-10 °C	158 °F	3 A	Yellow	On-Mom	Solder Lug	No Marking	100000 Cycles	25000 Steps		Button Square	Epoxy Sealed Terminals	Panel Mount Snap-In		18.4 mm	15 mm	Green LED Yellow	2.1 VDC 2.25 VDC
NKK Switches EB2061-CB	DPDT	Standard	125 V	-10 °C	158 °F	3 A	White	On-Mom	Solder Lug	No Marking	100000 Cycles	25000 Steps	0.25 in	Button Round	Epoxy Sealed Terminals	Panel Mount Rear
