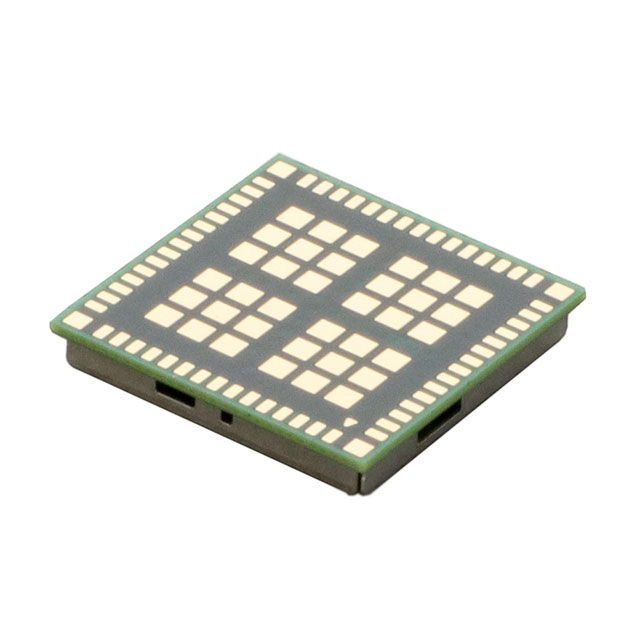

WL1807MODGIMOCR
ActiveWILINK™ 8 INDUSTRIAL DUAL BAND COMBO, 2X2 MIMO WI-FI MODULE 100-QFM -40 TO 85
Deep-Dive with AI
Search across all available documentation for this part.

WL1807MODGIMOCR
ActiveWILINK™ 8 INDUSTRIAL DUAL BAND COMBO, 2X2 MIMO WI-FI MODULE 100-QFM -40 TO 85
Technical Specifications
Parameters and characteristics for this part
Specification | WL1807MODGIMOCR |
---|---|
Current - Receiving | 85 mA |
Current - Transmitting | 510 mA |
Data Rate (Max) [Max] | 54 Mbps |
Frequency | 5 GHz, 2.4 GHz |
GPIO | 7 |
Mounting Type | Surface Mount |
Operating Temperature [Max] | 85 °C |
Operating Temperature [Min] | -40 °C |
Package / Case | 100-SMD Module |
Power - Output | 18.5 dBm |
Protocol | 802.11a/b/g/n, Bluetooth v4.1 |
RF Family/Standard | WiFi, Bluetooth |
Sensitivity | -95 dBm |
Serial Interfaces | UART |
Supplier Device Package | 100-QFM |
Type | TxRx + MCU |
Voltage - Supply [Max] | 4.8 V |
Voltage - Supply [Min] | 2.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
WL1807 Series
WiLink™ 8 industrial dual band combo, 2x2 MIMO Wi-Fi module
Part | Current - Transmitting | Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Serial Interfaces | Operating Temperature [Min] | Operating Temperature [Max] | Power - Output | Current - Receiving | GPIO | RF Family/Standard | Data Rate (Max) [Max] | Mounting Type | Supplier Device Package | Protocol | Package / Case | Frequency | Sensitivity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments WL1807MODGIMOCRThe certified WiLink™ 8 module from TI offers high throughput and extended range along with Wi-Fi ® and Bluetooth ® coexistence (WL1837MOD only) in a power-optimized design. The WL18x7MOD is a Wi-Fi, dual-band, 2.4- and 5-GHz module solution with two antennas supporting industrial temperature grade. The device is FCC, IC, ETSI/CE, and TELEC certified for AP (with DFS support) and client. TI offers drivers for high-level operating systems, such as Linux and Android™. Additional drivers, such as WinCE and RTOS, which includes QNX, Nucleus, ThreadX, and FreeRTOS, are supported through third parties.
The certified WiLink™ 8 module from TI offers high throughput and extended range along with Wi-Fi ® and Bluetooth ® coexistence (WL1837MOD only) in a power-optimized design. The WL18x7MOD is a Wi-Fi, dual-band, 2.4- and 5-GHz module solution with two antennas supporting industrial temperature grade. The device is FCC, IC, ETSI/CE, and TELEC certified for AP (with DFS support) and client. TI offers drivers for high-level operating systems, such as Linux and Android™. Additional drivers, such as WinCE and RTOS, which includes QNX, Nucleus, ThreadX, and FreeRTOS, are supported through third parties. | 510 mA | TxRx + MCU | 2.9 V | 4.8 V | UART | -40 °C | 85 °C | 18.5 dBm | 85 mA | 7 | Bluetooth, WiFi | 54 Mbps | Surface Mount | 100-QFM | 802.11a/b/g/n, Bluetooth v4.1 | 100-SMD Module | 2.4 GHz, 5 GHz | -95 dBm |
Description
General part information
WL1807 Series
The certified WiLink™ 8 module from TI offers high throughput and extended range along with Wi-Fi ® and Bluetooth ® coexistence (WL1837MOD only) in a power-optimized design. The WL18x7MOD is a Wi-Fi, dual-band, 2.4- and 5-GHz module solution with two antennas supporting industrial temperature grade. The device is FCC, IC, ETSI/CE, and TELEC certified for AP (with DFS support) and client. TI offers drivers for high-level operating systems, such as Linux and Android™. Additional drivers, such as WinCE and RTOS, which includes QNX, Nucleus, ThreadX, and FreeRTOS, are supported through third parties.
The certified WiLink™ 8 module from TI offers high throughput and extended range along with Wi-Fi ® and Bluetooth ® coexistence (WL1837MOD only) in a power-optimized design. The WL18x7MOD is a Wi-Fi, dual-band, 2.4- and 5-GHz module solution with two antennas supporting industrial temperature grade. The device is FCC, IC, ETSI/CE, and TELEC certified for AP (with DFS support) and client. TI offers drivers for high-level operating systems, such as Linux and Android™. Additional drivers, such as WinCE and RTOS, which includes QNX, Nucleus, ThreadX, and FreeRTOS, are supported through third parties.
