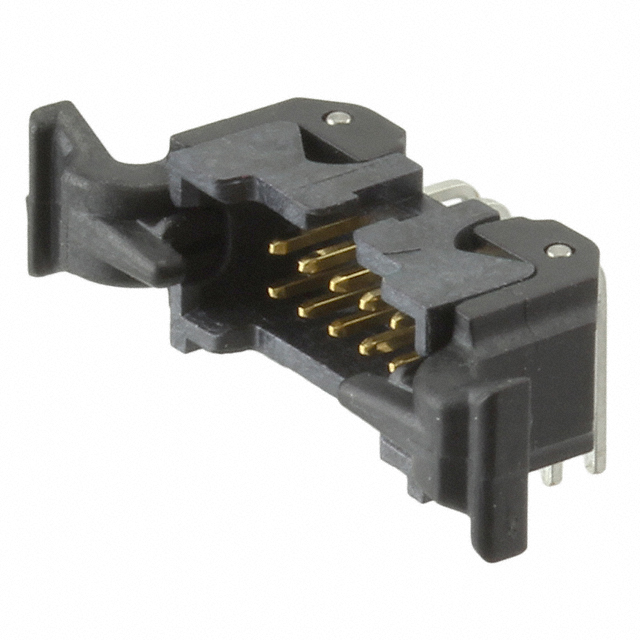

45210-520230

Active

3M (TC)

CONN, R/A HDR, 10POS, 2ROW, 1.27MM, TH ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 451, 452 Series Product Spec

45210-520230

Active

3M (TC)

CONN, R/A HDR, 10POS, 2ROW, 1.27MM, TH ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet 451, 452 Series Product Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	45210-520230

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Post	0.094 in
Contact Length - Post	2.4 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Lock/Eject Hooks, Short
Features	Keying Slot
Insulation Height	5.33 mm
Insulation Height	0.21 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	125 VDC

45210 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Connector Type	Features	Number of Positions Loaded	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Style	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Material	Contact Finish - Mating	Contact Type	Fastening Type	Insulation Height	Insulation Height	Insulation Material	Voltage Rating	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Number of Rows	Contact Shape	Mated Stacking Heights	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
3M (TC) 45210-520200	125 °C	-65 ░C	Shrouded - 4 Wall	Header	Keying Slot	All	Through Hole Right Angle	0.05 in	1.27 mm	Board to Cable/Wire	0.05 in	1.27 mm	10	0.094 in	2.4 mm	UL94 V-0	Flash	Copper Alloy	Gold	Male Pin	Latch Lock/Eject Hooks Short	5.33 mm	0.21 in	Liquid Crystal Polymer (LCP)	125 VDC	Solder	2.54 µm	100 µin	Tin	2	Square
3M (TC) 45210-620200	125 °C	-65 ░C	Shrouded - 4 Wall	Header	Keying Slot	All	Through Hole	0.05 in	1.27 mm	Board to Cable/Wire	0.05 in	1.27 mm	10	0.094 in	2.4 mm	UL94 V-0	Flash	Copper Alloy	Gold	Male Pin	Latch Lock/Eject Hooks Short	5.65 mm	0.222 "	Liquid Crystal Polymer (LCP)	125 VDC	Solder	2.54 µm	100 µin	Tin	2	Square	5.84 mm 6.6 mm 7.21 mm 8.13 mm
3M (TC) 45210-620230	125 °C	-65 ░C	Shrouded - 4 Wall	Header	Keying Slot	All	Through Hole	0.05 in	1.27 mm	Board to Cable/Wire	0.05 in	1.27 mm	10	0.094 in	2.4 mm	UL94 V-0		Copper Alloy	Gold	Male Pin	Latch Lock/Eject Hooks Short	5.65 mm	0.222 "	Liquid Crystal Polymer (LCP)	125 VDC	Solder	5.08 µm	200 µin	Tin	2	Square	5.84 mm 6.6 mm 7.21 mm 8.13 mm	30 Áin	0.76 Ám
3M (TC) 45210-500230	125 °C	-65 ░C	Shrouded - 4 Wall	Header	Keying Slot	All	Through Hole Right Angle	0.05 in	1.27 mm	Board to Cable/Wire	0.05 in	1.27 mm	10	0.094 in	2.4 mm	UL94 V-0		Copper Alloy	Gold	Male Pin	Push-Pull	5.33 mm	0.21 in	Liquid Crystal Polymer (LCP)	125 VDC	Solder	5.08 µm	200 µin	Tin	2	Square		30 Áin	0.76 Ám
3M (TC) 45210-220230	125 °C	-65 ░C	Shrouded - 4 Wall	Header	Keying Slot Pick and Place	All	Surface Mount	0.05 in	1.27 mm	Board to Cable/Wire	0.05 in	1.27 mm	10			UL94 V-0		Copper Alloy	Gold	Male Pin	Latch Lock/Eject Hooks Short	5.65 mm	0.222 "	Liquid Crystal Polymer (LCP)	125 VDC	Solder	5.08 µm	200 µin	Tin	2	Square	5.84 mm 6.6 mm 7.21 mm 8.13 mm	30 Áin	0.76 Ám
3M (TC) 45210-200230	125 °C	-65 ░C	Shrouded - 4 Wall	Header	Keying Slot Pick and Place	All	Surface Mount	0.05 in	1.27 mm	Board to Cable/Wire	0.05 in	1.27 mm	10			UL94 V-0		Copper Alloy	Gold	Male Pin	Push-Pull	5.65 mm	0.222 "	Liquid Crystal Polymer (LCP)	125 VDC	Solder	5.08 µm	200 µin	Tin	2	Square	5.84 mm 6.6 mm 7.21 mm 8.13 mm	30 Áin	0.76 Ám
3M (TC) 45210-600230	125 °C	-65 ░C	Shrouded - 4 Wall	Header	Keying Slot	All	Through Hole	0.05 in	1.27 mm	Board to Cable/Wire	0.05 in	1.27 mm	10	0.094 in	2.4 mm	UL94 V-0		Copper Alloy	Gold	Male Pin	Push-Pull	5.65 mm	0.222 "	Liquid Crystal Polymer (LCP)	125 VDC	Solder	5.08 µm	200 µin	Tin	2	Square	5.84 mm 6.6 mm 7.21 mm 8.13 mm	30 Áin	0.76 Ám
3M (TC) 45210-600200	125 °C	-65 ░C	Shrouded - 4 Wall	Header	Keying Slot	All	Through Hole	0.05 in	1.27 mm	Board to Cable/Wire	0.05 in	1.27 mm	10	0.094 in	2.4 mm	UL94 V-0	Flash	Copper Alloy	Gold	Male Pin	Push-Pull	5.65 mm	0.222 "	Liquid Crystal Polymer (LCP)	125 VDC	Solder	2.54 µm	100 µin	Tin	2	Square	5.84 mm 6.6 mm 7.21 mm 8.13 mm
3M (TC) 45210-520230	125 °C	-65 ░C	Shrouded - 4 Wall	Header	Keying Slot	All	Through Hole Right Angle	0.05 in	1.27 mm	Board to Cable/Wire	0.05 in	1.27 mm	10	0.094 in	2.4 mm	UL94 V-0		Copper Alloy	Gold	Male Pin	Latch Lock/Eject Hooks Short	5.33 mm	0.21 in	Liquid Crystal Polymer (LCP)	125 VDC	Solder	5.08 µm	200 µin	Tin	2	Square		30 Áin	0.76 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 7.56
		10	$ 6.84
		250	$ 5.36
		500	$ 5.04
		1000	$ 4.41
Newark	Each	1	$ 11.02
		10	$ 10.13
		25	$ 9.38
		50	$ 8.69
		100	$ 8.14
		250	$ 7.65
		500	$ 7.20

Description

General part information

45210 Series

Connector Header Through Hole, Right Angle 10 position 0.050" (1.27mm)

Documents

Technical documentation and resources

Datasheet

451, 452 Series Product Spec

Datasheet
