45210-220230

Active

3M (TC)

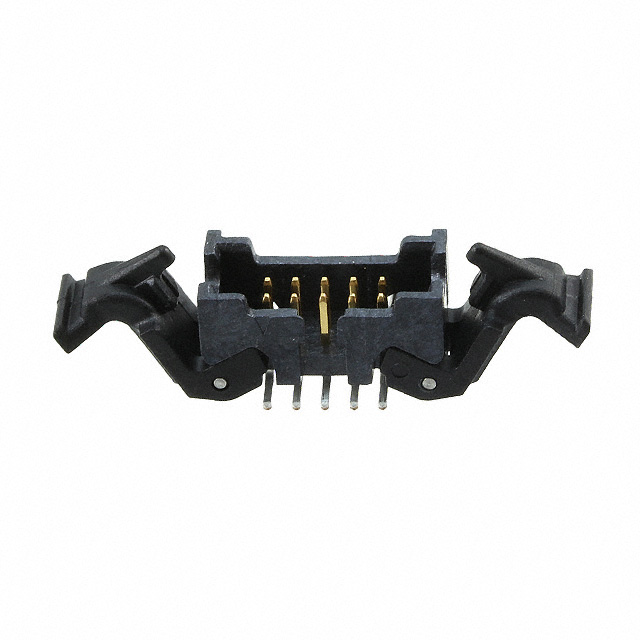

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 1.27 MM, 2 ROWS, 10 CONTACTS, SURFACE MOUNT STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN 451, 452 Series Product Spec +1

45210-220230

Active

3M (TC)

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 1.27 MM, 2 ROWS, 10 CONTACTS, SURFACE MOUNT STRAIGHT

Deep-Dive with AI

DocumentsTechnical Data Sheet EN 451, 452 Series Product Spec +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	45210-220230

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Lock/Eject Hooks, Short
Features	Pick and Place, Keying Slot
Insulation Height	5.65 mm
Insulation Height	0.222 "
Insulation Material	Liquid Crystal Polymer (LCP)
Mated Stacking Heights	8.13 mm, 7.21 mm, 6.6 mm, 5.84 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	125 VDC

45210 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Connector Type	Features	Number of Positions Loaded	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Style	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Material	Contact Finish - Mating	Contact Type	Fastening Type	Insulation Height	Insulation Height	Insulation Material	Voltage Rating	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Number of Rows	Contact Shape	Mated Stacking Heights	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
3M (TC) 45210-520200	125 °C	-65 ░C	Shrouded - 4 Wall	Header	Keying Slot	All	Through Hole Right Angle	0.05 in	1.27 mm	Board to Cable/Wire	0.05 in	1.27 mm	10	0.094 in	2.4 mm	UL94 V-0	Flash	Copper Alloy	Gold	Male Pin	Latch Lock/Eject Hooks Short	5.33 mm	0.21 in	Liquid Crystal Polymer (LCP)	125 VDC	Solder	2.54 µm	100 µin	Tin	2	Square
3M (TC) 45210-620200	125 °C	-65 ░C	Shrouded - 4 Wall	Header	Keying Slot	All	Through Hole	0.05 in	1.27 mm	Board to Cable/Wire	0.05 in	1.27 mm	10	0.094 in	2.4 mm	UL94 V-0	Flash	Copper Alloy	Gold	Male Pin	Latch Lock/Eject Hooks Short	5.65 mm	0.222 "	Liquid Crystal Polymer (LCP)	125 VDC	Solder	2.54 µm	100 µin	Tin	2	Square	5.84 mm 6.6 mm 7.21 mm 8.13 mm
3M (TC) 45210-620230	125 °C	-65 ░C	Shrouded - 4 Wall	Header	Keying Slot	All	Through Hole	0.05 in	1.27 mm	Board to Cable/Wire	0.05 in	1.27 mm	10	0.094 in	2.4 mm	UL94 V-0		Copper Alloy	Gold	Male Pin	Latch Lock/Eject Hooks Short	5.65 mm	0.222 "	Liquid Crystal Polymer (LCP)	125 VDC	Solder	5.08 µm	200 µin	Tin	2	Square	5.84 mm 6.6 mm 7.21 mm 8.13 mm	30 Áin	0.76 Ám
3M (TC) 45210-500230	125 °C	-65 ░C	Shrouded - 4 Wall	Header	Keying Slot	All	Through Hole Right Angle	0.05 in	1.27 mm	Board to Cable/Wire	0.05 in	1.27 mm	10	0.094 in	2.4 mm	UL94 V-0		Copper Alloy	Gold	Male Pin	Push-Pull	5.33 mm	0.21 in	Liquid Crystal Polymer (LCP)	125 VDC	Solder	5.08 µm	200 µin	Tin	2	Square		30 Áin	0.76 Ám
3M (TC) 45210-220230	125 °C	-65 ░C	Shrouded - 4 Wall	Header	Keying Slot Pick and Place	All	Surface Mount	0.05 in	1.27 mm	Board to Cable/Wire	0.05 in	1.27 mm	10			UL94 V-0		Copper Alloy	Gold	Male Pin	Latch Lock/Eject Hooks Short	5.65 mm	0.222 "	Liquid Crystal Polymer (LCP)	125 VDC	Solder	5.08 µm	200 µin	Tin	2	Square	5.84 mm 6.6 mm 7.21 mm 8.13 mm	30 Áin	0.76 Ám
3M (TC) 45210-200230	125 °C	-65 ░C	Shrouded - 4 Wall	Header	Keying Slot Pick and Place	All	Surface Mount	0.05 in	1.27 mm	Board to Cable/Wire	0.05 in	1.27 mm	10			UL94 V-0		Copper Alloy	Gold	Male Pin	Push-Pull	5.65 mm	0.222 "	Liquid Crystal Polymer (LCP)	125 VDC	Solder	5.08 µm	200 µin	Tin	2	Square	5.84 mm 6.6 mm 7.21 mm 8.13 mm	30 Áin	0.76 Ám
3M (TC) 45210-600230	125 °C	-65 ░C	Shrouded - 4 Wall	Header	Keying Slot	All	Through Hole	0.05 in	1.27 mm	Board to Cable/Wire	0.05 in	1.27 mm	10	0.094 in	2.4 mm	UL94 V-0		Copper Alloy	Gold	Male Pin	Push-Pull	5.65 mm	0.222 "	Liquid Crystal Polymer (LCP)	125 VDC	Solder	5.08 µm	200 µin	Tin	2	Square	5.84 mm 6.6 mm 7.21 mm 8.13 mm	30 Áin	0.76 Ám
3M (TC) 45210-600200	125 °C	-65 ░C	Shrouded - 4 Wall	Header	Keying Slot	All	Through Hole	0.05 in	1.27 mm	Board to Cable/Wire	0.05 in	1.27 mm	10	0.094 in	2.4 mm	UL94 V-0	Flash	Copper Alloy	Gold	Male Pin	Push-Pull	5.65 mm	0.222 "	Liquid Crystal Polymer (LCP)	125 VDC	Solder	2.54 µm	100 µin	Tin	2	Square	5.84 mm 6.6 mm 7.21 mm 8.13 mm
3M (TC) 45210-520230	125 °C	-65 ░C	Shrouded - 4 Wall	Header	Keying Slot	All	Through Hole Right Angle	0.05 in	1.27 mm	Board to Cable/Wire	0.05 in	1.27 mm	10	0.094 in	2.4 mm	UL94 V-0		Copper Alloy	Gold	Male Pin	Latch Lock/Eject Hooks Short	5.33 mm	0.21 in	Liquid Crystal Polymer (LCP)	125 VDC	Solder	5.08 µm	200 µin	Tin	2	Square		30 Áin	0.76 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 9.67
		10	$ 8.71
		100	$ 7.78
	Digi-Reel®	1	$ 9.67
		10	$ 8.71
		100	$ 7.78
	Tape & Reel (TR)	500	$ 6.52
		1000	$ 5.76
		1500	$ 5.59
Newark	Each	100	$ 6.90

Description

General part information

45210 Series

Connector Header Surface Mount 10 position 0.050" (1.27mm)

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet

451, 452 Series Product Spec

Datasheet
