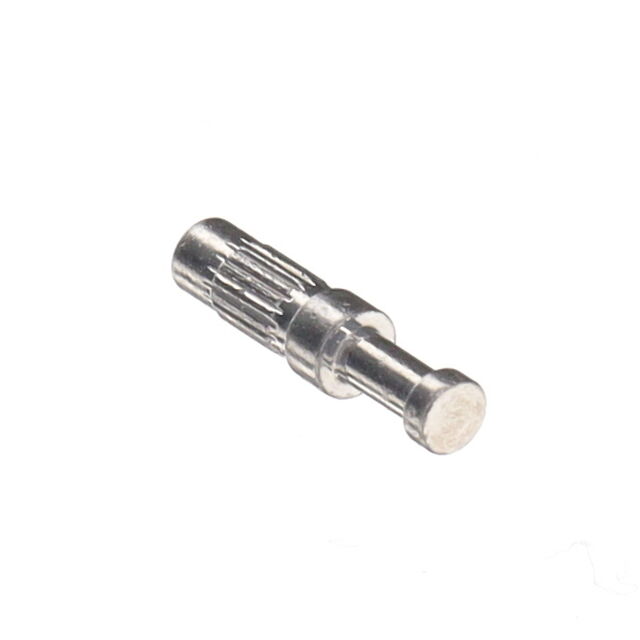

TERM TURRET SINGLE L=3.43MM

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

TERM TURRET SINGLE L=3.43MM

Technical Specifications

Parameters and characteristics for this part

Specification	2101-3-00-50-00-00-07-0

Board Thickness [Max] [custom]	0.094 "
Board Thickness [Max] [custom]	2.39 mm
Board Thickness [Min] [custom]	0.062 "
Board Thickness [Min] [custom]	1.57 mm
Contact Finish	Tin-Lead
Contact Finish Thickness	300 µin
Contact Finish Thickness	7.62 µm
Contact Material	Brass Alloy
Diameter - Turret Head [diameter]	0.053 in
Diameter - Turret Head [diameter]	1.35 mm
Flange Diameter [diameter]	1.6 mm
Flange Diameter [diameter]	0.063 in
Insulation	Non-Insulated
Length - Above Board	3.43 mm
Length - Above Board	0.135 in
Length - Below Flange [x]	3.3 mm
Length - Below Flange [x]	0.13 in
Length - Overall [x]	6.73 mm
Length - Overall [x]	0.265 "
Mounting Hole Diameter [diameter]	0.053 in
Mounting Hole Diameter [diameter]	1.35 mm
Mounting Type	Through Hole
Number of Turrets	Single
Terminal Type	Single End
Termination	Knurled, Press-Fit

Part	Length - Overall [x]	Length - Overall [x]	Terminal Type	Length - Below Flange [x]	Length - Below Flange [x]	Contact Finish Thickness	Contact Finish Thickness	Diameter - Turret Head [diameter]	Diameter - Turret Head [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Above Board	Length - Above Board	Mounting Type	Number of Turrets	Board Thickness [Max] [custom]	Board Thickness [Min] [custom]	Board Thickness [Max] [custom]	Board Thickness [Min] [custom]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Material	Insulation	Contact Finish	Termination
Mill-Max Manufacturing Corp. 2101-3-00-01-00-00-07-0	6.73 mm	0.265 "	Single End	3.3 mm	0.13 in	200 Áin	5.08 Ám	0.053 in	1.35 mm	0.053 in	1.35 mm	3.43 mm	0.135 in	Through Hole	Single	0.094 "	0.062 "	2.39 mm	1.57 mm	1.6 mm	0.063 in	Brass Alloy	Non-Insulated	Tin-Lead	Knurled Press-Fit
Mill-Max Manufacturing Corp. 2101-3-00-50-00-00-07-0	6.73 mm	0.265 "	Single End	3.3 mm	0.13 in	300 µin	7.62 µm	0.053 in	1.35 mm	0.053 in	1.35 mm	3.43 mm	0.135 in	Through Hole	Single	0.094 "	0.062 "	2.39 mm	1.57 mm	1.6 mm	0.063 in	Brass Alloy	Non-Insulated	Tin-Lead	Knurled Press-Fit
Mill-Max Manufacturing Corp. 2101-3-00-44-00-00-07-0	6.73 mm	0.265 "	Single End	3.3 mm	0.13 in	300 µin	7.62 µm	0.053 in	1.35 mm	0.053 in	1.35 mm	3.43 mm	0.135 in	Through Hole	Single	0.094 "	0.062 "	2.39 mm	1.57 mm	1.6 mm	0.063 in	Brass Alloy	Non-Insulated	Silver	Knurled Press-Fit
