2101-3-00-44-00-00-07-0
ActiveMill-Max Manufacturing Corp.

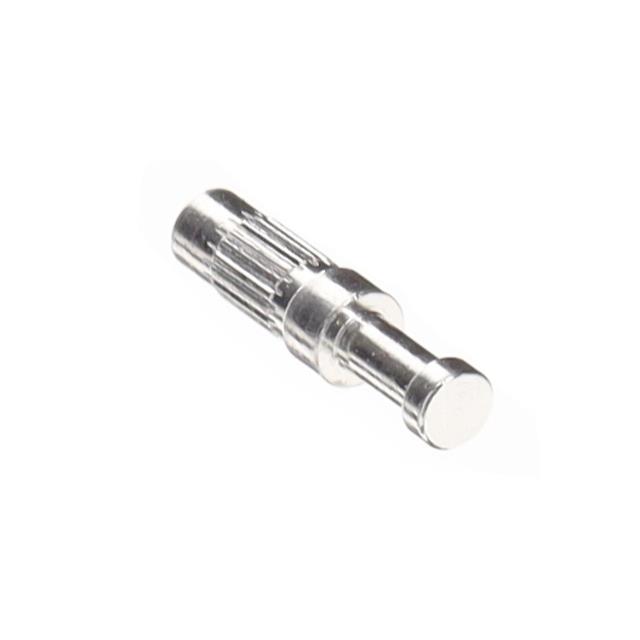

TERM TURRET SINGLE L=3.43MM
Deep-Dive with AI
Search across all available documentation for this part.
2101-3-00-44-00-00-07-0
ActiveMill-Max Manufacturing Corp.
TERM TURRET SINGLE L=3.43MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2101-3-00-44-00-00-07-0 |
|---|---|
| Board Thickness [Max] [custom] | 0.094 " |
| Board Thickness [Max] [custom] | 2.39 mm |
| Board Thickness [Min] [custom] | 0.062 " |
| Board Thickness [Min] [custom] | 1.57 mm |
| Contact Finish | Silver |
| Contact Finish Thickness | 300 µin |
| Contact Finish Thickness | 7.62 µm |
| Contact Material | Brass Alloy |
| Diameter - Turret Head [diameter] | 0.053 in |
| Diameter - Turret Head [diameter] | 1.35 mm |
| Flange Diameter [diameter] | 1.6 mm |
| Flange Diameter [diameter] | 0.063 in |
| Insulation | Non-Insulated |
| Length - Above Board | 3.43 mm |
| Length - Above Board | 0.135 in |
| Length - Below Flange [x] | 3.3 mm |
| Length - Below Flange [x] | 0.13 in |
| Length - Overall [x] | 6.73 mm |
| Length - Overall [x] | 0.265 " |
| Mounting Hole Diameter [diameter] | 0.053 in |
| Mounting Hole Diameter [diameter] | 1.35 mm |
| Mounting Type | Through Hole |
| Number of Turrets | Single |
| Terminal Type | Single End |
| Termination | Knurled, Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.74 | |
| 10 | $ 0.63 | |||
| 100 | $ 0.56 | |||
| 1000 | $ 0.41 | |||
| 5000 | $ 0.36 | |||
| 10000 | $ 0.34 | |||
Description
General part information
2101-3 Series
Terminal Turret Connector Single End 0.135" (3.43mm) Silver
