TC-240-SM-RA-SS-D

Active

Amphenol Times Microwave Systems

SMA-MALE (PLUG) CRIMP RIGHT ANGL

Deep-Dive with AI

Search across all available documentation for this part.

TC-240-SM-RA-SS-D

Active

Amphenol Times Microwave Systems

SMA-MALE (PLUG) CRIMP RIGHT ANGL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 25.71
		10	$ 19.83
		25	$ 17.96
		50	$ 16.69
		100	$ 15.55
		250	$ 14.19
		500	$ 13.29

Description

General part information

TC-240 Series

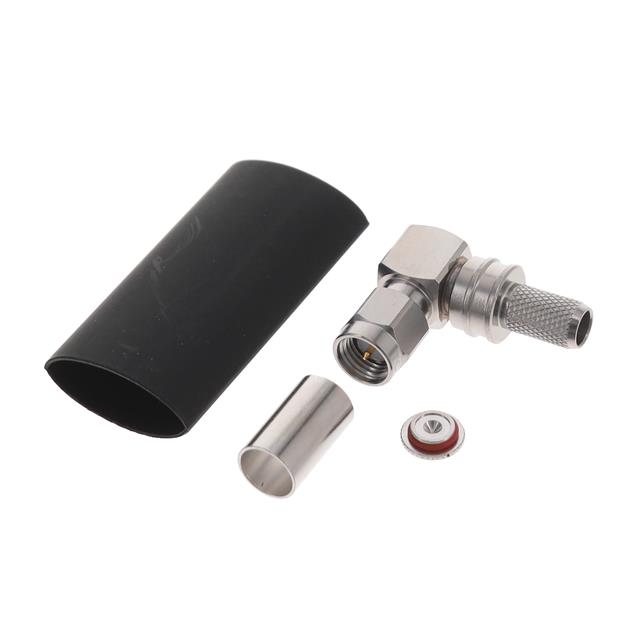

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TC-240-SM-RA-SS-D	TC-240 Series

Body Finish	-	White Bronze, Silver, Nickel
Body Material	Stainless Steel	Brass, Beryllium Copper, Stainless Steel
Cable Group	LMR-240	LMR-240, LMR-240-75
Center Contact Material	Brass	Brass, Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	SMA	FME, BNC, N Type, RP-SMA, F Type, 4.3/10, SMA, 7/16 DIN
Connector Type	Male Pin, Plug	Male Pin, Plug, Female Socket, Jack
Contact Termination	Solder	Solder, Push On
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	-	Bayonet Lock
Frequency - Max [Max]	6000 MHz	1 - 6000 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 - 75 Ohms
Includes	-	1 Ferrule, 1 Connector, 1 Contact, 1 Heat Shrink, 1 Insulator
Ingress Protection	-	IP67 - Dust Tight, Waterproof
Insertion Loss	-	0.05 - 0.1 dB
Mating Cycles	500	500
Mounting Feature	-	Flange, Bulkhead - Front Side Nut
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	125 °C	85 - 165 °C
Operating Temperature [Min]	-40 °C	-65 - -40 °C
Shield Termination	Crimp	Crimp, Clamp
Voltage Rating	-	500 V

TC-240 Series

FME MALE (PLUG) CRIMP CONNECTOR,

Part	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Center Contact Plating	Includes	Body Finish	Cable Group	Contact Termination	Mounting Type	Shield Termination	Body Material	Center Contact Material	Housing Color	Frequency - Max [Max]	Impedance	Connector Style	Mating Cycles	Voltage Rating	Dielectric Material	Insertion Loss	Fastening Type	Mounting Feature
Amphenol Times Microwave Systems TC-240-FMEM-X	1	-55 °C	125 °C	Male Pin, Plug	Gold	1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Insulator	White Bronze	LMR-240	Solder	Free Hanging (In-Line)	Crimp	Brass	Brass	Silver	2 GHz	50 Ohms	FME	500	500 V	Polytetrafluoroethylene (PTFE)
Amphenol Times Microwave Systems TC-240-BMC	1	-40 °C	85 °C	Male Pin, Plug	Gold		Silver	LMR-240	Solder	Free Hanging (In-Line)	Clamp	Beryllium Copper, Brass	Brass	Silver	1 GHz, 2.5 GHz	50 Ohms	BNC	500	500 V	Polytetrafluoroethylene (PTFE)	0.1 dB	Bayonet Lock
Amphenol Times Microwave Systems TC-240-NM-75	1	-40 °C	85 °C	Male Pin, Plug	Gold		Nickel	LMR-240-75	Solder	Free Hanging (In-Line)	Crimp	Brass	Brass	Silver	2 GHz	75 Ohms	N Type		500 V	Polytetrafluoroethylene (PTFE)
Amphenol Times Microwave Systems TC-240-BM-75-X	1	-55 °C	125 °C	Male Pin, Plug	Gold		White Bronze	LMR-240-75	Solder	Free Hanging (In-Line)	Crimp	Brass	Brass	Silver	4 GHz	75 Ohms	BNC	500	500 V	Polytetrafluoroethylene (PTFE)		Bayonet Lock
Amphenol Times Microwave Systems TC-240-SM-RP	1	-40 °C	85 °C	Female Socket, Plug	Gold			LMR-240	Solder	Free Hanging (In-Line)	Crimp	Stainless Steel	Beryllium Copper	Silver	2.5 GHz	50 Ohms	RP-SMA
Amphenol Times Microwave Systems TC-240-NF-PM-X	1	-65 ░C	165 °C	Female Socket, Jack	Gold		White Bronze	LMR-240	Solder		Crimp	Brass	Beryllium Copper, Brass	Silver	6000 MHz	50 Ohms	N Type			Polytetrafluoroethylene (PTFE)			Flange
Amphenol Times Microwave Systems TC-240-FM-X	1	-65 ░C	165 °C	Male Pin, Plug	Gold		White Bronze	LMR-240	Solder	Free Hanging (In-Line)	Crimp	Brass	Beryllium Copper	Silver	2 GHz	50 Ohms	F Type			Polytetrafluoroethylene (PTFE)
Amphenol Times Microwave Systems TC-240-4310M-X	1	-40 °C	125 °C	Male Pin, Plug	Gold		White Bronze	LMR-240	Solder	Free Hanging (In-Line)	Crimp	Brass	Brass	Silver	6000 MHz	50 Ohms	4.3/10	500		Polytetrafluoroethylene (PTFE)
Amphenol Times Microwave Systems TC-240-SM-RA-SS-D	1	-40 °C	125 °C	Male Pin, Plug	Gold			LMR-240	Solder	Free Hanging (In-Line), Right Angle	Crimp	Stainless Steel	Brass	Silver	6000 MHz	50 Ohms	SMA	500		Polytetrafluoroethylene (PTFE)
Amphenol Times Microwave Systems TC-240-NMC	1	-65 ░C	165 °C	Male Pin, Plug	Gold		Silver	LMR-240	Solder	Free Hanging (In-Line)	Clamp	Brass	Brass	Silver	11 GHz	50 Ohms	N Type			Polytetrafluoroethylene (PTFE)
