TC-240-SM-RP

Active

Amphenol Times Microwave Systems

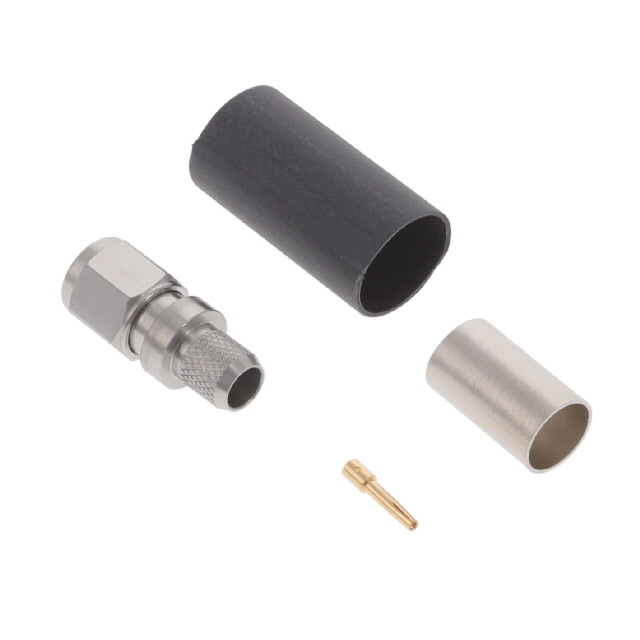

SMA-MALE (PLUG) CRIMP/REVERSE PO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TC-240-SM-RP

Active

Amphenol Times Microwave Systems

SMA-MALE (PLUG) CRIMP/REVERSE PO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 29.46
		10	$ 22.73
		25	$ 20.60
		50	$ 19.15
		100	$ 17.84
		250	$ 16.30
		500	$ 15.27

Description

General part information

TC-240 Series

RP-SMA Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Solder

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TC-240-SM-RP	TC-240 Series

Body Finish	-	White Bronze, Silver, Nickel
Body Material	Stainless Steel	Brass, Beryllium Copper, Stainless Steel
Cable Group	LMR-240	LMR-240, LMR-240-75
Center Contact Material	Beryllium Copper	Brass, Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	RP-SMA	FME, BNC, N Type, RP-SMA, F Type, 4.3/10, SMA, 7/16 DIN
Connector Type	Plug, Female Socket	Male Pin, Plug, Female Socket, Jack
Contact Termination	Solder	Solder, Push On
Dielectric Material	-	Polytetrafluoroethylene (PTFE)
Fastening Type	-	Bayonet Lock
Frequency - Max [Max]	2.5 GHz	1 - 6000 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 - 75 Ohms
Includes	-	1 Ferrule, 1 Connector, 1 Contact, 1 Heat Shrink, 1 Insulator
Ingress Protection	-	IP67 - Dust Tight, Waterproof
Insertion Loss	-	0.05 - 0.1 dB
Mating Cycles	-	500
Mounting Feature	-	Flange, Bulkhead - Front Side Nut
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	85 °C	85 - 165 °C
Operating Temperature [Min]	-40 °C	-65 - -40 °C
Shield Termination	Crimp	Crimp, Clamp
Voltage Rating	-	500 V

TC-240 Series

FME MALE (PLUG) CRIMP CONNECTOR,

Part	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Center Contact Plating	Includes	Body Finish	Cable Group	Contact Termination	Mounting Type	Shield Termination	Body Material	Center Contact Material	Housing Color	Frequency - Max [Max]	Impedance	Connector Style	Mating Cycles	Voltage Rating	Dielectric Material	Insertion Loss	Fastening Type	Mounting Feature
Amphenol Times Microwave Systems TC-240-FMEM-X	1	-55 °C	125 °C	Male Pin, Plug	Gold	1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Insulator	White Bronze	LMR-240	Solder	Free Hanging (In-Line)	Crimp	Brass	Brass	Silver	2 GHz	50 Ohms	FME	500	500 V	Polytetrafluoroethylene (PTFE)
Amphenol Times Microwave Systems TC-240-BMC	1	-40 °C	85 °C	Male Pin, Plug	Gold		Silver	LMR-240	Solder	Free Hanging (In-Line)	Clamp	Beryllium Copper, Brass	Brass	Silver	1 GHz, 2.5 GHz	50 Ohms	BNC	500	500 V	Polytetrafluoroethylene (PTFE)	0.1 dB	Bayonet Lock
Amphenol Times Microwave Systems TC-240-NM-75	1	-40 °C	85 °C	Male Pin, Plug	Gold		Nickel	LMR-240-75	Solder	Free Hanging (In-Line)	Crimp	Brass	Brass	Silver	2 GHz	75 Ohms	N Type		500 V	Polytetrafluoroethylene (PTFE)
Amphenol Times Microwave Systems TC-240-BM-75-X	1	-55 °C	125 °C	Male Pin, Plug	Gold		White Bronze	LMR-240-75	Solder	Free Hanging (In-Line)	Crimp	Brass	Brass	Silver	4 GHz	75 Ohms	BNC	500	500 V	Polytetrafluoroethylene (PTFE)		Bayonet Lock
Amphenol Times Microwave Systems TC-240-SM-RP	1	-40 °C	85 °C	Female Socket, Plug	Gold			LMR-240	Solder	Free Hanging (In-Line)	Crimp	Stainless Steel	Beryllium Copper	Silver	2.5 GHz	50 Ohms	RP-SMA
Amphenol Times Microwave Systems TC-240-NF-PM-X	1	-65 ░C	165 °C	Female Socket, Jack	Gold		White Bronze	LMR-240	Solder		Crimp	Brass	Beryllium Copper, Brass	Silver	6000 MHz	50 Ohms	N Type			Polytetrafluoroethylene (PTFE)			Flange
Amphenol Times Microwave Systems TC-240-FM-X	1	-65 ░C	165 °C	Male Pin, Plug	Gold		White Bronze	LMR-240	Solder	Free Hanging (In-Line)	Crimp	Brass	Beryllium Copper	Silver	2 GHz	50 Ohms	F Type			Polytetrafluoroethylene (PTFE)
Amphenol Times Microwave Systems TC-240-4310M-X	1	-40 °C	125 °C	Male Pin, Plug	Gold		White Bronze	LMR-240	Solder	Free Hanging (In-Line)	Crimp	Brass	Brass	Silver	6000 MHz	50 Ohms	4.3/10	500		Polytetrafluoroethylene (PTFE)
Amphenol Times Microwave Systems TC-240-SM-RA-SS-D	1	-40 °C	125 °C	Male Pin, Plug	Gold			LMR-240	Solder	Free Hanging (In-Line), Right Angle	Crimp	Stainless Steel	Brass	Silver	6000 MHz	50 Ohms	SMA	500		Polytetrafluoroethylene (PTFE)
Amphenol Times Microwave Systems TC-240-NMC	1	-65 ░C	165 °C	Male Pin, Plug	Gold		Silver	LMR-240	Solder	Free Hanging (In-Line)	Clamp	Brass	Brass	Silver	11 GHz	50 Ohms	N Type			Polytetrafluoroethylene (PTFE)
