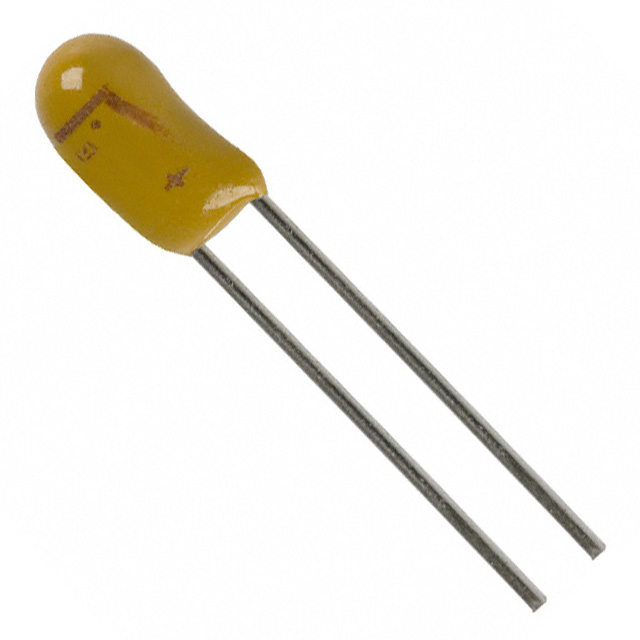

T350B684K050AS

Active

KEMET

CAP TANT 0.68UF 10% 50V RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP TANT 0.68UF 10% 50V RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	T350B684K050AS

Capacitance	680 nF
ESR (Equivalent Series Resistance)	10 Ohm
Features	General Purpose
Height - Seated (Max) [Max] [z]	0.299 in
Height - Seated (Max) [Max] [z]	7.6 mm
Lead Spacing	0.1 in
Lead Spacing	2.54 mm
Manufacturer Size Code	B
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [diameter]	0.177 "
Size / Dimension [diameter]	4.5 mm
Tolerance	10 %
Type	Conformal Coated
Voltage - Rated	50 VDC

Part	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Features	Manufacturer Size Code	Type	Package / Case	Lead Spacing	Lead Spacing	ESR (Equivalent Series Resistance)	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET T350B225M025AT	Through Hole	0.175 in	4.45 mm	25 VDC	General Purpose	B	Conformal Coated	Radial	0.1 in	2.54 mm	6 Ohms	-55 °C	125 °C	2.2 µF	20 %	0.3 in	7.62 mm
KEMET T350B684K050AS	Through Hole	0.177 "	4.5 mm	50 VDC	General Purpose	B	Conformal Coated	Radial	0.1 in	2.54 mm	10 Ohm	-55 °C	125 °C	680 nF	10 %			0.299 in	7.6 mm
KEMET T350B474K050AT	Through Hole	0.177 "	4.5 mm	50 VDC	General Purpose	B	Conformal Coated	Radial	0.1 in	2.54 mm	13 Ohm	-55 °C	125 °C	0.47 µF	10 %			0.299 in	7.6 mm
KEMET T350B105K050AT	Through Hole	0.177 "	4.5 mm	50 VDC	General Purpose	B	Conformal Coated	Radial	0.1 in	2.54 mm	8 Ohm	-55 °C	125 °C	1 µF	10 %			0.299 in	7.6 mm
KEMET T350B474K050AS	Through Hole	0.177 "	4.5 mm	50 VDC	General Purpose	B	Conformal Coated	Radial	0.1 in	2.54 mm	13 Ohm	-55 °C	125 °C	0.47 µF	10 %			0.299 in	7.6 mm
KEMET T350B225K025AS7301	Through Hole	0.177 "	4.5 mm	25 VDC	General Purpose	B	Conformal Coated	Radial	0.1 in	2.54 mm	6 Ohms	-55 °C	125 °C	2.2 µF	10 %			0.299 in	7.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.51
