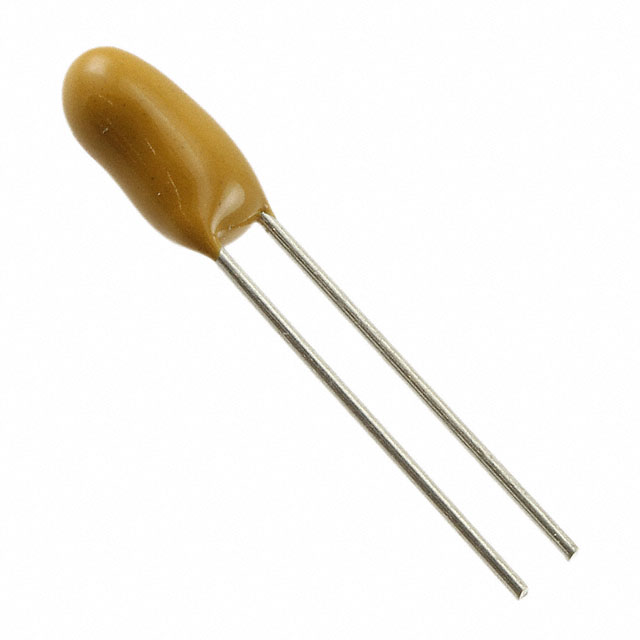

T350B225M025AT

Active

KEMET

TANTALUM CAPACITOR, POLARIZED, TANTALUM (DRY/SOLID), 25V, 20% +TOL, 20% -TOL, 2.2UF, THROUGH HOLE MOUNT, RADIAL LEADED

Search across all available documentation for this part.

Active

KEMET

TANTALUM CAPACITOR, POLARIZED, TANTALUM (DRY/SOLID), 25V, 20% +TOL, 20% -TOL, 2.2UF, THROUGH HOLE MOUNT, RADIAL LEADED

Technical Specifications

Parameters and characteristics for this part

Specification	T350B225M025AT

Capacitance	2.2 µF
ESR (Equivalent Series Resistance)	6 Ohms
Features	General Purpose
Height - Seated (Max) [Max]	0.3 in
Height - Seated (Max) [Max]	7.62 mm
Lead Spacing	0.1 in
Lead Spacing	2.54 mm
Manufacturer Size Code	B
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [diameter]	0.175 in
Size / Dimension [diameter]	4.45 mm
Tolerance	20 %
Type	Conformal Coated
Voltage - Rated	25 VDC

Part	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Features	Manufacturer Size Code	Type	Package / Case	Lead Spacing	Lead Spacing	ESR (Equivalent Series Resistance)	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET T350B225M025AT	Through Hole	0.175 in	4.45 mm	25 VDC	General Purpose	B	Conformal Coated	Radial	0.1 in	2.54 mm	6 Ohms	-55 °C	125 °C	2.2 µF	20 %	0.3 in	7.62 mm
KEMET T350B684K050AS	Through Hole	0.177 "	4.5 mm	50 VDC	General Purpose	B	Conformal Coated	Radial	0.1 in	2.54 mm	10 Ohm	-55 °C	125 °C	680 nF	10 %			0.299 in	7.6 mm
KEMET T350B474K050AT	Through Hole	0.177 "	4.5 mm	50 VDC	General Purpose	B	Conformal Coated	Radial	0.1 in	2.54 mm	13 Ohm	-55 °C	125 °C	0.47 µF	10 %			0.299 in	7.6 mm
KEMET T350B105K050AT	Through Hole	0.177 "	4.5 mm	50 VDC	General Purpose	B	Conformal Coated	Radial	0.1 in	2.54 mm	8 Ohm	-55 °C	125 °C	1 µF	10 %			0.299 in	7.6 mm
KEMET T350B474K050AS	Through Hole	0.177 "	4.5 mm	50 VDC	General Purpose	B	Conformal Coated	Radial	0.1 in	2.54 mm	13 Ohm	-55 °C	125 °C	0.47 µF	10 %			0.299 in	7.6 mm
KEMET T350B225K025AS7301	Through Hole	0.177 "	4.5 mm	25 VDC	General Purpose	B	Conformal Coated	Radial	0.1 in	2.54 mm	6 Ohms	-55 °C	125 °C	2.2 µF	10 %			0.299 in	7.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.2 µF Conformal Coated Tantalum Capacitors 25 V Radial 6Ohm
